Name: Engine Mounting (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)
Rating: 5.0 (1 reviews)

View All

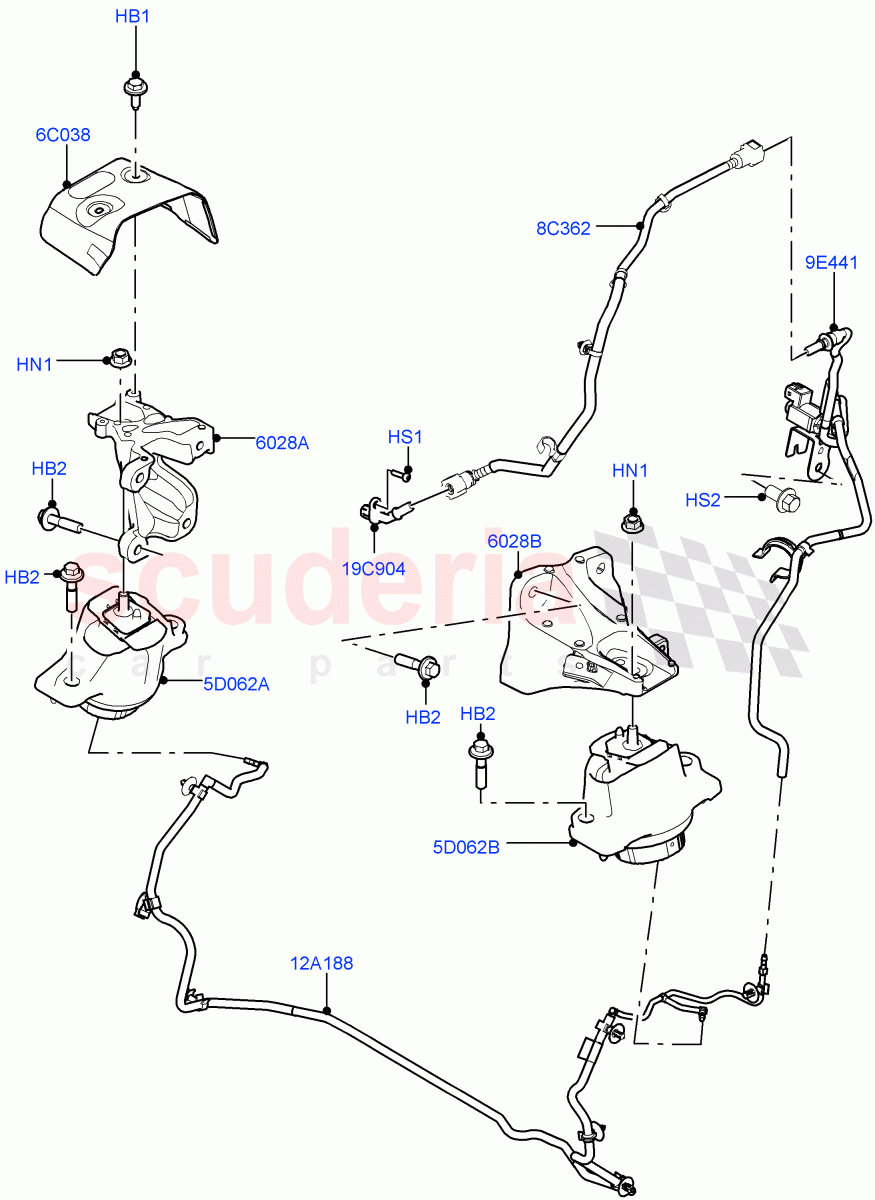

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR141396	BOLT	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011068	BOLT	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090497	NUT	$1.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106146	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126182	BRACKET - ENGINE FRONT SUPPORT	$195.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141407	BRACKET - ENGINE FRONT SUPPORT	$71.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141395	HEAT SHIELD	$22.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141649	HOSE - VACUUM	$50.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141399	SOLENOID - VACUUM CONTROL	$317.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141397	HOSE - VACUUM	$144.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148201	CONNECTOR - VACUUM TUBE	$53.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141381	BRACKET - ENGINE MOUNTING	$186.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141387	BRACKET - ENGINE MOUNTING	$198.33	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR141396	BOLT	LR141396 BOLT Hexagonal Head, M6X18 / From: MA000001	$1.48	2
HB2	LR011068	BOLT	LR011068 BOLT Bolt And Washer, M10 X 45 / From: MA000001	$2.77	12
HN1	LR090497	NUT	LR090497 NUT M10 / From: MA000001	$1.71	2
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: MA000001	$1.43	1
HS2	FS106146	SCREW	FS106146 SCREW Hexagonal Head, M6 X 14MM / From: MA000001	$0.47	1
5D062A	LR141381	BRACKET - ENGINE MOUNTING	LR141381 BRACKET - ENGINE MOUNTING RH / From: MA000001	$186.23	1
5D062B	LR141387	BRACKET - ENGINE MOUNTING	LR141387 BRACKET - ENGINE MOUNTING LH / From: MA000001	$198.33	1
6C038	LR141395	HEAT SHIELD	LR141395 HEAT SHIELD RH / From: MA000001	$22.14	1
8C362	LR141649	HOSE - VACUUM	LR141649 HOSE - VACUUM To Vacuum Pump / From: MA000001	$50.28	1
9E441	LR141399	SOLENOID - VACUUM CONTROL	LR141399 SOLENOID - VACUUM CONTROL From: MA000001	$317.74	1
12A188	LR141397	HOSE - VACUUM	LR141397 HOSE - VACUUM From: MA000001	$144.20	1
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE Cylinder Block, Pump - Vacuum / From: MA000001	$53.85	1
6028A	LR126182	BRACKET - ENGINE FRONT SUPPORT	LR126182 BRACKET - ENGINE FRONT SUPPORT RH / From: MA000001	$195.05	1
6028B	LR141407	BRACKET - ENGINE FRONT SUPPORT	LR141407 BRACKET - ENGINE FRONT SUPPORT LH / From: MA000001	$71.80	1

Engine Mounting (2.0L Aj200P Hi Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
