Name: Engine Mounting (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

View All

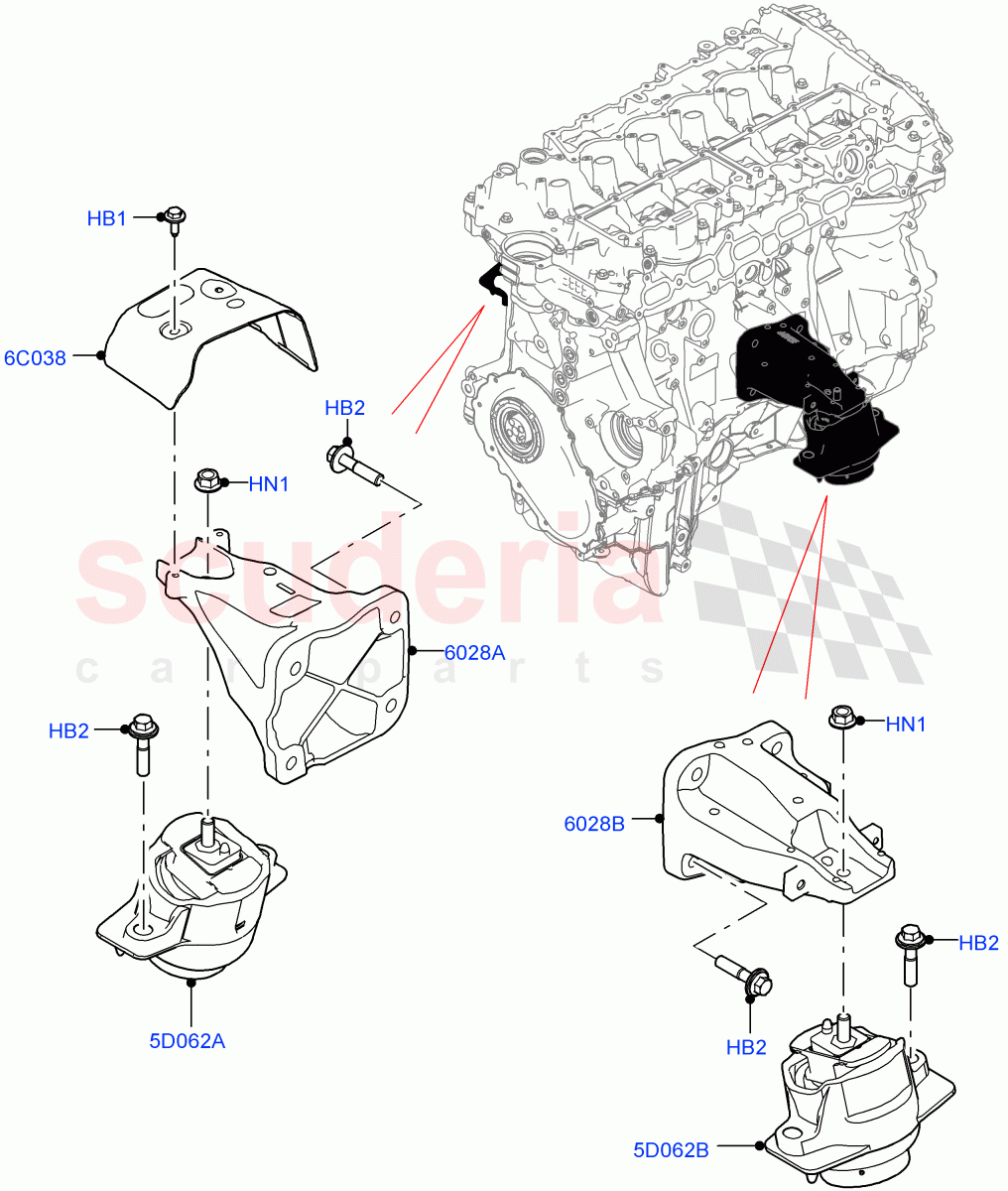

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR141396	BOLT	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011068	BOLT	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090497	NUT	$1.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149531	BRACKET - ENGINE FRONT SUPPORT	$83.55	To Order
	LR170106	BRACKET - ENGINE FRONT SUPPORT	$70.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149526	BRACKET - ENGINE FRONT SUPPORT	$71.80	To Order
	LR170109	BRACKET - ENGINE FRONT SUPPORT	$69.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141395	HEAT SHIELD	$22.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141379	BRACKET - ENGINE MOUNTING	$197.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141384	BRACKET - ENGINE MOUNTING	$196.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR141396	BOLT	LR141396 BOLT Hexagonal Head, M6X18 / From: MA000001	$1.48	2
HB2	LR011068	BOLT	LR011068 BOLT Bolt And Washer, M10 X 45 / From: MA000001	$2.77	10
HN1	LR090497	NUT	LR090497 NUT M10 / From: MA000001	$1.71	2
5D062A	LR141379	BRACKET - ENGINE MOUNTING	LR141379 BRACKET - ENGINE MOUNTING RH / From: MA000001	$197.97	1
5D062B	LR141384	BRACKET - ENGINE MOUNTING	LR141384 BRACKET - ENGINE MOUNTING LH / From: MA000001	$196.11	1
6C038	LR141395	HEAT SHIELD	LR141395 HEAT SHIELD RH / From: MA000001	$22.14	1
6028A	LR149531	BRACKET - ENGINE FRONT SUPPORT	LR149531 BRACKET - ENGINE FRONT SUPPORT RH / From: MA000001 / To: MA328308	$83.55	1
6028A	LR170106	BRACKET - ENGINE FRONT SUPPORT	LR170106 BRACKET - ENGINE FRONT SUPPORT RH / From: MA328309	$70.61	1
6028B	LR149526	BRACKET - ENGINE FRONT SUPPORT	LR149526 BRACKET - ENGINE FRONT SUPPORT LH / From: MA000001 / To: NA329302	$71.80	1
6028B	LR170109	BRACKET - ENGINE FRONT SUPPORT	LR170109 BRACKET - ENGINE FRONT SUPPORT LH / From: NA329303	$69.01	1

Engine Mounting (3.0L Aj20P6 Petrol High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
