Side Panels - Inner (Wheelarch)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Side Panels - Inner (Wheelarch)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.43 To Order
LR033697 CLIP - PUSH ON STEEL $1.43 To Order
LR108386 CLIP - PUSH ON STEEL $1.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR091858 INSULATOR - QUARTER PANEL $22.96 To Order
LR091859 INSULATOR - QUARTER PANEL $22.96 To Order
Photo Part No Description Price (each) Stock
LR092642 INSULATOR - FOAM PAD $29.23 To Order
LR092634 INSULATOR - FOAM PAD $28.24 To Order
Photo Part No Description Price (each) Stock
LR092632 SHIELD - SPLASH - WHEELHOUSE $177.56 To Order
LR092633 SHIELD - SPLASH - WHEELHOUSE $177.56 To Order
LR137568 SHIELD - SPLASH - WHEELHOUSE $185.81 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091741 GASKET - FILLER PIPE $55.93 To Order
LR109349 GASKET - FILLER PIPE $55.93 To Order
LR125848 GASKET - FILLER PIPE $55.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044969 SEAL - "D" POST $12.35 To Order
LR044970 SEAL - "D" POST $11.99 To Order
Photo Part No Description Price (each) Stock
LR102683 FOAM - SEALING $11.80 To Order
LR102682 FOAM - SEALING $11.80 To Order
Photo Part No Description Price (each) Stock
LR091748 INSULATOR - QUARTER PANEL $32.51 To Order
LR091749 INSULATOR - QUARTER PANEL $32.51 To Order
Photo Part No Description Price (each) Stock
LR091777 INSULATOR - QUARTER PANEL $22.96 To Order
LR091778 INSULATOR - QUARTER PANEL $22.96 To Order
Photo Part No Description Price (each) Stock
LR091860 INSULATOR - QUARTER PANEL $19.81 To Order
LR091861 INSULATOR - QUARTER PANEL $19.81 To Order
Photo Part No Description Price (each) Stock
LR091762 INSULATOR - REAR QUARTER PANEL $24.51 To Order
LR091761 INSULATOR - REAR QUARTER PANEL $24.51 To Order
Photo Part No Description Price (each) Stock
LR091337 INSULATOR - QUARTER PANEL $25.46 To Order
LR091338 INSULATOR - QUARTER PANEL $24.32 To Order
Photo Part No Description Price (each) Stock
LR092783 INSULATOR - QUARTER PANEL $19.07 To Order
LR092784 INSULATOR - QUARTER PANEL $19.07 To Order
Photo Part No Description Price (each) Stock
LR112473 INSULATOR $27.18 To Order
LR112476 INSULATOR $27.18 To Order
View All

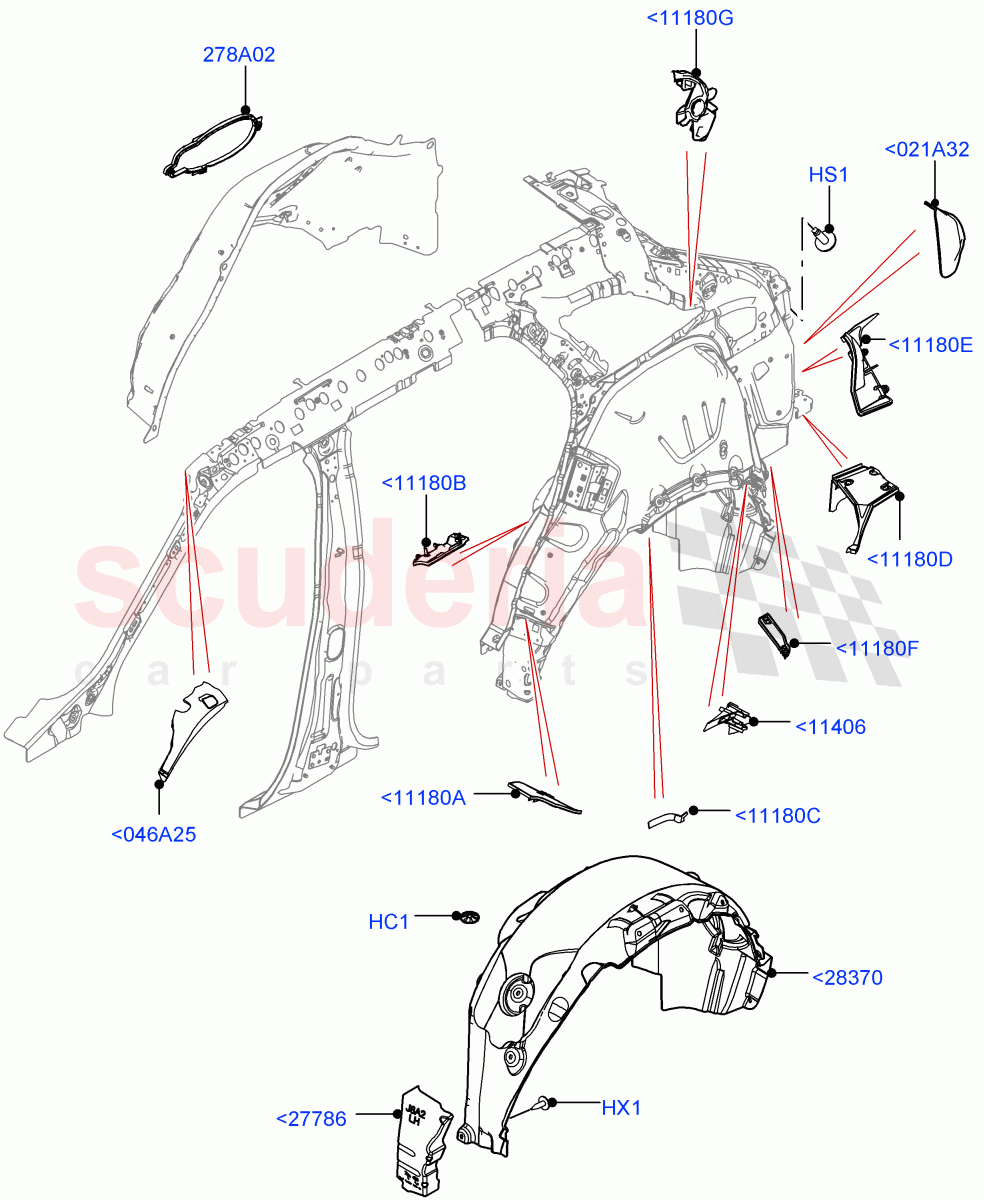

Side Panels - Inner (Wheelarch) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR044969
SEAL - "D" POST
RH, "D" Pillar 		$12.35 1
<021A32 LR044970
SEAL - "D" POST
LH, "D" Pillar 		$11.99 1
<046A25 LR102683
FOAM - SEALING
RH 		$11.80 1
<046A25 LR102682
FOAM - SEALING
LH 		$11.80 1
<11180A LR091748
INSULATOR - QUARTER PANEL
RH 		$32.51 1
<11180A LR091749
INSULATOR - QUARTER PANEL
LH 		$32.51 1
<11180B LR091777
INSULATOR - QUARTER PANEL
RH 		$22.96 1
<11180B LR091778
INSULATOR - QUARTER PANEL
LH 		$22.96 1
<11180C LR091860
INSULATOR - QUARTER PANEL
RH 		$19.81 1
<11180C LR091861
INSULATOR - QUARTER PANEL
LH 		$19.81 1
<11180D LR091762
INSULATOR - REAR QUARTER PANEL
LH 		$24.51 1
<11180D LR091761
INSULATOR - REAR QUARTER PANEL
RH 		$24.51 1
<11180E LR091337
INSULATOR - QUARTER PANEL
RH 		$25.46 1
<11180E LR091338
INSULATOR - QUARTER PANEL
LH 		$24.32 1
<11180F LR092783
INSULATOR - QUARTER PANEL
RH 		$19.07 1
<11180F LR092784
INSULATOR - QUARTER PANEL
LH 		$19.07 1
<11180G LR112473
INSULATOR
RH 		$27.18 1
<11180G LR112476
INSULATOR
LH 		$27.18 1
<11406 LR091858
INSULATOR - QUARTER PANEL
RH 		$22.96 1
<11406 LR091859
INSULATOR - QUARTER PANEL
LH 		$22.96 1
<27786 LR092642
INSULATOR - FOAM PAD
LH 		$29.23 1
<27786 LR092634
INSULATOR - FOAM PAD
RH 		$28.24 1
<28370 LR092632
SHIELD - SPLASH - WHEELHOUSE
RH / To: LA261544 		$177.56 1
<28370 LR092633
SHIELD - SPLASH - WHEELHOUSE
LH / To: LA261544 		$177.56 1
<28370 LR137568
SHIELD - SPLASH - WHEELHOUSE
RH / From: LA261545 		$185.81 1
<28370 LR137569
SHIELD - SPLASH - WHEELHOUSE
LH / From: LA261545 / To: LA999989 		$185.81 1
<28370 LR144483
SHIELD - SPLASH - WHEELHOUSE
LH / From: LA999990 / To: LA999999 		$195.11 1
<28370 LR152389
SHIELD - SPLASH - WHEELHOUSE
LH / From: MA000001 		$195.11 1
HC1 LR033697
CLIP - PUSH ON STEEL
LH, M6, Side / To: JA758775 		$1.43 10
HC1 LR033697
CLIP - PUSH ON STEEL
RH, M6, Side / To: JA758775 		$1.43 8
HC1 LR108386
CLIP - PUSH ON STEEL
LH, M6, Side / From: JA758776 		$1.04 10
HC1 LR108386
CLIP - PUSH ON STEEL
RH, M6, Side / From: JA758776 		$1.04 8
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping
IN STOCK 		$2.24 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin
IN STOCK 		$1.49 2
278A02 LR091741
GASKET - FILLER PIPE
RH Side Only / To: JA724910 		$55.93 1
278A02 LR109349
GASKET - FILLER PIPE
RH Side Only / From: JA724911 / To: KA201194 		$55.93 1
278A02 LR125848
GASKET - FILLER PIPE
RH Side Only / From: KA201195 		$55.93 1
278A02 LR143055
GASKET - FILLER PIPE
LH Side Only / From: MA000001 		$51.10 1
