| Photo | Part No | Description | Price (each) | Stock |
 |
LR095783 | O-RING | $4.67 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR073655 | SCREW | $1.60 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
RYP500810 | SCREW | $0.62 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR074074 | OIL SPILL GAITER | $13.39 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
LR085939 | MANIFOLD - INLET | $620.26 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR074070 | GASKET - INTAKE MANIFOLD | $11.25 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR091891 | COVER - ENGINE TOP | $290.70 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR038978 | STUD - BALL | $3.80 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR074085 | BOLT - SPECIAL | $5.04 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR074073 | GASKET - THROTTLE | $15.97 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR085941 | ACTUATOR - VARIABLE INTAKE SYSTEM | $222.66 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR090375 | SENSOR - AIR TEMPERATURE & PRESSURE | $125.35 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR073653 | BRACKET - MANIFOLD | $19.97 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR090404 | BRACKET - MANIFOLD | $19.41 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HR1 |
LR095783 O-RING 7.5MM, MAP Sensor IN STOCK |
$4.67 | 1 | |
| HS1 |
LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM IN STOCK |
$1.60 | 4 | |
| HS2 |
RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor |
$0.62 | 1 | |
| 6A949 |
LR091891 COVER - ENGINE TOP Engine |
$290.70 | 1 | |
| 6A957 |
LR038978 STUD - BALL Ball Stud, Engine Cover |
$3.80 | 2 | |
| 6N028 |
LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head |
$5.04 | 9 | |
| 6N080A |
LR073653 BRACKET - MANIFOLD Rear |
$19.97 | 1 | |
| 6N080B |
LR090404 BRACKET - MANIFOLD Front |
$19.41 | 1 | |
| 9E931 |
LR074073 GASKET - THROTTLE Throttle Body To Intake |
$15.97 | 1 | |
| 9F644 |
LR085941 ACTUATOR - VARIABLE INTAKE SYSTEM |
$222.66 | 1 | |
| 12A697 |
LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature |
$125.35 | 1 | |
| 8703 |
LR074074 OIL SPILL GAITER Oil Spill |
$13.39 | 1 | |
| 9424 |
LR085939 MANIFOLD - INLET IN STOCK |
$620.26 | 1 | |
| 9450 |
LR074070 GASKET - INTAKE MANIFOLD Inlet Manifold |
$11.25 | 8 |
Haven't found what you're looking for?

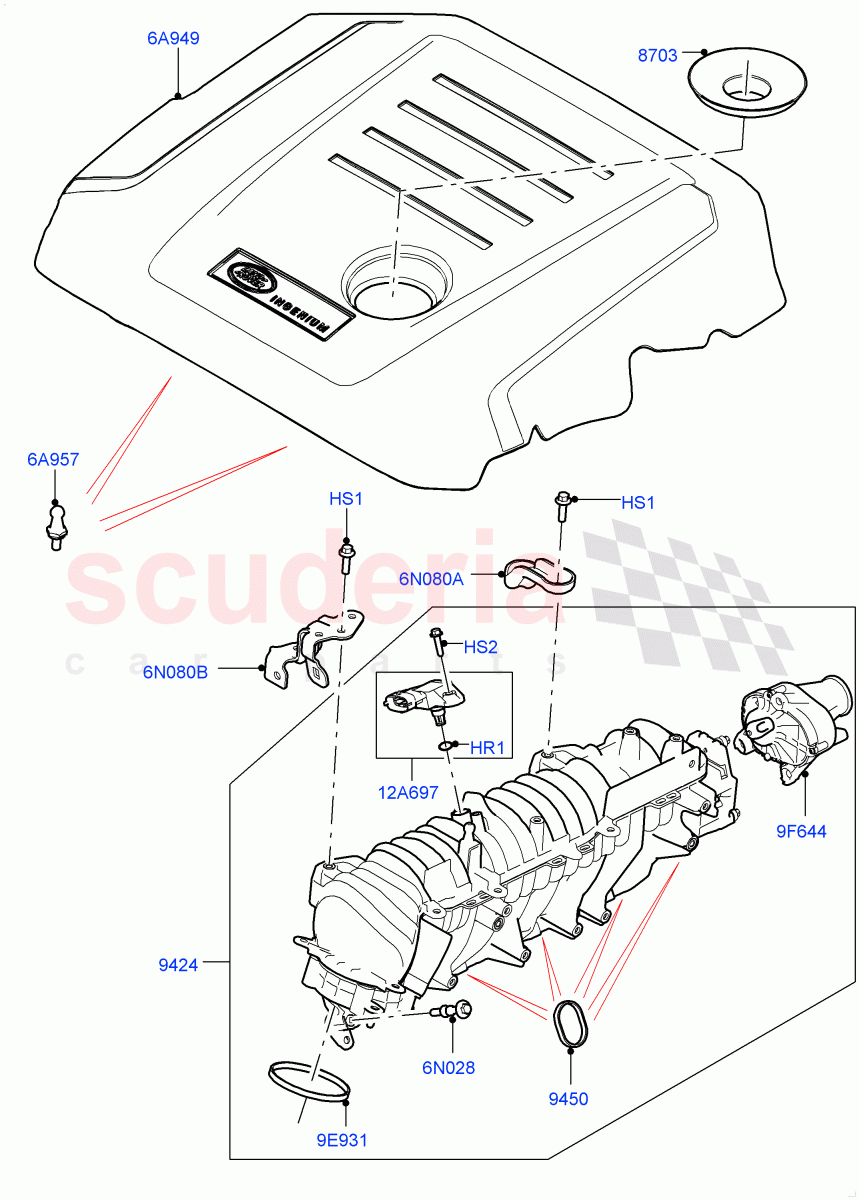

![Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]](/images/diagrams/landrover/KHQFKR9JLKPJSGE2D9P4.gif)
