Cylinder Block And Plugs (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Cylinder Block And Plugs (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR101794 BOLT $1.69 To Order
Photo Part No Description Price (each) Stock
LR088516 CLIP - RETAINING $2.17 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.48 To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.42 To Order
Photo Part No Description Price (each) Stock
LR163193 PLUG - ENGINE $4.25 To Order
Photo Part No Description Price (each) Stock
LR163194 PLUG - ENGINE $11.28 To Order
Photo Part No Description Price (each) Stock
LR163195 PLUG - ENGINE $11.28 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.68 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
LR073655 SCREW $1.60 IN STOCK
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR101795 SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
LR095132 COVER - CYLINDER FRONT $124.71 To Order
LR108531 COVER - CYLINDER FRONT $130.40 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $198.75 IN STOCK
Photo Part No Description Price (each) Stock
LR107013 KIT - "O" RING $14.42 To Order
Photo Part No Description Price (each) Stock
LR095896 NOZZLE - PISTON COOLING $17.26 To Order
Photo Part No Description Price (each) Stock
LR093852 SEAL - CRANKSHAFT OIL - FRONT $26.22 To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE $43.70 To Order
Photo Part No Description Price (each) Stock
LR148195 CONNECTOR - VACUUM TUBE $27.92 To Order
LR148195 CONNECTOR - VACUUM TUBE $27.92 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.52 IN STOCK
LR057802 DOWEL - PIN $3.52 IN STOCK
Photo Part No Description Price (each) Stock
LR088544 COVER - INSULATOR $44.49 To Order
Photo Part No Description Price (each) Stock
LR083682 INSULATOR - ENGINE COMPARTMENT $53.34 To Order
View All

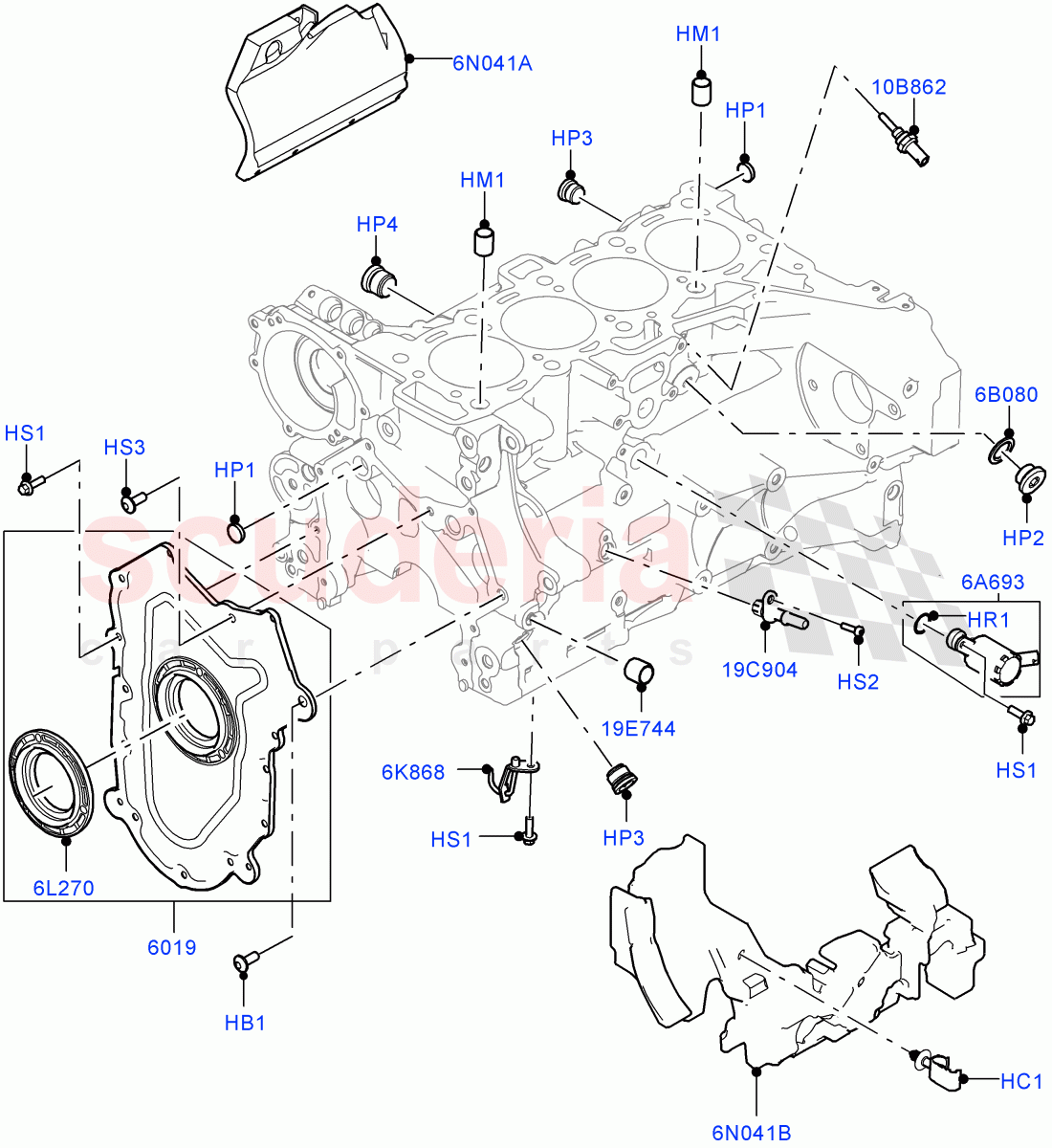

Cylinder Block And Plugs (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR101794
BOLT
M10 X 25MM, Torx 		$1.69 1
HC1 LR088516
CLIP - RETAINING 		$2.17 1
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell 		$2.48 2
HP1 LR073636
PLUG - BLANKING
18MM, Blanking 		$4.42 4
HP2 LR163193
PLUG - ENGINE
LH Side, M22 X 1.5MM 		$4.25 1
HP3 LR163194
PLUG - ENGINE
M14 x 9 mm 		$11.28 2
HP4 LR163195
PLUG - ENGINE
M18 x 1.5, RH Side 		$11.28 1
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling
IN STOCK 		$4.68 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Oil Lubrication Jet
IN STOCK 		$1.60 4
HS1 LR073655
SCREW
Cover, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.60 12
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling
IN STOCK 		$1.60 1
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.43 1
HS3 LR101795
SCREW
M8X25, Torx 		$1.21 1
6A693 LR073684
VALVE - PISTON OIL COOLNG
IN STOCK 		$198.75 1
6B080 LR107013
KIT - "O" RING 		$14.42 1
6K868 LR095896
NOZZLE - PISTON COOLING 		$17.26 4
6L270 LR093852
SEAL - CRANKSHAFT OIL - FRONT 		$26.22 1
6N041A LR088544
COVER - INSULATOR
RH, Cylinder Block 		$44.49 1
6N041B LR083682
INSULATOR - ENGINE COMPARTMENT
LH, Cylinder Block 		$53.34 1
10B862 LR074067
SENSOR - ENGINE TEMPERATURE 		$43.70 1
19C904 LR148195
CONNECTOR - VACUUM TUBE
To: LA292815 		$27.92 1
19C904 LR148195
CONNECTOR - VACUUM TUBE
From: LA292816 		$27.92 1
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.52 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.52 2
6019 LR095132
COVER - CYLINDER FRONT
Engine Front, Includes Seal / To: JA718282 		$124.71 1
6019 LR108531
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: JA718283 		$130.40 1
