Name: Exhaust Manifold (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

View All

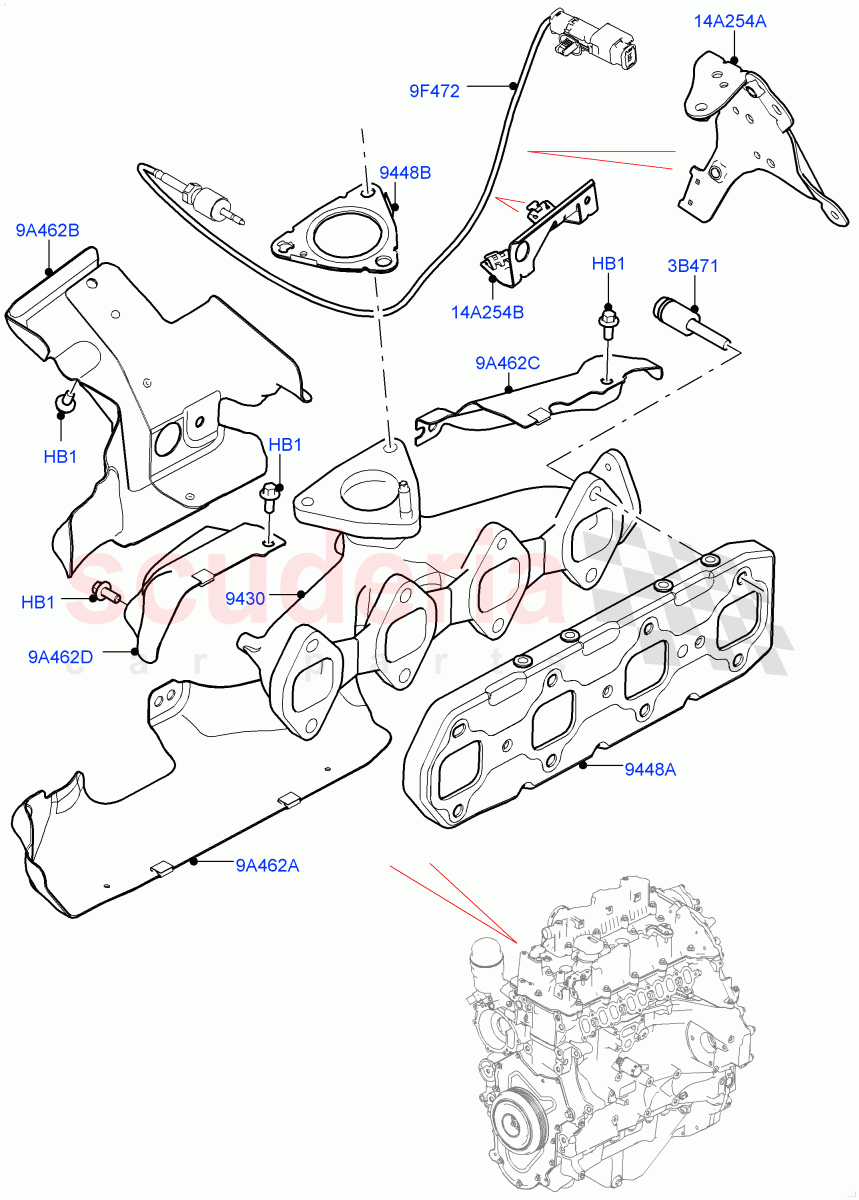

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104015	MANIFOLD - EXHAUST	$646.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073658	GASKET	$33.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	$30.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082480	SENSOR - EXHAUST GAS - TEMPERATURE	$54.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	$53.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081627	SHIELD - EXHAUST MANIFOLD HEAT	$61.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	$56.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	$50.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124570	BRACKET - CABLE SUPPORT	$14.27	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM	$2.77	5
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL	$3.71	8
9A462A	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	LR073659 SHIELD - EXHAUST MANIFOLD HEAT Bottom	$53.61	1
9A462B	LR081627	SHIELD - EXHAUST MANIFOLD HEAT	LR081627 SHIELD - EXHAUST MANIFOLD HEAT Centre	$61.42	1
9A462C	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	LR073660 SHIELD - EXHAUST MANIFOLD HEAT Engine Rear	$56.70	1
9A462D	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	LR073661 SHIELD - EXHAUST MANIFOLD HEAT Engine Front	$50.89	1
9F472	LR082480	SENSOR - EXHAUST GAS - TEMPERATURE	LR082480 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$54.48	1
14A254A	LR104408	BRACKET	LR104408 BRACKET Sensor Cable / To: LA285523	$17.51	1
14A254A	LR146479	BRACKET	LR146479 BRACKET Sensor Cable / From: LA285524	$107.22	1
14A254B	LR124570	BRACKET - CABLE SUPPORT	LR124570 BRACKET - CABLE SUPPORT Sensor Cable	$14.27	1
9430	LR104015	MANIFOLD - EXHAUST	LR104015 MANIFOLD - EXHAUST	$646.82	1
9448A	LR073658	GASKET	LR073658 GASKET Manifold To Cylinder Head	$33.72	1
9448B	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger	$30.30	1

Exhaust Manifold (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]
