Cylinder Head (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc Aj200) ((V)...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Cylinder Head (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR073645 CYLINDER HEAD $3,389.72 To Order
Photo Part No Description Price (each) Stock
LR073638 GASKET - CYLINDER HEAD $137.71 To Order
LR073639 GASKET - CYLINDER HEAD $137.71 To Order
LR073640 GASKET-CYLINDER HEAD $137.71 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073643 BOLT - HEX.HEAD $7.31 To Order
Photo Part No Description Price (each) Stock
LR084294 TENSIONER - TIMING BELT $145.69 IN STOCK
Photo Part No Description Price (each) Stock
LR073777 TAPPET - VALVE $51.06 To Order
Photo Part No Description Price (each) Stock
LR073779 VALVE - EXHAUST $27.22 To Order
Photo Part No Description Price (each) Stock
LR073780 VALVE - INLET $27.58 To Order
Photo Part No Description Price (each) Stock
LR073772 SPRING - VALVE $13.18 To Order
LR125672 SPRING - VALVE $12.95 To Order
Photo Part No Description Price (each) Stock
LR073773 RETAINER - VALVE SPRING - UPPER $20.27 To Order
Photo Part No Description Price (each) Stock
LR073774 COLLET - VALVE SPRING RETAINER $3.33 To Order
Photo Part No Description Price (each) Stock
LR073775 ARM - VALVE ROCKER $54.03 To Order
Photo Part No Description Price (each) Stock
LR073776 SEAL - VALVE STEM $8.17 To Order
Photo Part No Description Price (each) Stock
LR073690 TUBE - WATER OUTLET $9.55 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.67 To Order
Photo Part No Description Price (each) Stock
LR073651 DOWEL - PIN $3.84 To Order
Photo Part No Description Price (each) Stock
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.35 To Order
LR115083 SENSOR - CYLINDER HEAD TEMPERATURE $50.01 To Order
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.35 To Order
Photo Part No Description Price (each) Stock
LR073685 TUBE - DRAIN $24.83 To Order
View All

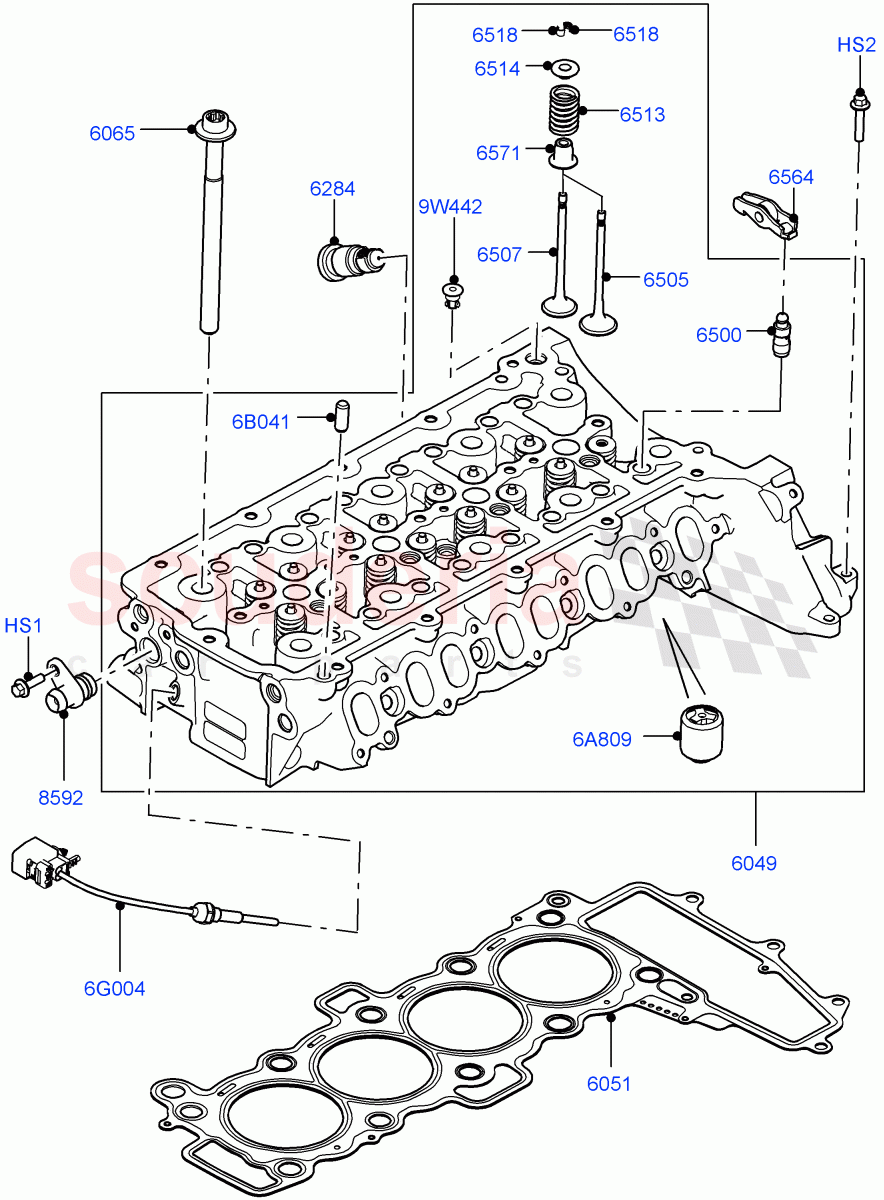

Cylinder Head (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Outlet pipe
IN STOCK 		$1.60 1
HS2 LR073648
SCREW
Hexagonal Head, M6 x 30MM
IN STOCK 		$2.67 4
6A809 LR077674
VALVE - CHECK 		$9.67 1
6B041 LR073651
DOWEL - PIN
8 x 19MM 		$3.84 2
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / To: JA746860 		$63.35 1
6G004 LR115083
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / From: JA746861 / To: MA302367 		$50.01 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature / From: MA302368 		$63.35 1
9W442 LR073685
TUBE - DRAIN
Drain 		$24.83 1
6049 LR073645
CYLINDER HEAD
With Valves 		$3,389.72 1
6051 LR073638
GASKET - CYLINDER HEAD
1.30MM, Grade 1 		$137.71 1
6051 LR073639
GASKET - CYLINDER HEAD
1.40MM, Grade 2 		$137.71 1
6051 LR073640
GASKET-CYLINDER HEAD
1.50MM, Grade 3 		$137.71 1
6051 LR073641
GASKET - CYLINDER HEAD
1.60MM, Grade 4 		$137.71 1
6051 LR073642
GASKET - CYLINDER HEAD
1.70MM, Grade 5 		$137.71 1
6065 LR073643
BOLT - HEX.HEAD 		$7.31 10
6284 LR084294
TENSIONER - TIMING BELT
Secondary
IN STOCK 		$145.69 1
6500 LR073777
TAPPET - VALVE 		$51.06 16
6505 LR073779
VALVE - EXHAUST 		$27.22 8
6507 LR073780
VALVE - INLET 		$27.58 8
6513 LR073772
SPRING - VALVE
To: LA240055 		$13.18 16
6513 LR125672
SPRING - VALVE
From: LA240056 		$12.95 16
6514 LR073773
RETAINER - VALVE SPRING - UPPER 		$20.27 16
6518 LR073774
COLLET - VALVE SPRING RETAINER 		$3.33 32
6564 LR073775
ARM - VALVE ROCKER 		$54.03 16
6571 LR073776
SEAL - VALVE STEM 		$8.17 16
8592 LR073690
TUBE - WATER OUTLET 		$9.55 1
