Front Susp.arms/Stabilizer/X-Member (Less Roll Stability Control, Less Ace Suspension) ((V)...

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Front Susp.Arms/Stabilizer/X-Member (Less Roll Stability Control, Less ACE Suspension) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG000420 BOLT $6.77 IN STOCK
Photo Part No Description Price (each) Stock
RDI000032 BOLT $6.38 To Order
RDI000034 BOLT $13.72 IN STOCK
Photo Part No Description Price (each) Stock
RYP501080 BOLT $1.41 To Order
Photo Part No Description Price (each) Stock
FY112056 NUT - HEX. $1.94 IN STOCK
FY112056 NUT - HEX. $1.94 IN STOCK
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.25 IN STOCK
Photo Part No Description Price (each) Stock
FX116057 NUT - FLANGED $4.80 To Order
FX116056 NUT - FLANGED $6.15 IN STOCK
Photo Part No Description Price (each) Stock
FX114057 NUT $1.68 To Order
FY114056 NUT - HEX. $1.25 IN STOCK
Photo Part No Description Price (each) Stock
FX112056 NUT - HEX. $1.30 To Order
Photo Part No Description Price (each) Stock
RYG000440 BOLT $17.22 IN STOCK
Photo Part No Description Price (each) Stock
RYF000202 WASHER $1.89 To Order
RYF000203 WASHER $8.60 IN STOCK
Photo Part No Description Price (each) Stock
WA116101 Washer Enquire To Order
WA116106 WASHER $3.70 To Order
Photo Part No Description Price (each) Stock
RYF500120 WASHER $1.74 To Order
Photo Part No Description Price (each) Stock
RBX500432 BUSH - FRONT SUSPENSION ARM $24.22 To Order
Photo Part No Description Price (each) Stock
RBL500660 BAR - ROLL $204.12 To Order
RBL500740 BAR - ROLL $202.17 To Order
Photo Part No Description Price (each) Stock
RBU000271 CLAMP $4.67 To Order
RBU500100 CLAMP - RUBBER BUSH $56.60 To Order
Photo Part No Description Price (each) Stock
RBK500170 JOINT - BALL $73.11 To Order
Photo Part No Description Price (each) Stock
RBK500180 JOINT - BALL $59.13 To Order
RBK500240 JOINT - BALL $76.36 To Order
RBK500300 JOINT - BALL $79.42 IN STOCK
Photo Part No Description Price (each) Stock
LR055291 BUSH - FRONT SUSPENSION ARM $120.37 IN STOCK
Photo Part No Description Price (each) Stock
RBM500140 LINK $54.28 To Order
RBM500150 LINK $54.28 To Order
Photo Part No Description Price (each) Stock
RBX500280 BUSH $6.49 To Order
Photo Part No Description Price (each) Stock
LR051625 BUSH - SUSPENSION ARM $19.63 IN STOCK
LR051625 BUSH - SUSPENSION ARM $19.63 IN STOCK
Photo Part No Description Price (each) Stock
RBJ500840 ARM - FRONT SUSPENSION $134.88 To Order
RBJ500850 ARM - FRONT SUSPENSION $197.35 To Order
LR026095 ARM - FRONT SUSPENSION $184.63 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RBJ501390 ARM - FRONT SUSPENSION $349.67 To Order
RBJ500446 ARM - FRONT SUSPENSION $312.94 To Order
RBJ500456 ARM - FRONT SUSPENSION $312.94 To Order
...and 11 more part variants. See table on right for more details.
View All

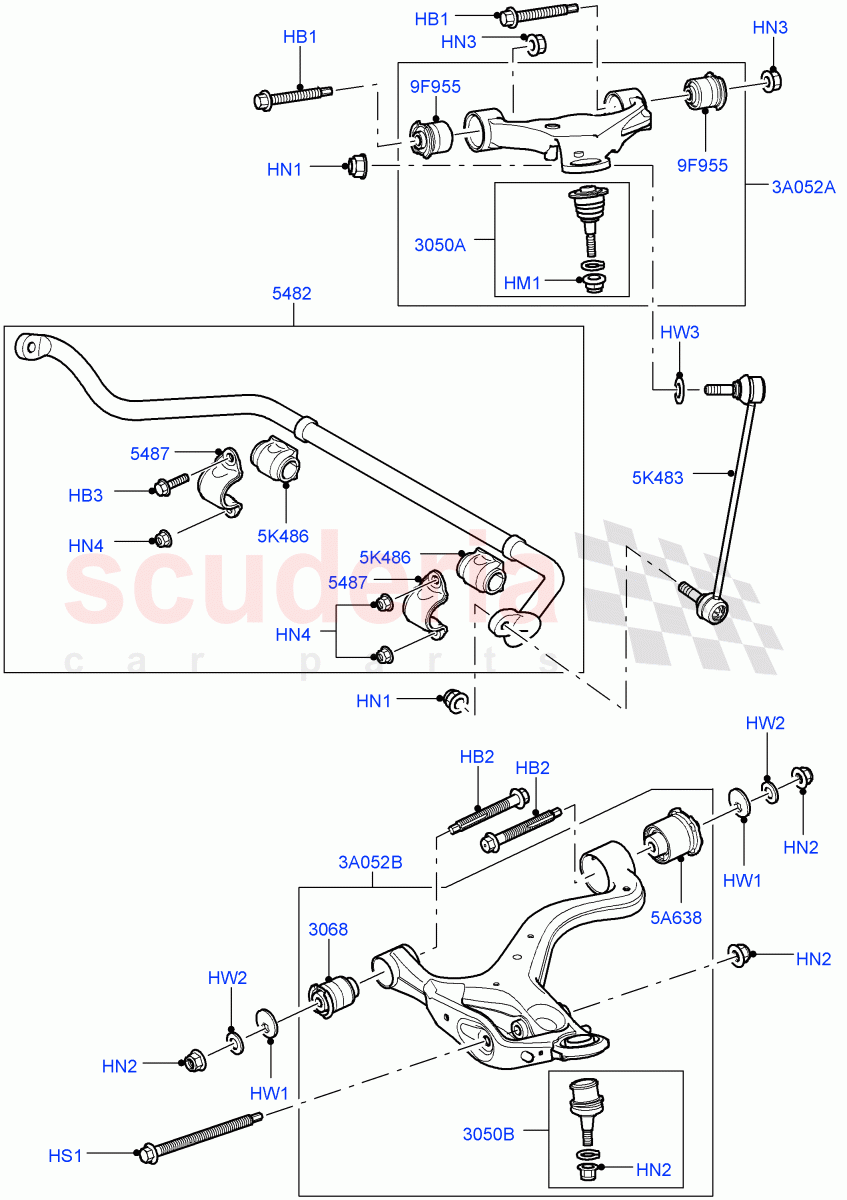

Front Susp.Arms/Stabilizer/X-Member (Less Roll Stability Control, Less ACE Suspension) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG000420
BOLT
M14 X 80MM
IN STOCK 		$6.77 4
HB2 RDI000032
BOLT
M16 / To: 5A909232 		$6.38 4
HB2 RDI000034
BOLT
M16 X 120MM / From: 5A909233
IN STOCK 		$13.72 4
HB3 RYP501080
BOLT
M12 x 25MM 		$1.41 1
HM1 FY112056
NUT - HEX.
Hex Nut Type, M12 X 1.75MM / To: 7A108443
IN STOCK 		$1.94 2
HM1 FY112056
NUT - HEX.
Hex Nut Type, M12 / From: 7A108444
IN STOCK 		$1.94 2
HN1 FY114056
NUT - HEX.
M14
IN STOCK 		$1.25 4
HN2 FX116057
NUT - FLANGED
M16 / To: 7A108443 		$4.80 6
HN2 FX116056
NUT - FLANGED
M16 / From: 7A108444
IN STOCK 		$6.15 6
HN3 FX114057
NUT
M14 / To: 7A108443 		$1.68 4
HN3 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: 7A108444
IN STOCK 		$1.25 4
HN4 FX112056
NUT - HEX.
HEX Flange, M12 		$1.30 3
HS1 RYG000440
BOLT
M16 X 200MM
IN STOCK 		$17.22 2
HW1 RYF000202
WASHER
Adjusting / To: 6A999999 		$1.89 4
HW1 RYF000203
WASHER
Adjusting / From: 7A000001
IN STOCK 		$8.60 4
HW2 WA116101
Washer
17 X 30 X 3 / To: 7A108443 		- 4 Enquire
HW2 WA116106
WASHER
17 X 30 X 3 / From: 7A108444 		$3.70 4
HW3 RYF500120
WASHER
14.2 X 24 X 2.3 		$1.74 4
3A052A RBJ500840
ARM - FRONT SUSPENSION
RH / From: 9A000001 / To: 9A001000 		$134.88 1
3A052A RBJ500850
ARM - FRONT SUSPENSION
LH / To: 8A999999 		$197.35 1
3A052A LR026095
ARM - FRONT SUSPENSION
RH / To: 8A999999 		$184.63 1
3A052A LR051617
ARM - FRONT SUSPENSION
RH / From: 9A001001 		$288.16 1
3A052A LR051618
ARM - FRONT SUSPENSION
LH / From: 9A000001 / To: 9A001000 		$264.99 1
3A052A LR074838
ARM - FRONT SUSPENSION
LH / From: 9A001001 		$295.40 1
3A052B RBJ501390
ARM - FRONT SUSPENSION
AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 8A135963 / To: 9A199376 		$349.67 1
3A052B RBJ500446
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / RH / To: 6A999999 		$312.94 1
3A052B RBJ500456
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / LH / To: 6A999999 		$312.94 1
3A052B RBJ501280
ARM - FRONT SUSPENSION
AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 7A000001 / To: 8A135962 		$313.45 1
3A052B RBJ501380
ARM - FRONT SUSPENSION
AJ Petrol 4.4 V8 EFI (220KW) / RH / From: 8A135963 / To: 9A199376 		$328.09 1
3A052B RBJ501290
ARM - FRONT SUSPENSION
AJ Petrol 4.4 V8 EFI (220KW) / LH / From: 7A000001 / To: 8A135962 		$391.86 1
3A052B RBJ501600
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352 		$392.93 1
3A052B RBJ501610
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A208831 / To: 9A213352 		$377.57 1
3A052B RBJ501500
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / RH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830 		$363.86 1
3A052B RBJ501510
ARM - FRONT SUSPENSION
AJ Petrol 4.2 V8 Supercharged / LH, For Use With 35MM Joint Assy Ball Only / From: 9A199377 / To: 9A208830 		$377.57 1
3A052B LR029304
ARM - FRONT SUSPENSION
Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A214160 		$429.30 1
3A052B LR029306
ARM - FRONT SUSPENSION
Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A214160 		$428.97 1
3A052B LR028252
ARM - FRONT SUSPENSION
Lion Diesel 2.7 V6 (140KW) / LH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159 		$554.61 1
3A052B LR028248
ARM - FRONT SUSPENSION
Lion Diesel 2.7 V6 (140KW) / RH, For Use With 35MM Joint Assy Ball Only / From: 9A213353 / To: 9A214159 		$526.58 1
5A638 LR055291
BUSH - FRONT SUSPENSION ARM
Hydrabush, Lower, Rear
IN STOCK 		$120.37 2
5K483 RBM500140
LINK
RH 		$54.28 1
5K483 RBM500150
LINK
LH 		$54.28 1
5K486 RBX500280
BUSH
Front stabilizer 		$6.49 2
9F955 LR051625
BUSH - SUSPENSION ARM
Front / Rear, Upper / To: 8A999999
IN STOCK 		$19.63 4
9F955 LR051625
BUSH - SUSPENSION ARM
Front / Rear, Upper / From: 9A000001
IN STOCK 		$19.63 4
3050A RBK500170
JOINT - BALL
Includes Circlip, Upper 		$73.11 2
3050B RBK500180
JOINT - BALL
Includes Circlip, Lower / To: 9A199376 		$59.13 2
3050B RBK500240
JOINT - BALL
35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A199377 / To: 9A208830 		$76.36 1
3050B RBK500300
JOINT - BALL
35MM Joint Assy - Ball, Includes Circlip, Lower / From: 9A208831
IN STOCK 		$79.42 1
3068 RBX500432
BUSH - FRONT SUSPENSION ARM
Front, Lower 		$24.22 2
5482 RBL500660
BAR - ROLL
To: 5A909232 		$204.12 1
5482 RBL500740
BAR - ROLL
From: 5A909233 		$202.17 1
5487 RBU000271
CLAMP
To: 5A909232 		$4.67 2
5487 RBU500100
CLAMP - RUBBER BUSH
From: 5A909233 		$56.60 2
