Name: Active Anti-Roll Bar System (Stabilizer Bar, Front) (With Roll Stability Control, With ACE Suspension) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Active Anti-Roll Bar System (Stabilizer Bar, Front) (With Roll Stability Control, With ACE Suspension) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Active Anti-Roll Bar System (Stabilizer Bar, Front) (With Roll Stability Control, With ACE...

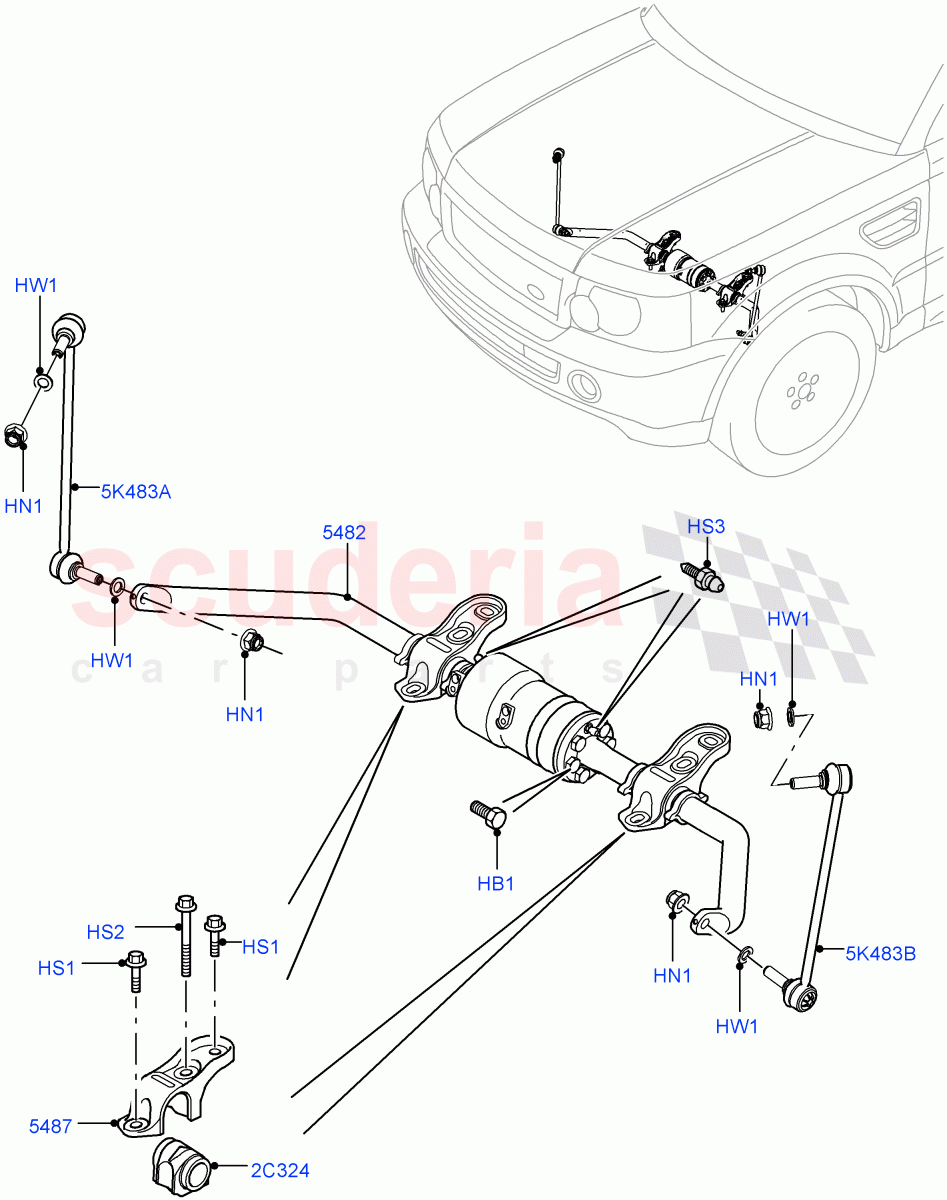

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG000420	BOLT	$6.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	$1.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP501120	SCREW	$6.29	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501110	SCREW	$6.96	To Order
	RYP501110	SCREW	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500030	SCREW (NON HAZ)	$3.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYF500120	WASHER	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	RQK500090	BAR - ROLL	$1,791.71	To Order
	RQK500091	BAR ASSY - ROLL	$2,686.08	To Order
	RQK500092	ACTUATOR	$2,158.87	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RBU500041	BRACKET	$24.45	To Order
	RBU500042	BRACKET - STABILIZER BAR	$38.81	To Order

Photo	Part No	Description	Price (each)	Stock
	RVU500011	BUSH - STABILIZER BAR LINK (NON HAZ)	$35.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500140	LINK	$53.38	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500150	LINK	$53.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG000420	BOLT IN STOCK	RYG000420 BOLT M14 X 80MM IN STOCK	$6.53	4
HN1	FY114056	NUT - HEX. IN STOCK	FY114056 NUT - HEX. M14 IN STOCK	$1.95	4
HS1	RYP501120	SCREW	RYP501120 SCREW M12 x 40MM	$6.29	4
HS2	RYP501110	SCREW	RYP501110 SCREW M12 x 80MM / To: 6A999999	$6.96	2
HS2	RYP501110	SCREW	RYP501110 SCREW M12, M12 x 85MM / From: 7A000001	$6.96	2
HS3	RYP500030	SCREW (NON HAZ) IN STOCK	RYP500030 SCREW (NON HAZ) Bleeder Screw IN STOCK	$3.50	2
HW1	RYF500120	WASHER	RYF500120 WASHER 14.2 X 24 X 2.3	$1.74	4
2C324	RVU500011	BUSH - STABILIZER BAR LINK (NON HAZ)	RVU500011 BUSH - STABILIZER BAR LINK (NON HAZ) Front stabilizer	$35.70	2
5K483A	RBM500140	LINK	RBM500140 LINK RH	$53.38	1
5K483B	RBM500150	LINK	RBM500150 LINK LH	$53.38	1
5482	RQK500090	BAR - ROLL	RQK500090 BAR - ROLL Includes Insulators And Clamps / To: 5A900495	$1,791.71	1
5482	RQK500091	BAR ASSY - ROLL	RQK500091 BAR ASSY - ROLL Includes Insulators And Clamps / From: 5A900496 / To: 5A905047	$2,686.08	1
5482	RQK500092	ACTUATOR	RQK500092 ACTUATOR Includes Insulators And Clamps / From: 5A905048 / To: 5A999999	$2,158.87	1
5482	RQK500140	BAR - FRONT STABILIZER	RQK500140 BAR - FRONT STABILIZER Includes Insulators And Clamps / From: 6A000001 / To: 6A919281	$2,259.12	1
5482	LR017272	BAR - FRONT STABILIZER	LR017272 BAR - FRONT STABILIZER Includes Insulators And Clamps / From: 6A919282 / To: 6A937358	$2,204.95	1
5482	LR018375	BAR - FRONT STABILIZER	LR018375 BAR - FRONT STABILIZER Includes Insulators And Clamps, New Part-Please Check For Reman Version / From: 6A937359 / To: 6A954039	$2,486.76	1
5482	LR019932	BAR - FRONT STABILIZER	LR019932 BAR - FRONT STABILIZER Includes Insulators And Clamps / From: 6A954040 / To: 6A974366	$2,624.56	1
5482	LR024095	BAR - FRONT STABILIZER	LR024095 BAR - FRONT STABILIZER Includes Insulators And Clamps / From: 6A974367 / To: 6A984366	$2,694.96	1
5482	LR032958	BAR - FRONT STABILIZER (NON HAZ)	LR032958 BAR - FRONT STABILIZER (NON HAZ) Includes Insulators And Clamps / From: 6A984367 / To: 6A999999	$2,568.37	1
5482	RQK500110	ACTUATOR	RQK500110 ACTUATOR Includes Insulators And Clamps / From: 7A000001 / To: 9A194475	$1,911.50	1
5482	RQK500150	BAR - FRONT STABILIZER	RQK500150 BAR - FRONT STABILIZER Includes Insulators And Clamps / From: 9A194476	$2,413.17	1
5482	LR020591	ACTUATOR	LR020591 ACTUATOR Includes Insulators And Clamps, Remanufactured Part / From: 6A937359 / To: 6A954039	$2,069.70	1
5487	RBU500041	BRACKET	RBU500041 BRACKET To: 6A936799	$24.45	2
5487	RBU500042	BRACKET - STABILIZER BAR	RBU500042 BRACKET - STABILIZER BAR From: 6A936800	$38.81	2
