Air Suspension Compressor And Lines (Compressor Assy) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Air Suspension Compressor And Lines (Compressor Assy) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYP000270 SCREW $0.47 To Order
RYP501100 BOLT $1.62 IN STOCK
Photo Part No Description Price (each) Stock
JPC6539L BOLT $1.21 To Order
Photo Part No Description Price (each) Stock
RYH500170 M8 NUT CLIP $2.01 IN STOCK
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR019941 SCREW $2.93 To Order
Photo Part No Description Price (each) Stock
LR019942 SCREW $1.62 To Order
Photo Part No Description Price (each) Stock
LR019943 SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
LR020590 KIT - COMPRESSOR OVERHAUL $38.72 To Order
Photo Part No Description Price (each) Stock
RYX500060 RING - SEALING $10.19 To Order
RYX500050 RING - SEALING $10.19 To Order
Photo Part No Description Price (each) Stock
RQD500020 STRAP - MOUNTING $4.42 To Order
Photo Part No Description Price (each) Stock
RQB500491 PIPE - LEVELLING COMPRESSOR $24.11 To Order
Photo Part No Description Price (each) Stock
LR012705 COMPRESSOR $1,385.30 To Order
Photo Part No Description Price (each) Stock
RQG500090 COMPRESSOR - SUSPENSION LEVELLING $1,099.47 To Order
Photo Part No Description Price (each) Stock
RQU500064 BRACKET - COMPRESSOR $269.89 To Order
Photo Part No Description Price (each) Stock
VUB504700 DRYER - COMPRESSOR AIR $235.22 To Order
Photo Part No Description Price (each) Stock
RQQ500015 DRYER - COMPRESSOR AIR $175.14 To Order
RQQ500016 DRYER - COMPRESSOR AIR $171.06 To Order
RQQ500020 DRYER - COMPRESSOR AIR $187.21 To Order
Photo Part No Description Price (each) Stock
RVL500014 MOUNTING - RUBBER $78.92 To Order
Photo Part No Description Price (each) Stock
RVL500022 MOUNTING - RUBBER $23.32 To Order
Photo Part No Description Price (each) Stock
RVC000054 COVER - AIR SUSPENSION COMPRESSOR $48.02 To Order
RVC500020 COVER - AIR SUSPENSION COMPRESSOR $80.83 To Order
Photo Part No Description Price (each) Stock
RVC000064 OVER - AIR SUSPENSION COMPRESSOR $45.32 To Order
RVC500010 COVER - AIR SUSPENSION COMPRESSOR $96.10 To Order
View All

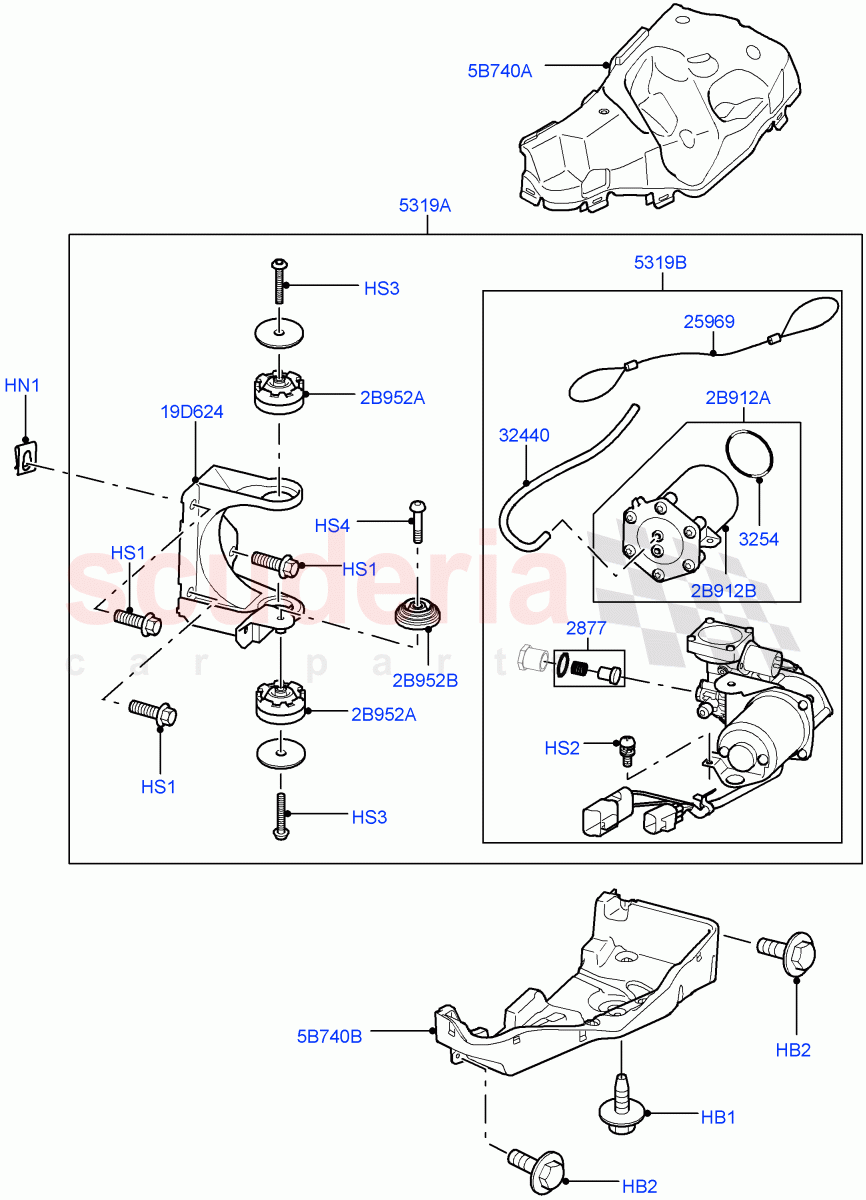

Air Suspension Compressor And Lines (Compressor Assy) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 EYP000270
SCREW
M6 X 20MM / To: 7A108443 		$0.47 1
HB1 RYP501100
BOLT
M6 X 23MM / From: 7A108444
IN STOCK 		$1.62 1
HB2 JPC6539L
BOLT
M6 X 20MM 		$1.21 2
HN1 RYH500170
M8 NUT CLIP
M8 X 1.25, Nut "U" Spring
IN STOCK 		$2.01 3
HS1 FS108256
BOLT
M8 X 25MM
IN STOCK 		$3.57 3
HS2 LR019941
SCREW
M5 X 12MM 		$2.93 1
HS3 LR019942
SCREW
M6 x 35MM 		$1.62 2
HS4 LR019943
SCREW
5 x 28MM 		$1.78 1
2B912A VUB504700
DRYER - COMPRESSOR AIR 		$235.22 1
2B912B RQQ500015
DRYER - COMPRESSOR AIR
To: 5A918546 		$175.14 1
2B912B RQQ500016
DRYER - COMPRESSOR AIR
From: 5A918547 / To: 6A999999 		$171.06 1
2B912B RQQ500020
DRYER - COMPRESSOR AIR
From: 7A000001 		$187.21 1
2B952A RVL500014
MOUNTING - RUBBER 		$78.92 2
2B952B RVL500022
MOUNTING - RUBBER 		$23.32 1
5B740A RVC000054
COVER - AIR SUSPENSION COMPRESSOR
To: 8A140931 		$48.02 1
5B740A RVC500020
COVER - AIR SUSPENSION COMPRESSOR
Compressor Assy, Upper / From: 8A140932 		$80.83 1
5B740B RVC000064
OVER - AIR SUSPENSION COMPRESSOR
To: 8A139783 		$45.32 1
5B740B RVC500010
COVER - AIR SUSPENSION COMPRESSOR
Compressor Assy, Lower / From: 8A139784 		$96.10 1
19D624 RQU500064
BRACKET - COMPRESSOR 		$269.89 1
2877 LR020590
KIT - COMPRESSOR OVERHAUL
Delivery Valve Kit 		$38.72 1
3254 RYX500060
RING - SEALING
10MM / From: 7A000001 		$10.19 1
3254 RYX500050
RING - SEALING
10MM / To: 6A999999 		$10.19 1
5319A LR012705
COMPRESSOR
Air Compressor Relay - YWB500220, Air Compressor Relay Must Be Replaced Simultaneously With Air Compressor Change, Complete Assembly 		$1,385.30 1
5319B RQG500090
COMPRESSOR - SUSPENSION LEVELLING
Air Compressor Relay - YWB500220, Air Compressor Relay Must Be Replaced Simultaneously With Air Compressor Change 		$1,099.47 1
25969 RQD500020
STRAP - MOUNTING 		$4.42 1
32440 RQB500491
PIPE - LEVELLING COMPRESSOR 		$24.11 2
