Name: Front Knuckle And Hub ((V) TO9A999999)
Rating: 5.0 (1 reviews)

View All

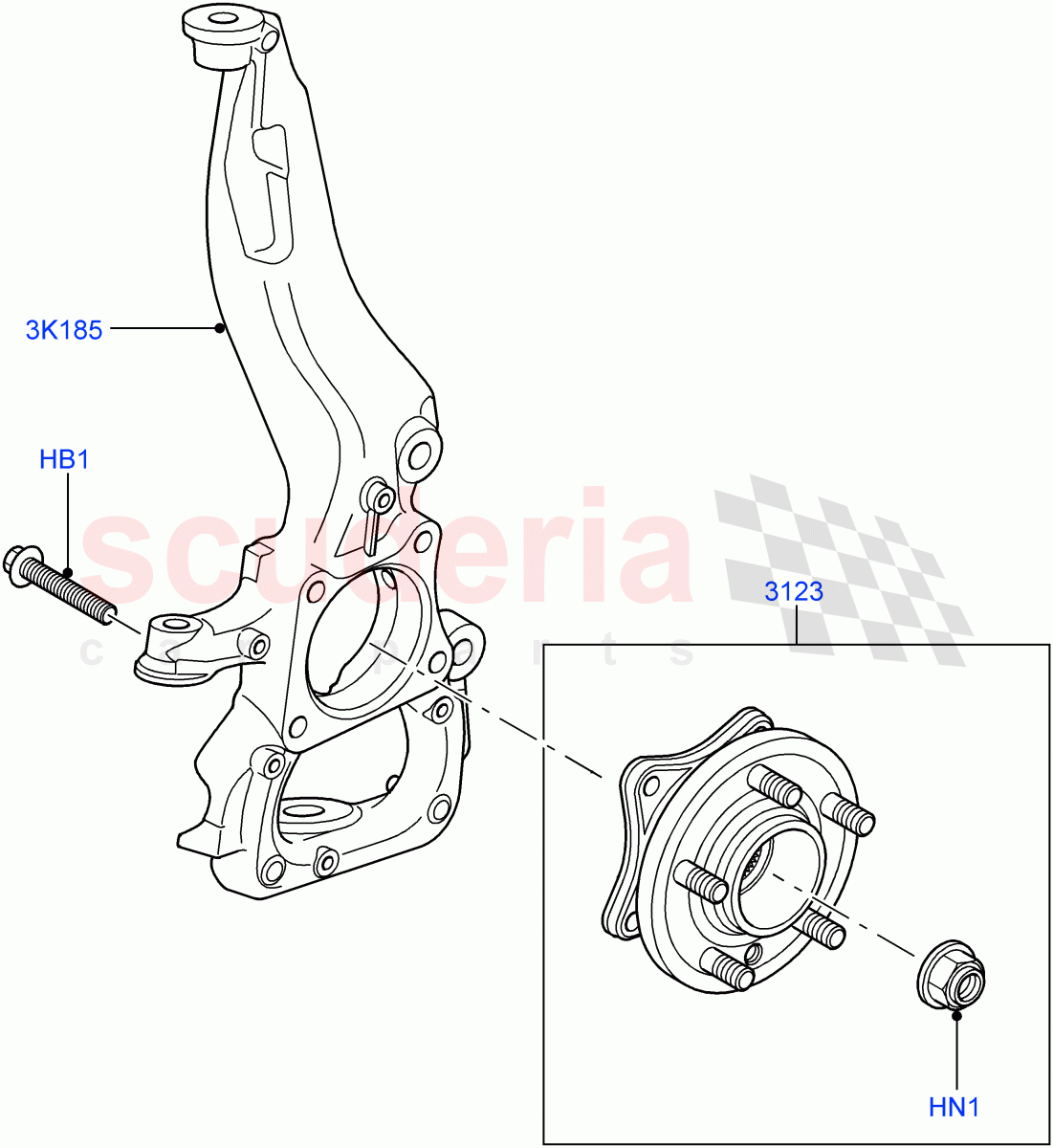

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FC112146	BOLT - FLANGED HEX.	FC112146 BOLT - FLANGED HEX. M12 x 70MM / To: 8A143428	$5.23	8
HB1	FC112146	BOLT - FLANGED HEX.	FC112146 BOLT - FLANGED HEX. M12 x 70MM / From: 8A143429	$5.23	8
HN1	RFD500020	NUT - HEX.	RFD500020 NUT - HEX. Hex Nut Type, Inspect The Thread Lead Before Ordering, M24 X 1.5MM	$8.87	2
HN1	LR024151	NUT AND WASHER - HEX. IN STOCK	LR024151 NUT AND WASHER - HEX. Inspect The Thread Lead Before Ordering, M24X2.0 IN STOCK	$10.19	1
3K185	RUB500120	KNUCKLE - FRONT WHEEL	RUB500120 KNUCKLE - FRONT WHEEL RH, Vehicle With M12 Outer Ball Joint / To: 9A191791	$192.75	1
3K185	RUB500130	KNUCKLE - FRONT WHEEL	RUB500130 KNUCKLE - FRONT WHEEL LH, Vehicle With M12 Outer Ball Joint / To: 9A191791	$192.75	1
3K185	RUB500320	KNUCKLE - FRONT WHEEL	RUB500320 KNUCKLE - FRONT WHEEL RH, Vehicle With M14 Outer Ball Joint / From: 9A191792	$571.75	1
3K185	RUB500330	KNUCKLE - FRONT WHEEL	RUB500330 KNUCKLE - FRONT WHEEL LH, Vehicle With M14 Outer Ball Joint / From: 9A191792	$571.75	1
3123	RFM500010	HUB AND BEARING - WHEEL	RFM500010 HUB AND BEARING - WHEEL To: 9A191791	$361.01	2
3123	LR014147	HUB AND BEARING - WHEEL	LR014147 HUB AND BEARING - WHEEL From: 9A191792	$370.30	2

Front Knuckle And Hub ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]
