Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion...

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
WYC100780L CLIP - HOSE $5.48 To Order
Photo Part No Description Price (each) Stock
WYC000080 CLIP - HOSE $4.60 To Order
Photo Part No Description Price (each) Stock
FS108127L SCREW $3.70 To Order
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
WLD500091 CAP - FUEL TANK FILLER $18.87 To Order
WLD500170 CAP - FUEL TANK FILLER $18.75 To Order
WLD500380 CAP - FUEL TANK FILLER $11.86 To Order
Photo Part No Description Price (each) Stock
WFP500361 TUBE $132.07 To Order
Photo Part No Description Price (each) Stock
WFP500350 TUBE $104.96 To Order
Photo Part No Description Price (each) Stock
WMJ500181 PIPE - FUEL FILLER $364.47 To Order
Photo Part No Description Price (each) Stock
WLH500020 PIPE - FUEL FILLER $12.21 To Order
Photo Part No Description Price (each) Stock
WFP500087 TUBE $54.83 To Order
Photo Part No Description Price (each) Stock
WFP500098 PIPE - FUEL $71.34 To Order
Photo Part No Description Price (each) Stock
WFP500500 PIPE - FUEL $67.23 To Order
Photo Part No Description Price (each) Stock
SPV500040 CLIP - PARKING BRAKE CABLE $1.50 To Order
Photo Part No Description Price (each) Stock
WJP501690 TUBE - FUEL FEED $97.66 To Order
View All

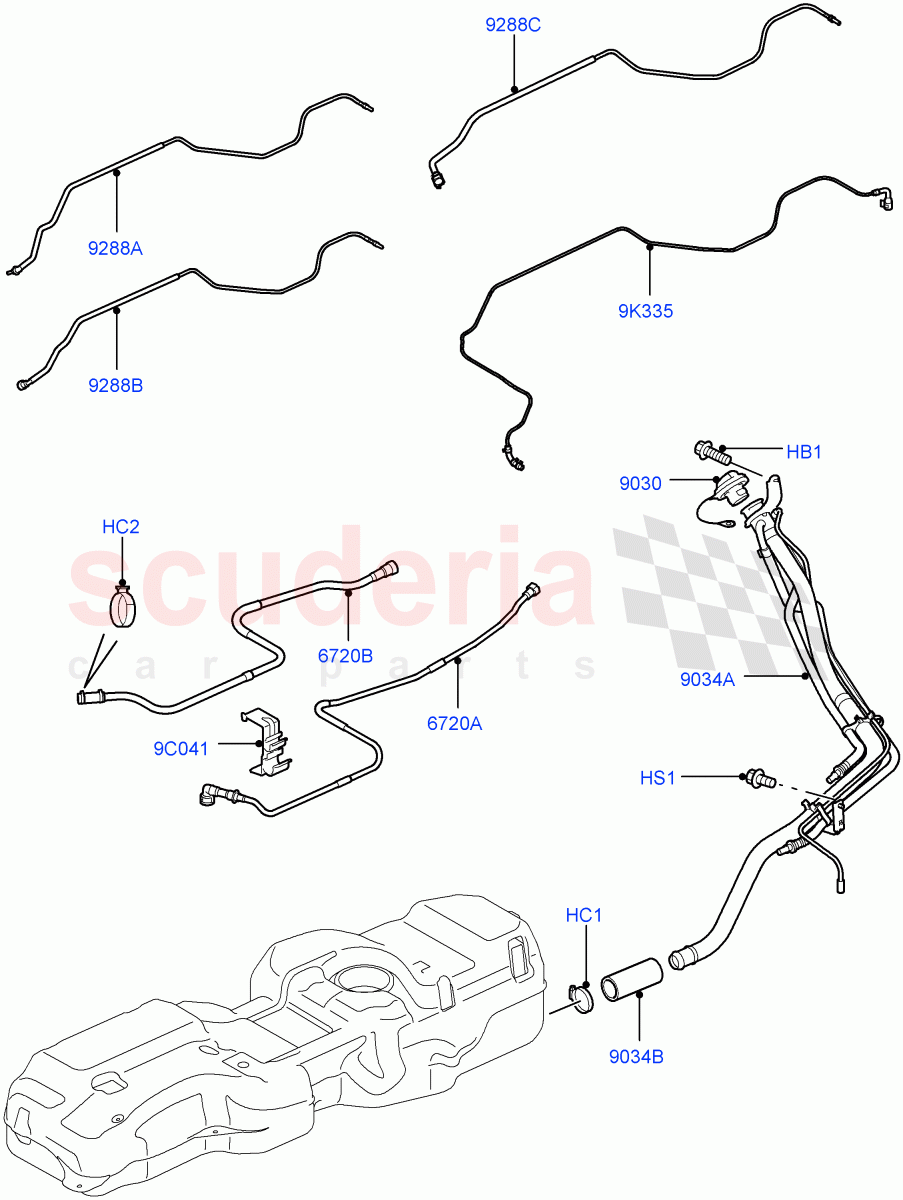

Fuel Tank & Related Parts (Page B, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SN106127L
BOLT
M6 		$0.65 1
HC1 WYC100780L
CLIP - HOSE
Pipe Clamp 		$5.48 1
HC2 WYC000080
CLIP - HOSE
27MM 		$4.60 1
HS1 FS108127L
SCREW
M8 x 12MM / To: 7A999999 		$3.70 1
HS1 FS108126
SCREW
M8 x 12MM / From: 8A000001
IN STOCK 		$1.36 8
9C041 SPV500040
CLIP - PARKING BRAKE CABLE 		$1.50 2
9K335 WJP501690
TUBE - FUEL FEED
With Fuel Fired Heater / From: 7A000001 		$97.66 1
6720A WFP500361
TUBE 		$132.07 1
6720B WFP500350
TUBE 		$104.96 1
9030 WLD500091
CAP - FUEL TANK FILLER
To: 6A916350 		$18.87 1
9030 WLD500170
CAP - FUEL TANK FILLER
From: 6A916351 / To: 7A999999 		$18.75 1
9030 WLD500380
CAP - FUEL TANK FILLER
From: 8A000001 		$11.86 1
9034A WMJ500181
PIPE - FUEL FILLER 		$364.47 1
9034B WLH500020
PIPE - FUEL FILLER 		$12.21 1
9288A WFP500087
TUBE
Return / To: 6A999999 		$54.83 1
9288B WFP500098
PIPE - FUEL
Feed / To: 6A999999 		$71.34 1
9288C WFP500500
PIPE - FUEL
Feed, From Fuel Tank To Fuel Filter / From: 7A000001 		$67.23 1
