Fuel Cooler Assembly (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Cooler Assembly (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AFU780210 CLIP $4.42 To Order
Photo Part No Description Price (each) Stock
FS108127L SCREW $3.70 To Order
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
PIH500091 HOSE - RADIATOR $36.85 To Order
Photo Part No Description Price (each) Stock
PIH500130 HOSE - RADIATOR $83.50 To Order
Photo Part No Description Price (each) Stock
WJU500430 BRACKET $20.20 To Order
Photo Part No Description Price (each) Stock
PIB500052 COOLER - FUEL $298.79 To Order
Photo Part No Description Price (each) Stock
PIB500120 COOLER - FUEL $189.69 To Order
Photo Part No Description Price (each) Stock
PIB500210 COOLER - FUEL $191.88 To Order
View All

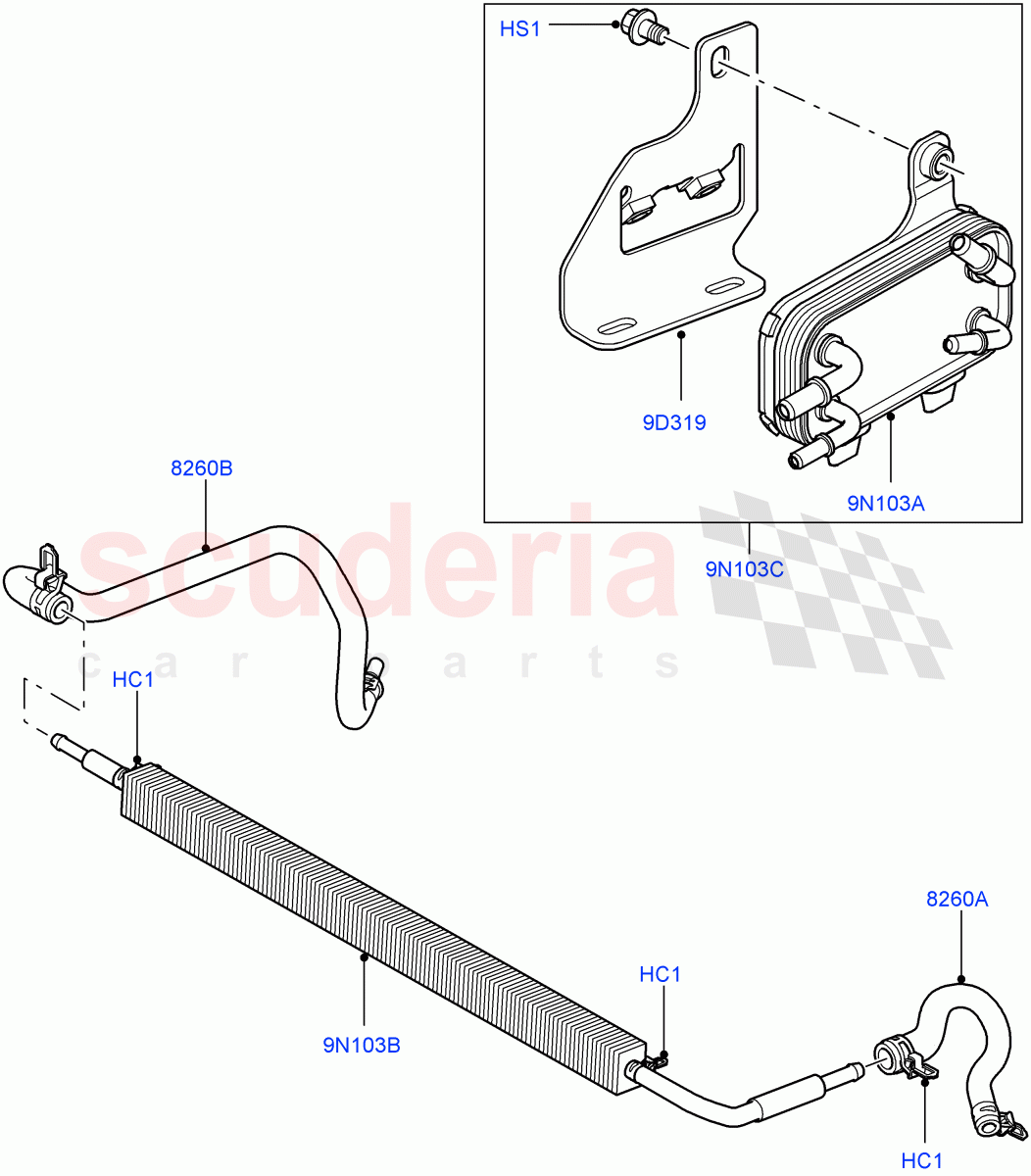

Fuel Cooler Assembly (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 AFU780210
CLIP
For Tropical Temperature Zones / For Fuel Cooler, Retainer 		$4.42 1
HS1 FS108127L
SCREW
M8 x 12MM / To: 7A999999 		$3.70 1
HS1 FS108126
SCREW
M8 x 12MM / From: 8A000001
IN STOCK 		$1.36 1
9D319 WJU500430
BRACKET
From: 7A000001 		$20.20 1
9N103A PIB500052
COOLER - FUEL
To: 6A999999 		$298.79 1
9N103B PIB500120
COOLER - FUEL 		$189.69 1
9N103C PIB500210
COOLER - FUEL
Includes Mounting Bracket / From: 7A000001 		$191.88 1
8260A PIH500091
HOSE - RADIATOR
Cooler To Rad Assy 		$36.85 1
8260B PIH500130
HOSE - RADIATOR
Cooler To Nylon Pipe 		$83.50 1
