Name: Fuel Tank & Related Parts (Page A, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 4.7 (1 reviews)

Fuel Tank & Related Parts (Page A, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Tank & Related Parts (Page A, With 3 Vent Pipes, Vehicles With Original Fuel Tank) (Lion...

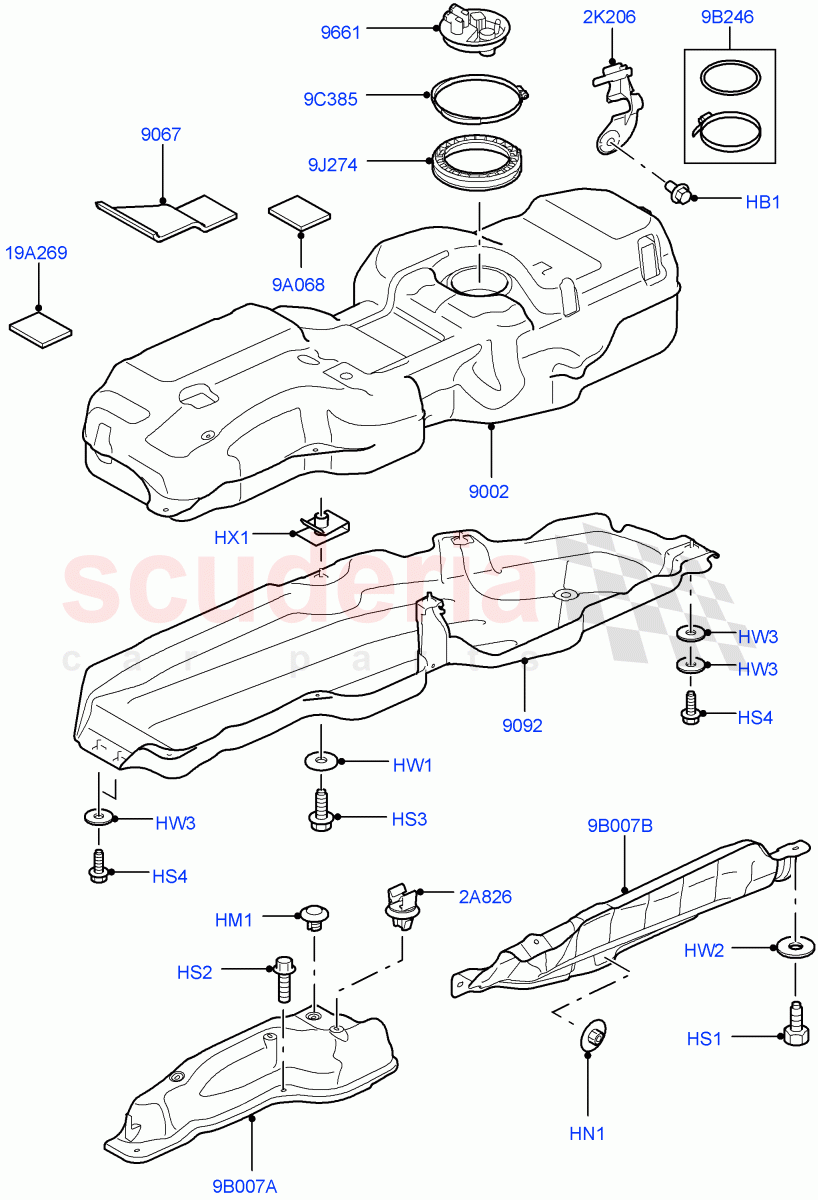

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SN106127L	BOLT	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	$5.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.68	IN STOCK
	WYH500050	NUT - LOCKING	$2.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	$2.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP500070	SCREW	$9.48	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110007L	WASHER	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005624	RESTRICTOR	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110006	WASHER	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	WHK500210	TANK - FUEL	$836.68	To Order
	WHK500200	TANK - FUEL	$836.68	To Order
	WHK500147	TANK - FUEL	$1,290.73	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK500011	INSULATOR	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	WFN500021	STRAP - FUEL TANK	$211.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WGC500022	COVER	$54.04	To Order
	WGC500044	COVER	$54.31	To Order
	WGC500110	COVER	$133.36	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SPV500020	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	WFU500020	BRACKET	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK000050	INSULATOR	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006778	KIT - "O" RING	$97.62	To Order

Photo	Part No	Description	Price (each)	Stock
	WFG000031	RING - RETAINING	$15.13	To Order
	WFG000033	RING - RETAINING	$18.91	To Order

Photo	Part No	Description	Price (each)	Stock
	WFM500011	COLLAR	$104.37	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV500210	FINISHER	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500032	SHIELD	$33.92	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500100	SHIELD	$99.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	SN106127L	BOLT	SN106127L BOLT M6	$0.65	1
HM1	WYQ000010	RIVET - PLASTIC IN STOCK	WYQ000010 RIVET - PLASTIC Plastic, Rivet Type IN STOCK	$5.86	2
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / To: 6A999999 IN STOCK	$2.68	3
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / From: 7A000001 IN STOCK	$2.68	3
HS1	FS106167L	SCREW IN STOCK	FS106167L SCREW M6 X 16MM IN STOCK	$2.22	3
HS2	FS106206	SCREW IN STOCK	FS106206 SCREW M6 X 20MM IN STOCK	$0.96	2
HS3	WYP500070	SCREW	WYP500070 SCREW M10 X 25MM	$9.48	3
HS4	RYG500270	SCREW	RYG500270 SCREW Hexagonal Head, M10 X 25MM	$2.82	3
HW1	WJ110007L	WASHER IN STOCK	WJ110007L WASHER Fuel Tank Guard / 10MM IN STOCK	$0.71	3
HW2	LR005624	RESTRICTOR	LR005624 RESTRICTOR 10 MM / From: 7A000001	$0.37	3
HW3	WJ110006	WASHER	WJ110006 WASHER 10 MM	$1.41	4
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING Fuel Tank Attaching, M10, Nut "U" Spring	$1.64	2
2A826	SPV500020	CLIP	SPV500020 CLIP For	$1.09	2
2K206	WFU500020	BRACKET	WFU500020 BRACKET	$3.30	1
9A068	WFK000050	INSULATOR	WFK000050 INSULATOR	$5.73	1
9B007A	WFZ500032	SHIELD	WFZ500032 SHIELD	$33.92	1
9B007B	WFZ500100	SHIELD	WFZ500100 SHIELD	$99.53	1
9B246	LR006778	KIT - "O" RING	LR006778 KIT - "O" RING	$97.62	1
9C385	WFG000031	RING - RETAINING	WFG000031 RING - RETAINING To: 6A999999	$15.13	1
9C385	WFG000033	RING - RETAINING	WFG000033 RING - RETAINING From: 7A000001	$18.91	1
9J274	WFM500011	COLLAR	WFM500011 COLLAR	$104.37	1
19A269	EDV500210	FINISHER	EDV500210 FINISHER With Fuel Fired Heater	$3.81	1
9002	WHK500210	TANK - FUEL	WHK500210 TANK - FUEL With Fuel Fired Heater / Less Pump, Less Sender Assy. / From: 7A000001	$836.68	1
9002	WHK500200	TANK - FUEL	WHK500200 TANK - FUEL Less Heater / Less Pump, Less Sender Assy. / From: 7A000001	$836.68	1
9002	WHK500147	TANK - FUEL	WHK500147 TANK - FUEL To: 6A999999	$1,290.73	1
9067	WFK500011	INSULATOR	WFK500011 INSULATOR	$18.86	1
9092	WFN500021	STRAP - FUEL TANK IN STOCK	WFN500021 STRAP - FUEL TANK IN STOCK	$211.11	1
9661	WGC500022	COVER	WGC500022 COVER Less Fuel Heater / To: 6A999999	$54.04	1
9661	WGC500044	COVER	WGC500044 COVER With Fuel Fired Heater / To: 6A999999	$54.31	1
9661	WGC500110	COVER	WGC500110 COVER With Fuel Fired Heater / From: 7A000001	$133.36	1
9661	WGC500120	RETAINER - WEATHERSTRIP	WGC500120 RETAINER - WEATHERSTRIP Less Fuel Heater / From: 7A000001	$176.10	1
