Fuel Lines (Lion Diesel 2.7 V6 (140Kw)) ((V) To6A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) TO6A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167L SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
ESR1600 CLIP - FUEL PIPE SECURING $8.94 To Order
Photo Part No Description Price (each) Stock
WYC100880 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
KYP10002L SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
WJN500025 FILTER - FUEL $130.34 To Order
LR007311 KIT-FUEL FILTER ELEMENT $172.08 To Order
LR010075 KIT - FUEL FILTER ELEMENT $152.85 To Order
Photo Part No Description Price (each) Stock
WJP500644 TUBE $403.85 To Order
WJP500643 PIPE - FUEL $566.87 To Order
Photo Part No Description Price (each) Stock
WJP001306 PIPE - FUEL $74.00 To Order
Photo Part No Description Price (each) Stock
WJP001315 Tube - Fuel Enquire To Order
WJP001316 PIPE - FUEL $118.91 To Order
Photo Part No Description Price (each) Stock
WJP500275 PIPE - FUEL $61.20 To Order
Photo Part No Description Price (each) Stock
WJN500056 FILTER - FUEL $165.13 To Order
Photo Part No Description Price (each) Stock
UKC3796L CLAMP $1.14 To Order
Photo Part No Description Price (each) Stock
KYC500020 CLIP $5.95 To Order
Photo Part No Description Price (each) Stock
WJU500071 BRACKET $34.47 To Order
Photo Part No Description Price (each) Stock
WJU500081 BRACKET $0.57 To Order
Photo Part No Description Price (each) Stock
WJC500140 CLIP $6.07 To Order
Photo Part No Description Price (each) Stock
WJC500060 CLIP $5.19 To Order
Photo Part No Description Price (each) Stock
WJC500100 CLIP - FUEL PIPE SECURING $6.90 To Order
Photo Part No Description Price (each) Stock
WFP500078 PIPE - FUEL $98.05 To Order
Photo Part No Description Price (each) Stock
WJP500385 PIPE - FUEL $40.23 To Order
View All

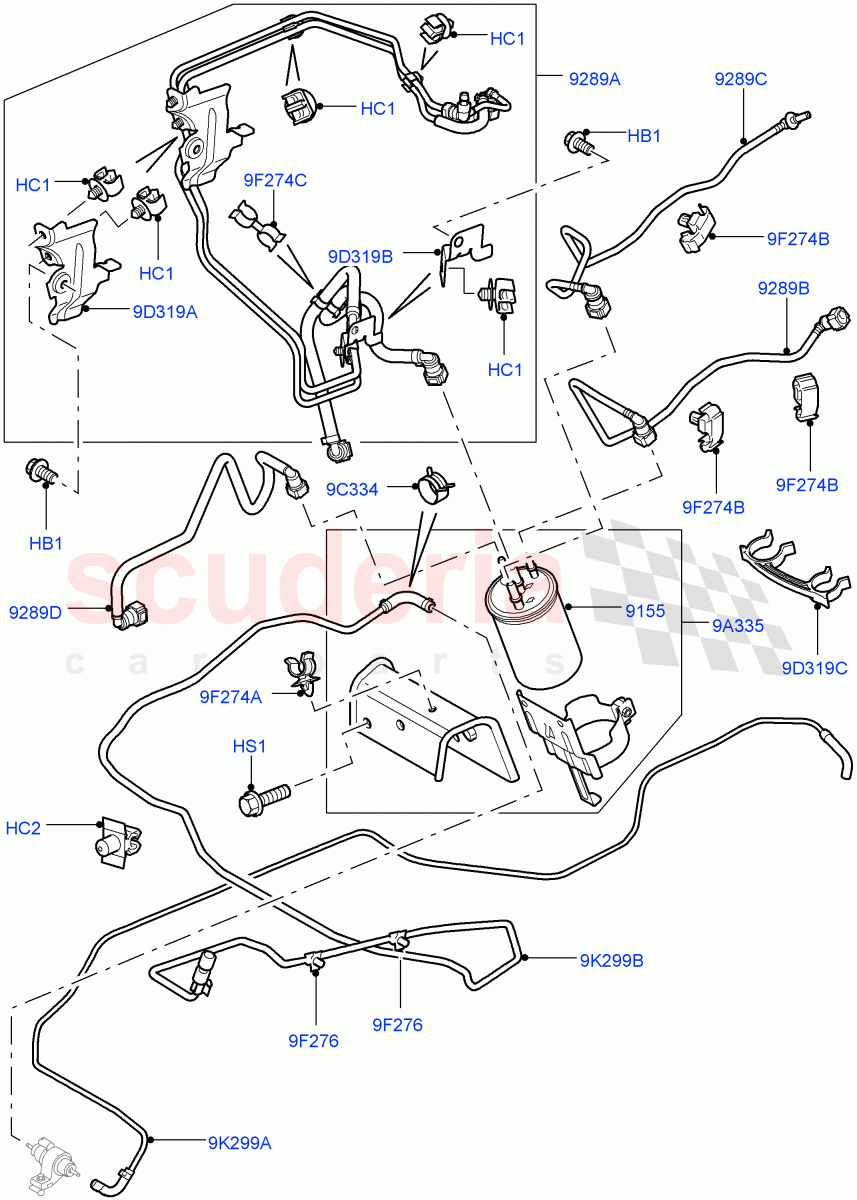

Fuel Lines (Lion Diesel 2.7 V6 (140KW)) ((V) TO6A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167L
SCREW
M8 X 16MM 		$0.77 2
HC1 ESR1600
CLIP - FUEL PIPE SECURING
Double 		$8.94 5
HC2 WYC100880
CLIP
With Fuel Fired Heater / Tube Support 		$1.36 2
HS1 KYP10002L
SCREW
Self Tapping 		$1.21 2
9A335 WJN500056
FILTER - FUEL
With Filter 		$165.13 1
9C334 UKC3796L
CLAMP 		$1.14 2
9D319A WJU500071
BRACKET
To: 6A999999 		$34.47 1
9D319B WJU500081
BRACKET
To: 6A999999 		$0.57 1
9F274A WJC500140
CLIP 		$6.07 1
9F274B WJC500060
CLIP 		$5.19 3
9F274C WJC500100
CLIP - FUEL PIPE SECURING 		$6.90 1
9F276 KYC500020
CLIP
With Fuel Fired Heater / For 		$5.95 7
9K299A WFP500078
PIPE - FUEL
With Fuel Fired Heater 		$98.05 1
9K299B WJP500385
PIPE - FUEL
With Fuel Fired Heater / To: 6A999999 		$40.23 1
9155 WJN500025
FILTER - FUEL
Kit / To: 5A999999 		$130.34 1
9155 LR007311
KIT-FUEL FILTER ELEMENT
Kit / From: 6A000001 / To: 6A499999 		$172.08 1
9155 LR010075
KIT - FUEL FILTER ELEMENT
Kit / From: 6A500000 / To: 6A999999 		$152.85 1
9289A WJP500644
TUBE
From: 6A913010 		$403.85 1
9289A WJP500643
PIPE - FUEL
To: 6A913009 		$566.87 1
9289B WJP001306
PIPE - FUEL 		$74.00 1
9289C WJP001315
Tube - Fuel
To: 5A914111 		- 1 Enquire
9289C WJP001316
PIPE - FUEL
From: 5A341437 / To: 5A914112 		$118.91 1
9289D WJP500275
PIPE - FUEL 		$61.20 1
