Airbag System (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Airbag System (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR123106 BOLT AND WASHER - HEX.HEAD $1.11 To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR138009 BOLT $1.88 To Order
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. $0.52 To Order
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. $1.03 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR016626 SCREW $1.47 To Order
Photo Part No Description Price (each) Stock
LR136864 AIR BAG - PEDESTRIAN PROTECTION $985.47 To Order
Photo Part No Description Price (each) Stock
LR139831 MODULE - AIR BAG $553.46 IN STOCK
Photo Part No Description Price (each) Stock
LR043878 SENSOR - SIDE AIR BAG $130.36 To Order
Photo Part No Description Price (each) Stock
LR110730 KIT - RESTRAINT CIRCUIT REPAIR $547.11 To Order
Photo Part No Description Price (each) Stock
LR117948 BRACKET - AIR BAG $12.09 To Order
LR117949 BRACKET - AIR BAG $13.02 To Order
Photo Part No Description Price (each) Stock
LR115832 AIR BAG - CURTAIN $466.80 To Order
LR115834 AIR BAG - CURTAIN $466.80 To Order
Photo Part No Description Price (each) Stock
LR115919 ACTUATOR - PEDESTRIAN PROTECTION $64.09 To Order
Photo Part No Description Price (each) Stock
LR138561 SENSOR - AIR BAG $143.18 To Order
Photo Part No Description Price (each) Stock
LR118238 SENSOR - PEDESTRIAN IMPACT $91.58 To Order
Photo Part No Description Price (each) Stock
LR135695 BRACKET - AIR BAG $68.09 To Order
LR147797 BRACKET - AIR BAG $68.09 To Order
LR136976 BRACKET - AIR BAG $62.14 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR139179 BRACKET - AIR BAG $70.67 To Order
LR117792 BRACKET - AIR BAG $70.77 To Order
LR147796 BRACKET - AIR BAG $68.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117793 BRACKET - AIR BAG $66.57 To Order
Photo Part No Description Price (each) Stock
LR152080 AIR BAG - PASSENGER $779.71 To Order
Photo Part No Description Price (each) Stock
LR115809 AIR BAG - KNEE $514.29 To Order
LR115828 AIR BAG - KNEE $425.39 To Order
Photo Part No Description Price (each) Stock
LR139698 MODULE - AIR BAG $1,070.70 To Order
LR139701 MODULE - AIR BAG $1,159.91 To Order
LR139705 MODULE - AIR BAG $1,159.91 To Order
Photo Part No Description Price (each) Stock
LR117936 SIDE AIR BAG $354.64 To Order
LR126311 SIDE AIR BAG $412.16 To Order
LR117937 SIDE AIR BAG $374.96 To Order
...and 1 more part variants. See table on right for more details.
View All

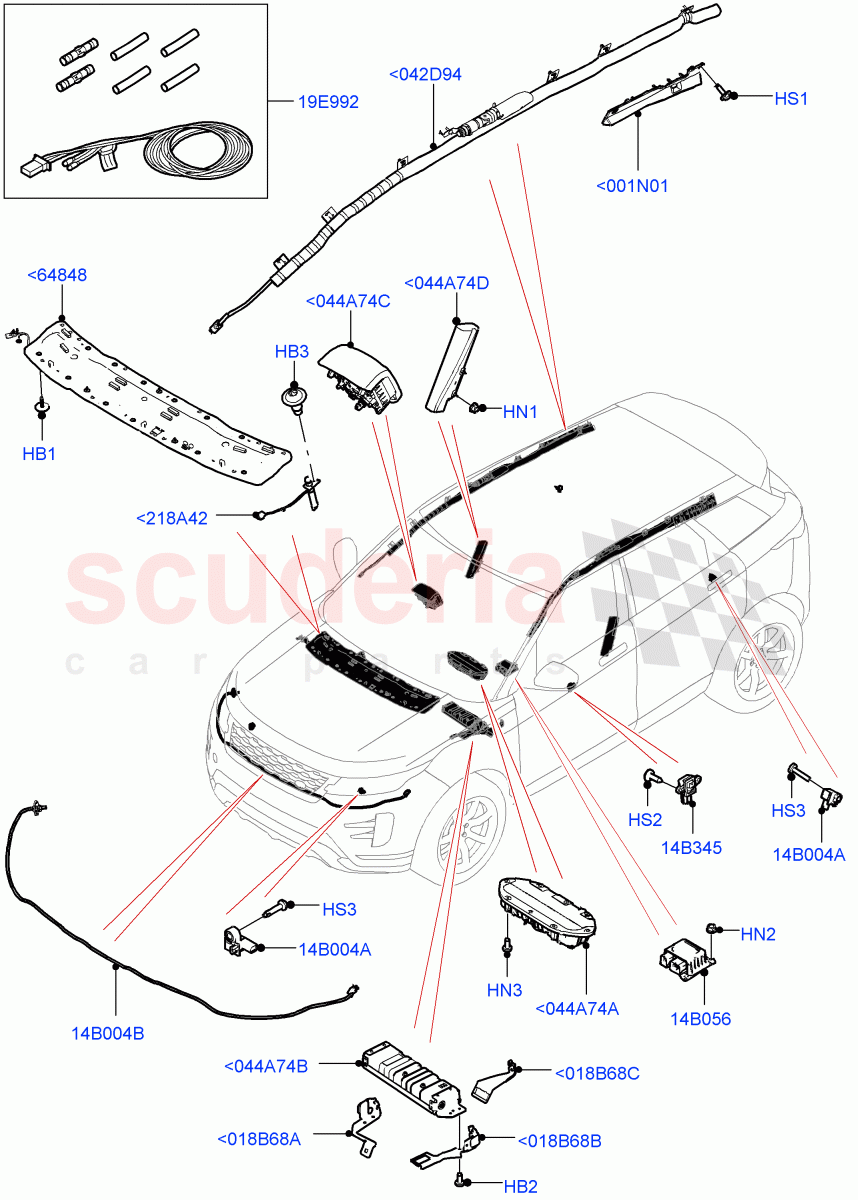

Airbag System (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01 LR117948
BRACKET - AIR BAG
RH, Curtain Airbag 		$12.09 1
<001N01 LR117949
BRACKET - AIR BAG
LH, Curtain Airbag 		$13.02 1
<018B68A LR135695
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Outer 		$68.09 1
<018B68A LR147797
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Inner, Passenger 		$68.09 1
<018B68A LR136976
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Inner 		$62.14 1
<018B68A LR117797
BRACKET - AIR BAG
RHD, Seatbelt Pyrotechnic Lap Pret. RHD / Driver, Knee Airbag, RH - Outer 		$67.37 1
<018B68B LR139179
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Outer 		$70.67 1
<018B68B LR117792
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, RH - Inner 		$70.77 1
<018B68B LR147796
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Inner 		$68.36 1
<018B68B LR135900
BRACKET - AIR BAG
RHD, Seatbelt Pyrotechnic Lap Pret. RHD / Knee Airbag, LH - Outer, Passenger 		$65.91 1
<018B68C LR117793
BRACKET - AIR BAG
LHD, With Head Impact Crash Criteria / NAS Market 		$66.57 1
<042D94 LR115832
AIR BAG - CURTAIN
RH 		$466.80 1
<042D94 LR115834
AIR BAG - CURTAIN
LH 		$466.80 1
<044A74A LR152080
AIR BAG - PASSENGER
Passenger 		$779.71 1
<044A74B LR115809
AIR BAG - KNEE
Seatbelt Lock Retraction-Automatic / RH, Knee Airbag 		$514.29 1
<044A74B LR115828
AIR BAG - KNEE
Seatbelt Lock Retraction-Automatic / LH, Knee Airbag 		$425.39 1
<044A74C LR139698
MODULE - AIR BAG
2.0L AJ21D4 Diesel Mid, IP Facia Contrast-Deep Garnet/Ebony, Steering Wheel - Suedecloth / Driver 		$1,070.70 1
<044A74C LR139701
MODULE - AIR BAG
2.0L AJ20P4 Petrol E100 PTA, Colour Keyed Steering Wheel, I/P Facia Contrast - Cloud/Ebony / Driver 		$1,159.91 1
<044A74C LR139705
MODULE - AIR BAG
2.0L AJ20P4 Petrol E100 PTA, I/P Facia Contrast - Ebony Black, Strng Whl-Split Rim Lthr w/Ltr DAB / Driver 		$1,159.91 1
<044A74D LR117936
SIDE AIR BAG
Sensor - Occupant Classification / RH, Side 		$354.64 1
<044A74D LR126311
SIDE AIR BAG
Sensor-Occ W/out Pass Airbag Cutoff / RH, Side 		$412.16 1
<044A74D LR117937
SIDE AIR BAG
Sensor - Occupant Classification / LH, Side 		$374.96 1
<044A74D LR126312
SIDE AIR BAG
Sensor-Occ W/out Pass Airbag Cutoff / LH, Side 		$412.16 1
<218A42 LR115919
ACTUATOR - PEDESTRIAN PROTECTION
Deployable Bonnet, With Argent Front Fenders / RH/LH 		$64.09 2
<64848 LR136864
AIR BAG - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag 		$985.47 1
HB1 LR123106
BOLT AND WASHER - HEX.HEAD
Deployable Bonnet/Scuttle Abag / M6 x 18MM 		$1.11 12
HB2 XYG500160
BOLT
Seatbelt Lock Retraction-Automatic / Knee Airbag, M6 x 12MM, Torx
IN STOCK 		$0.92 8
HB3 LR138009
BOLT
M6 x 12mm 		$1.88 2
HN1 LR000046
NUT - HEX.
Hexagonal Head, M6, With Front Seat Side Airbag 		$0.52 4
HN2 LR031341
NUT - HEX.
Air Bag Monitor, Hexagonal Head, M6 		$1.03 3
HN3 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, Passenger Airbag
IN STOCK 		$0.44 8
HS1 FYP500550
SCREW
Curtain Airbag, Hexagonal Head, M6 X 20MM 		$1.05 4
HS2 VYP500060
SCREW
4.8 X 16MM, For Side Airbags, Sensor, Torx
IN STOCK 		$0.47 4
HS3 LR016626
SCREW
Crash Sensor, M6 X 21MM, Torx 		$1.47 4
14B004A LR138561
SENSOR - AIR BAG
Front, RH/LH 		$143.18 2
14B004B LR118238
SENSOR - PEDESTRIAN IMPACT
Deployable Bonnet / Bumper 		$91.58 1
14B056 LR139831
MODULE - AIR BAG
IN STOCK 		$553.46 1
14B345 LR043878
SENSOR - SIDE AIR BAG
"B" Pillar, RH/LH 		$130.36 2
19E992 LR110730
KIT - RESTRAINT CIRCUIT REPAIR 		$547.11 1
