Side Trim (Sill) (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Side Trim (Sill) (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038293 CLIP - CENTRE CONSOLE $1.11 To Order
LR038293 CLIP - CENTRE CONSOLE $1.11 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
DYH500010 NUT $3.61 To Order
DYH500010 NUT $3.61 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR138499 TREADPLATE $214.11 To Order
LR138507 TREADPLATE $202.97 To Order
LR138508 TREADPLATE $338.02 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115810 TREADPLATE $14.77 To Order
LR115823 TREADPLATE $103.37 To Order
LR115826 TREADPLATE $13.59 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115902 PANEL - "B" PILLAR - INNER $204.48 To Order
LR115903 PANEL - "B" PILLAR - INNER $204.48 To Order
Photo Part No Description Price (each) Stock
LR137751 SUPPORT - DOOR SCUFF $29.76 To Order
LR137752 SUPPORT - DOOR SCUFF $29.76 To Order
Photo Part No Description Price (each) Stock
LR115853 SUPPORT - DOOR SCUFF $29.76 To Order
LR115859 SUPPORT - DOOR SCUFF $29.57 To Order
View All

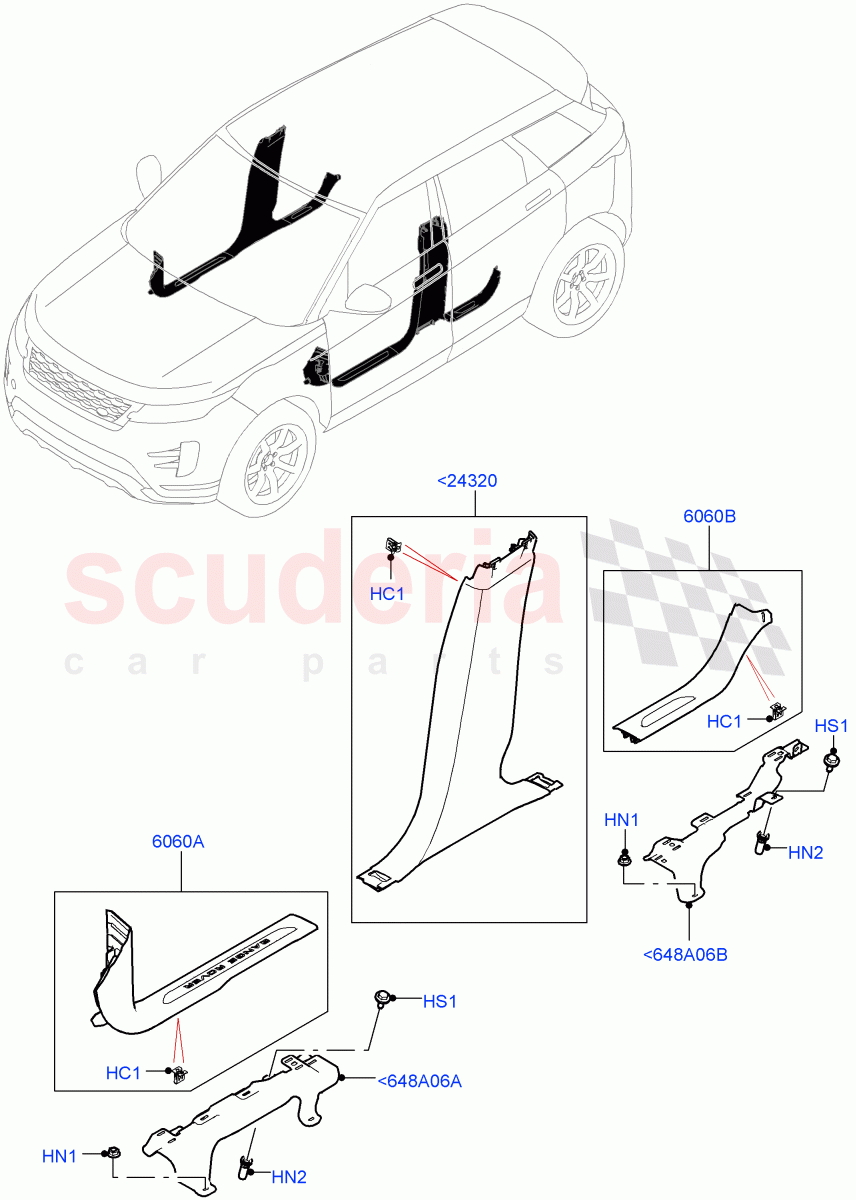

Side Trim (Sill) (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<648A06A LR137751
SUPPORT - DOOR SCUFF
RH, Front 		$29.76 1
<648A06A LR137752
SUPPORT - DOOR SCUFF
LH, Front 		$29.76 1
<648A06B LR115853
SUPPORT - DOOR SCUFF
RH, Rear 		$29.76 1
<648A06B LR115859
SUPPORT - DOOR SCUFF
LH, Rear 		$29.57 1
<24320 LR115902
PANEL - "B" PILLAR - INNER
RH 		$204.48 1
<24320 LR115903
PANEL - "B" PILLAR - INNER
LH 		$204.48 1
HC1 LR038293
CLIP - CENTRE CONSOLE
"A" Pillar, 1.35 X 6 X 22 X 0.7 - 1.2 		$1.11 14
HC1 LR038293
CLIP - CENTRE CONSOLE
"B" Pillar, 1.35 X 6 X 22 X 0.7 - 1.2 		$1.11 12
HN1 FN106046
NUT - HEX.
Front, Hexagonal Head, M6
IN STOCK 		$1.47 4
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6, Rear
IN STOCK 		$1.47 2
HN2 DYH500010
NUT
M6, Rear 		$3.61 8
HN2 DYH500010
NUT
Front, M6 		$3.61 4
HS1 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM, Rear 		$0.61 8
HS1 KYP500400
SCREW AND WASHER
Front, Hexagonal Head, M6 X 16MM 		$0.61 4
6060A LR138499
TREADPLATE
Badge - HST, Front Scuff Plates - Illuminated / RH, Front 		$214.11 1
6060A LR138507
TREADPLATE
BADGE - EVOQUE R DYNAMIC, Front Door Scuff Plate - Chrome / RH, Front 		$202.97 1
6060A LR138508
TREADPLATE
BADGE - EVOQUE R DYNAMIC, Front Scuff Plates - Illuminated / RH, Front 		$338.02 1
6060A LR138519
TREADPLATE
BADGE - EVOQUE, Side Door Scuff Plates / LH, Front 		$55.38 1
6060A LR138520
TREADPLATE
BADGE - EVOQUE, Front Door Scuff Plate - Chrome / LH, Front 		$102.33 1
6060A LR138521
TREADPLATE
Badge - HST, Front Scuff Plates - Illuminated / LH, Front 		$214.11 1
6060A LR138534
TREADPLATE
BADGE - EVOQUE R DYNAMIC, Front Door Scuff Plate - Chrome / LH, Front 		$202.97 1
6060A LR138536
TREADPLATE
BADGE - EVOQUE R DYNAMIC, Front Scuff Plates - Illuminated / LH, Front 		$337.82 1
6060A LR138497
TREADPLATE
BADGE - EVOQUE, Side Door Scuff Plates / RH, Front 		$55.38 1
6060A LR138498
TREADPLATE
BADGE - EVOQUE, Front Door Scuff Plate - Chrome, LHD / RH, Front 		$102.33 1
6060B LR115810
TREADPLATE
Side Door Scuff Plates / RH, Rear 		$14.77 1
6060B LR115823
TREADPLATE
Front Scuff Plates - Illuminated / RH, Rear 		$103.37 1
6060B LR115826
TREADPLATE
Side Door Scuff Plates / LH, Rear 		$13.59 1
6060B LR115827
TREADPLATE
Side Door Treadplate-Illumin W/Logo / LH, Rear 		$103.37 1
