Airbag System (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Airbag System (Halewood (UK))

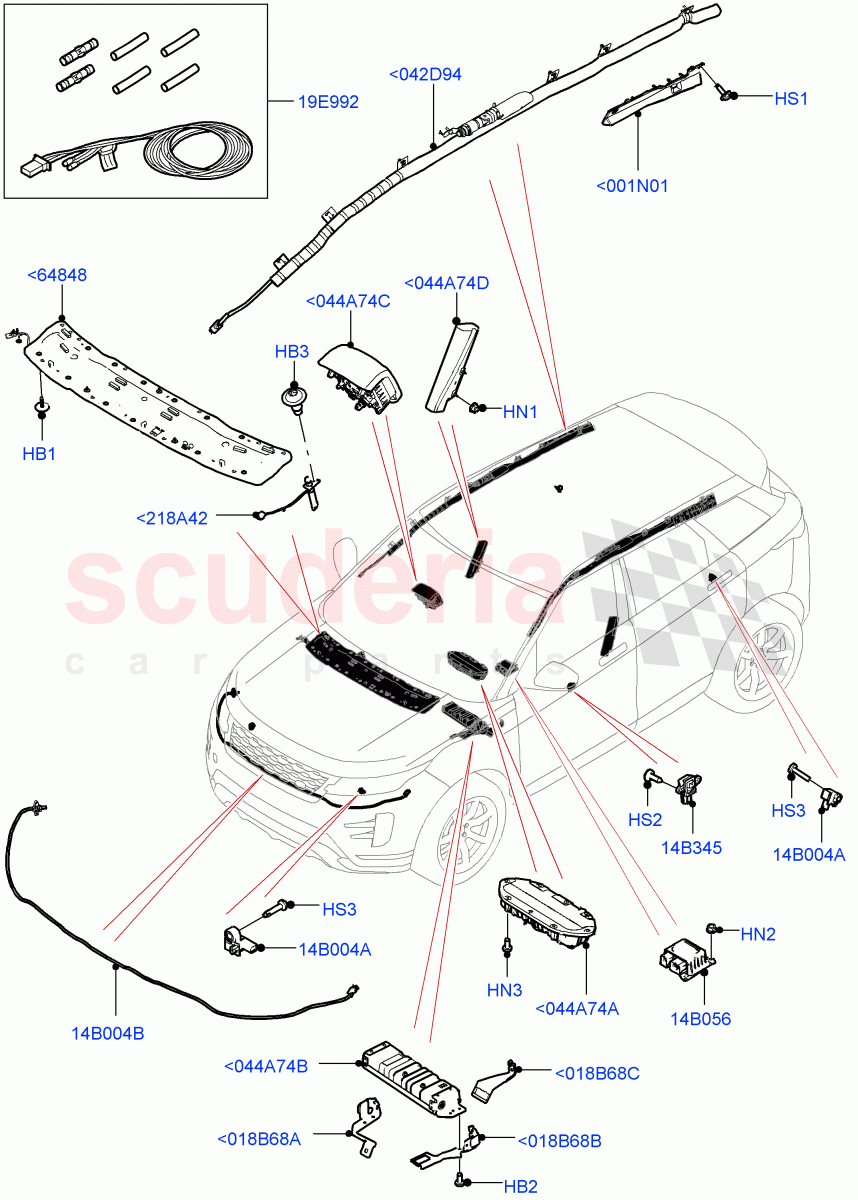

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR123106 BOLT AND WASHER - HEX.HEAD $1.10 To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.91 IN STOCK
XYG500160 BOLT $0.91 IN STOCK
Photo Part No Description Price (each) Stock
LR138009 BOLT $1.87 To Order
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. $0.52 To Order
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. $1.02 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.46 IN STOCK
Photo Part No Description Price (each) Stock
LR016626 SCREW $1.46 To Order
Photo Part No Description Price (each) Stock
LR122991 AIR BAG - PEDESTRIAN PROTECTION $978.06 To Order
LR136864 AIR BAG - PEDESTRIAN PROTECTION $978.06 To Order
Photo Part No Description Price (each) Stock
LR114876 MONITOR - AIRBAG DIAGNOSTIC MODULE $756.03 To Order
LR138559 SENSOR - AIR BAG $684.92 To Order
LR139831 MODULE - AIR BAG $549.30 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR043878 SENSOR - SIDE AIR BAG $129.38 To Order
Photo Part No Description Price (each) Stock
LR110730 KIT - RESTRAINT CIRCUIT REPAIR $543.00 To Order
Photo Part No Description Price (each) Stock
LR117948 BRACKET - AIR BAG $12.00 To Order
LR117949 BRACKET - AIR BAG $12.92 To Order
Photo Part No Description Price (each) Stock
LR115832 AIR BAG - CURTAIN $463.29 To Order
LR115834 AIR BAG - CURTAIN $463.29 To Order
Photo Part No Description Price (each) Stock
LR115919 ACTUATOR - PEDESTRIAN PROTECTION $63.61 To Order
Photo Part No Description Price (each) Stock
LR101226 SENSOR - AIR BAG $142.11 To Order
LR138561 SENSOR - AIR BAG $142.11 To Order
Photo Part No Description Price (each) Stock
LR118238 SENSOR - PEDESTRIAN IMPACT $90.89 To Order
Photo Part No Description Price (each) Stock
LR117797 BRACKET - AIR BAG $66.87 To Order
LR117789 BRACKET - AIR BAG $64.96 To Order
LR117796 BRACKET - AIR BAG $67.58 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117792 BRACKET - AIR BAG $70.24 To Order
LR117795 BRACKET - AIR BAG $67.44 To Order
LR117794 BRACKET - AIR BAG $64.96 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117793 BRACKET - AIR BAG $66.07 To Order
Photo Part No Description Price (each) Stock
LR133328 AIR BAG - PASSENGER $812.50 To Order
LR152080 AIR BAG - PASSENGER $773.85 To Order
Photo Part No Description Price (each) Stock
LR115809 AIR BAG - KNEE $510.42 To Order
LR115809 AIR BAG - KNEE $510.42 To Order
LR115828 AIR BAG - KNEE $422.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR139698 MODULE - AIR BAG $1,062.65 To Order
LR139699 MODULE - AIR BAG $949.65 To Order
LR139701 MODULE - AIR BAG $1,151.19 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117936 SIDE AIR BAG $351.98 To Order
LR117937 SIDE AIR BAG $372.14 To Order
LR126311 SIDE AIR BAG $409.06 To Order
...and 1 more part variants. See table on right for more details.
View All
Airbag System (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01 LR117948
BRACKET - AIR BAG
RH, Curtain Airbag 		$12.00 1
<001N01 LR117949
BRACKET - AIR BAG
LH, Curtain Airbag 		$12.92 1
<018B68A LR117797
BRACKET - AIR BAG
RHD, Sensor - Occupant Classification / Driver, Knee Airbag, RH - Outer / To: KH999999 		$66.87 1
<018B68A LR117789
BRACKET - AIR BAG
LHD, Sensor - Occupant Classification / Knee Airbag, Passenger, RH - Outer / To: KH999999 		$64.96 1
<018B68A LR117796
BRACKET - AIR BAG
LHD, Sensor - Occupant Classification / Driver, Knee Airbag, LH - Inner / To: KH999999 		$67.58 1
<018B68A LR117790
BRACKET - AIR BAG
RHD, Sensor - Occupant Classification / Knee Airbag, LH - Inner, Passenger / To: KH999999 		$67.58 1
<018B68A LR136976
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Inner / From: LH003859 		$61.67 1
<018B68A LR147797
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Inner, Passenger / From: LH121089 		$67.58 1
<018B68A LR135897
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Inner, Passenger / From: LH046963 / To: LH121088 		$67.58 1
<018B68A LR134909
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Outer / From: LH045345 / To: LH047348 		$67.58 1
<018B68A LR135695
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Outer / From: LH047349 		$67.58 1
<018B68A LR117789
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Outer / From: LH000001 / To: LH045344 		$64.96 1
<018B68A LR117790
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Inner, Passenger / From: LH000001 / To: LH046962 		$67.58 1
<018B68A LR117796
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Inner / From: LH000001 / To: LH003858 		$67.58 1
<018B68A LR117797
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, RH - Outer / From: LH000001 		$66.87 1
<018B68B LR117792
BRACKET - AIR BAG
RHD, Sensor - Occupant Classification / Driver, Knee Airbag, RH - Inner / To: KH999999 		$70.24 1
<018B68B LR117795
BRACKET - AIR BAG
RHD, Sensor - Occupant Classification / Knee Airbag, LH - Outer, Passenger / To: KH999999 		$67.44 1
<018B68B LR117794
BRACKET - AIR BAG
LHD, Sensor - Occupant Classification / Knee Airbag, Passenger, RH - Inner / To: KH999999 		$64.96 1
<018B68B LR137207
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Outer / From: LH033467 / To: LH057429 		$12.00 1
<018B68B LR139179
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Outer / From: LH057430 		$70.13 1
<018B68B LR147796
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Inner / From: LH121785 		$67.85 1
<018B68B LR135899
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, Passenger, RH - Inner / From: LH047349 / To: LH121784 		$67.58 1
<018B68B LR135900
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Outer, Passenger / From: LH046963 		$65.41 1
<018B68B LR117791
BRACKET - AIR BAG
LHD, Sensor - Occupant Classification / Driver, Knee Airbag, LH - Outer / To: KH999999 		$64.47 1
<018B68B LR117791
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, LH - Outer / From: LH000001 / To: LH033466 		$64.47 1
<018B68B LR117792
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, RH - Inner / From: LH000001 		$70.24 1
<018B68B LR117794
BRACKET - AIR BAG
LHD, Seatbelt Lock Retraction-Automatic / Driver, Knee Airbag, RH - Inner / From: LH000001 / To: LH047348 		$64.96 1
<018B68B LR117795
BRACKET - AIR BAG
RHD, Seatbelt Lock Retraction-Automatic / Knee Airbag, LH - Outer, Passenger / From: LH000001 / To: LH046962 		$67.44 1
<018B68C LR117793
BRACKET - AIR BAG
LHD, With Head Impact Crash Criteria / NAS Market 		$66.07 1
<042D94 LR115832
AIR BAG - CURTAIN
RH 		$463.29 1
<042D94 LR115834
AIR BAG - CURTAIN
LH 		$463.29 1
<044A74A LR133328
AIR BAG - PASSENGER
Passenger / To: LH999999 		$812.50 1
<044A74A LR152080
AIR BAG - PASSENGER
Passenger / From: MH000001 		$773.85 1
<044A74B LR115809
AIR BAG - KNEE
Sensor - Occupant Classification / RH, Knee Airbag / To: KH999999 		$510.42 1
<044A74B LR115809
AIR BAG - KNEE
Seatbelt Lock Retraction-Automatic / RH, Knee Airbag / From: LH000001 		$510.42 1
<044A74B LR115828
AIR BAG - KNEE
Sensor - Occupant Classification / LH, Knee Airbag / To: KH999999 		$422.19 1
<044A74B LR115828
AIR BAG - KNEE
Seatbelt Lock Retraction-Automatic / LH, Knee Airbag / From: LH000001 		$422.19 1
<044A74C LR139698
MODULE - AIR BAG
2.0L AJ20P4 Petrol Mid PTA, I/P Facia Contrast - Cloud/Ebony, Steering Whl-Soft grain lthr w/PU D / Driver / From: MH000001 / To: NH167038 		$1,062.65 1
<044A74C LR139699
MODULE - AIR BAG
1.5L AJ20P3 Petrol High PHEV, I/P Facia Contrast - Ebony/Blue, S WHL-DUO TONE (LTH) W/PU DAB / Driver / From: MH000001 / To: NH167038 		$949.65 1
<044A74C LR139701
MODULE - AIR BAG
2.0L AJ20P4 Petrol High PTA, Colour Keyed Steering Wheel, I/P Facia Contrast - Cloud/Ebony / Driver / From: MH000001 / To: NH167038 		$1,151.19 1
<044A74C LR139705
MODULE - AIR BAG
2.0L AJ20P4 Petrol High PTA, Colour Keyed Steering Wheel, IP Facia Contrast-Deep Garnet/Ebony / Driver / From: MH000001 / To: NH167038 		$1,151.19 1
<044A74C LR139708
MODULE - AIR BAG
1.5L AJ20P3 Petrol High PHEV, Colour Keyed Steering Wheel, I/P Facia Contrast - Cloud/Ebony / Driver / From: MH000001 / To: NH168006 		$1,058.08 1
<044A74C LR139711
MODULE - AIR BAG
1.5L AJ20P3 Petrol High PHEV, Colour Keyed Steering Wheel, I/P Facia Contrast - Ebony/Blue / Driver / From: MH000001 / To: NH168006 		$1,151.19 1
<044A74C LR133296
MODULE - AIR BAG
IP Facia Contrast-Deep Garnet/Ebony, Steering Wheel - Leather / Chrome / Driver / To: LH999999 		$1,021.57 1
<044A74C LR133297
MODULE - AIR BAG
I/P Facia Contrast - Cloud/Ebony, Steering Wheel - Leather / Chrome / Driver / From: LH008214 / To: LH999999 		$925.80 1
<044A74C LR133295
MODULE - AIR BAG
I/P Facia Contrast - Ebony/Blue, Steering Wheel - Leather / Chrome / Driver / From: LH008214 / To: LH999999 		$992.73 1
<044A74C LR133293
MODULE - AIR BAG
Steering Wheel - Suedecloth / Driver / From: LH022590 / To: LH999999 		$839.42 1
<044A74C LR115714
MODULE - AIR BAG
I/P Facia Contrast - Cloud/Ebony, Steering Wheel - Leather / Chrome / Driver / To: LH008213 		$813.94 1
<044A74C LR115710
MODULE - AIR BAG
I/P Facia Contrast - Ebony/Blue, Steering Wheel - Leather / Chrome / Driver / To: LH008213 		$813.94 1
<044A74C LR115699
MODULE - AIR BAG
Steering Wheel - Suedecloth / Driver / To: LH022589 		$885.59 1
<044A74C LR133294
MODULE - AIR BAG
I/P Facia Contrast - Ebony Black, Steering Wheel - Leather / Chrome / Driver / To: LH999999 		$925.80 1
<044A74C LR172497
Module - Air Bag
2.0L AJ20P4 Petrol E100 PTA, Colour Keyed Steering Wheel, I/P Facia Contrast - Cloud/Ebony / Driver / From: NH167039 		$1,068.88 1
<044A74C LR172498
Module - Air Bag
2.0L AJ21D4 Diesel Mid, Colour Keyed Steering Wheel, IP Facia Contrast-Deep Garnet/Ebony / Driver / From: NH167039 		$1,005.54 1
<044A74C LR172499
Module - Air Bag
1.5L AJ20P3 Petrol High, Colour Keyed Steering Wheel, I/P Facia Contrast - Cloud/Ebony / Driver / From: NH168007 		$1,068.88 1
<044A74C LR172500
Module - Air Bag
1.5L AJ20P3 Petrol High, I/P Facia Contrast - Ebony/Blue, Strng Whl-Split Rim Lthr w/Ltr DAB / Driver / From: NH168007 		$1,068.88 1
<044A74C LR172840
Module - Air Bag
2.0L AJ21D4 Diesel Mid, I/P Facia Contrast - Cloud/Ebony, Steering Wheel - Suedecloth / Driver / From: NH167039 		$986.67 1
<044A74C LR172840
Module - Air Bag
2.0L AJ20P4 Petrol Mid PTA, IP Facia Contrast-Deep Garnet/Ebony, S WHL-DUO TONE (LTH) W/PU DAB / Driver / From: NH167039 / To: NH999999 		$986.67 1
<044A74C LR172841
Module - Air Bag
1.5L AJ20P3 Petrol High, I/P Facia Contrast - Ebony Black, Steering Wheel - Suedecloth / Driver / From: NH167039 		$928.21 1
<044A74C LR172841
Module - Air Bag
1.5L AJ20P3 Petrol High, I/P Facia Contrast - Cloud/Ebony, S WHL-DUO TONE (LTH) W/PU DAB / Driver / From: NH167039 / To: NH999999 		$928.21 1
<044A74D LR117936
SIDE AIR BAG
Sensor - Occupant Classification / RH, Side 		$351.98 1
<044A74D LR117937
SIDE AIR BAG
Sensor - Occupant Classification / LH, Side 		$372.14 1
<044A74D LR126311
SIDE AIR BAG
Sensor-Occ W/out Pass Airbag Cutoff / RH, Side 		$409.06 1
<044A74D LR126312
SIDE AIR BAG
With Occupant Sensor / LH, Side 		$409.06 1
<218A42 LR115919
ACTUATOR - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / RH/LH 		$63.61 2
<64848 LR122991
AIR BAG - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / To: LH057429 		$978.06 1
<64848 LR136864
AIR BAG - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / From: LH057430 		$978.06 1
HB1 LR123106
BOLT AND WASHER - HEX.HEAD
Deployable Bonnet/Scuttle Abag / M6 x 18MM 		$1.10 12
HB2 XYG500160
BOLT
Sensor - Occupant Classification / Knee Airbag, M6 x 12MM, Torx / To: KH999999
IN STOCK 		$0.91 8
HB2 XYG500160
BOLT
Seatbelt Lock Retraction-Automatic / Knee Airbag, M6 x 12MM, Torx / From: LH000001
IN STOCK 		$0.91 8
HB3 LR138009
BOLT
M6 x 12mm 		$1.87 2
HN1 LR000046
NUT - HEX.
Hexagonal Head, M6, With Front Seat Side Airbag 		$0.52 4
HN2 LR031341
NUT - HEX.
Air Bag Monitor, Hexagonal Head, M6 		$1.02 3
HN3 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, Passenger Airbag
IN STOCK 		$0.44 8
HS1 FYP500550
SCREW
Curtain Airbag, Hexagonal Head, M6 X 20MM 		$1.04 4
HS2 VYP500060
SCREW
4.8 X 16MM, For Side Airbags, Sensor, Torx
IN STOCK 		$0.46 4
HS3 LR016626
SCREW
Crash Sensor, M6 X 21MM, Torx 		$1.46 4
14B004A LR101226
SENSOR - AIR BAG
Front, RH/LH / To: LH029674 		$142.11 2
14B004A LR138561
SENSOR - AIR BAG
Front, RH/LH / From: LH029675 		$142.11 2
14B004B LR118238
SENSOR - PEDESTRIAN IMPACT
Deployable Bonnet/Scuttle Abag / Bumper 		$90.89 1
14B056 LR114876
MONITOR - AIRBAG DIAGNOSTIC MODULE
To: LH029674 		$756.03 1
14B056 LR138559
SENSOR - AIR BAG
From: LH029675 / To: LH999999 		$684.92 1
14B056 LR139831
MODULE - AIR BAG
From: MH000001 / To: NH999999
IN STOCK 		$549.30 1
14B056 LR154987
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: PH000001 		$808.28 1
14B345 LR043878
SENSOR - SIDE AIR BAG
"B" Pillar, RH/LH 		$129.38 2
19E992 LR110730
KIT - RESTRAINT CIRCUIT REPAIR 		$543.00 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
