Instrument Panel (Internal Components) (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Instrument Panel (Internal Components) (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006032 BOLT AND WASHER - HEX.HEAD $1.37 To Order
Photo Part No Description Price (each) Stock
LR114228 BOLT AND WASHER - HEX.HEAD $1.76 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
LR032351 PLUG - RUBBER $2.65 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.39 To Order
Photo Part No Description Price (each) Stock
LR030395 SCREW AND WASHER $2.52 To Order
Photo Part No Description Price (each) Stock
LR115136 MOULDING - INSTRUMENT PANEL $143.74 To Order
Photo Part No Description Price (each) Stock
LR117784 BRACKET - INSTRUMENT PANEL $183.01 To Order
Photo Part No Description Price (each) Stock
LR117787 BRACKET - ENERGY ABSORBER $41.38 To Order
Photo Part No Description Price (each) Stock
LR117767 REINFORCEMENT - INSTRUMENT PANEL $526.86 To Order
LR117768 REINFORCEMENT - INSTRUMENT PANEL $526.86 To Order
LR156081 REINFORCEMENT - INSTRUMENT PANEL $510.06 To Order
Photo Part No Description Price (each) Stock
LR117770 BRACKET - INSTRUMENT PANEL $12.62 To Order
LR117771 BRACKET - INSTRUMENT PANEL $12.29 To Order
LR125869 BRACKET - INSTRUMENT PANEL $12.29 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115173 BRACKET - INSTRUMENT PANEL $39.16 To Order
LR129280 BRACKET - INSTRUMENT PANEL $49.23 To Order
View All

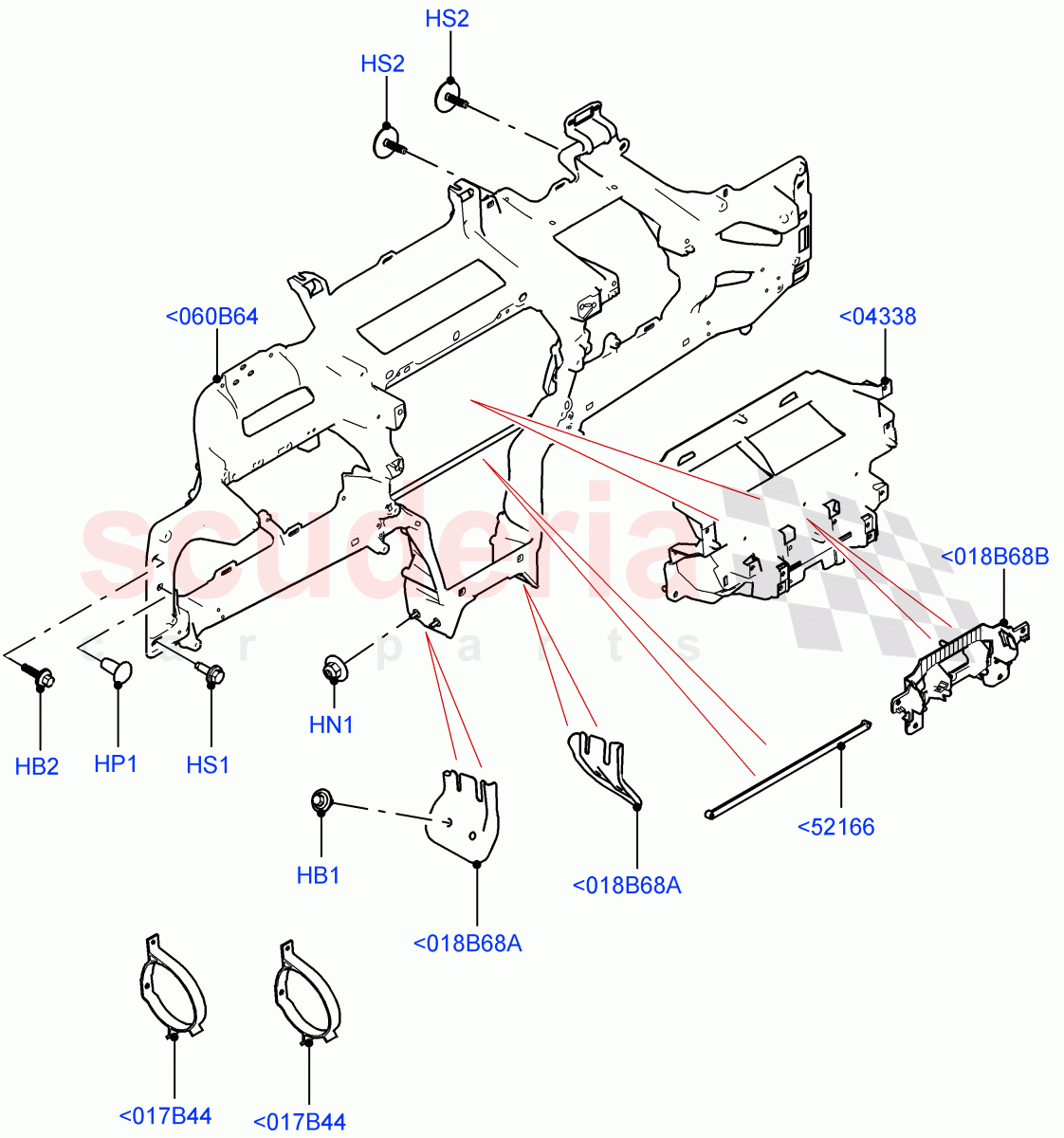

Instrument Panel (Internal Components) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR117787
BRACKET - ENERGY ABSORBER
With Head Impact Crash Criteria 		$41.38 2
<018B68A LR117770
BRACKET - INSTRUMENT PANEL
RH / To: LH007257 		$12.62 1
<018B68A LR117771
BRACKET - INSTRUMENT PANEL
LH / To: LH007257 		$12.29 1
<018B68A LR125869
BRACKET - INSTRUMENT PANEL
RH / From: LH007258 		$12.29 1
<018B68A LR125870
BRACKET - INSTRUMENT PANEL
LH / From: LH007258 		$11.97 1
<018B68B LR115173
BRACKET - INSTRUMENT PANEL
To: LH004348 		$39.16 1
<018B68B LR129280
BRACKET - INSTRUMENT PANEL
From: LH004349 		$49.23 1
<060B64 LR117767
REINFORCEMENT - INSTRUMENT PANEL
LHD 		$526.86 1
<060B64 LR117768
REINFORCEMENT - INSTRUMENT PANEL
RHD / To: MH139051 		$526.86 1
<060B64 LR156081
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: MH139052 		$510.06 1
<04338 LR115136
MOULDING - INSTRUMENT PANEL 		$143.74 1
<52166 LR117784
BRACKET - INSTRUMENT PANEL 		$183.01 1
HB1 LR006032
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M8 X 17MM 		$1.37 4
HB2 LR114228
BOLT AND WASHER - HEX.HEAD
M8 x 27MM 		$1.76 2
HN1 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$0.44 4
HP1 LR032351
PLUG - RUBBER
13 X 3.5, Rubber 		$2.65 2
HS1 RYG500980
SCREW AND WASHER
M8 x 24MM 		$1.39 2
HS2 LR030395
SCREW AND WASHER
M8 x 28MM 		$2.52 2
