Name: Heater/Air Cond.Internal Components (Auxiliary Heater, Nitra Plant Build) (Premium Air Conditioning-Front/Rear) ((V) FROMK2000001)
Rating: 4.5 (1 reviews)

Heater/Air Cond.Internal Components (Auxiliary Heater, Nitra Plant Build) (Premium Air Conditioning-Front/Rear) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Heater/Air Cond.Internal Components (Auxiliary Heater, Nitra Plant Build) (Premium Air...

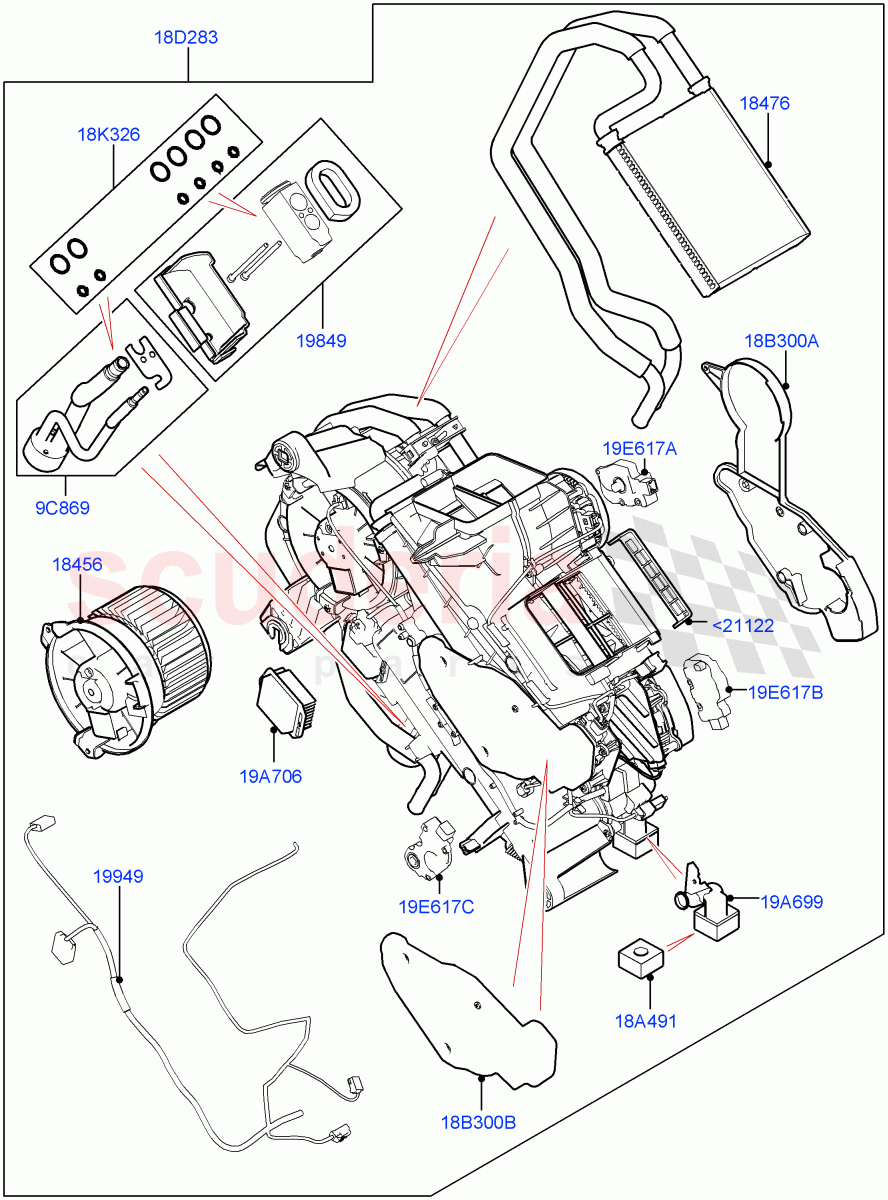

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR035687	MOTOR - HEATER BLOWER	$294.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035640	CORE - HEATER	$543.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072510	VALVE - EVAPORATOR EXPANSION	$323.49	To Order
	LR148071	VALVE - EVAPORATOR EXPANSION	$227.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035641	WIRE - AIR CONDITIONER	$142.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072111	TUBE- A/C EVAPORATOR INLET & OUTLET	$188.34	To Order
	LR131084	TUBE- A/C EVAPORATOR INLET & OUTLET	$173.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036449	PLATE - RETAINING	$110.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036379	KIT - HEATER SEALINGS	$122.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082187	HEATER & EVAPORATOR UNIT	$1,178.84	To Order
	LR148070	HEATER & EVAPORATOR UNIT	$1,352.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036436	KIT - "O" RING	$62.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035745	TUBE - WATER DRAIN	$7.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112161	RESISTOR - HEATER BLOWER MOTOR	$90.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036444	COVER - HEATER	$120.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038339	COVER - HEATER	$90.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082188	STEPPER MOTOR - HEATER	$162.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082190	STEPPER MOTOR - HEATER	$137.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082189	STEPPER MOTOR - HEATER	$167.76	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<21122	LR036449	PLATE - RETAINING	LR036449 PLATE - RETAINING Duct Retainer / From: K2000001	$110.68	1
9C869	LR072111	TUBE- A/C EVAPORATOR INLET & OUTLET	LR072111 TUBE- A/C EVAPORATOR INLET & OUTLET Evaporator Inlet/Outlet, Includes O-Rings / From: K2000001 / To: L2424319	$188.34	1
9C869	LR131084	TUBE- A/C EVAPORATOR INLET & OUTLET	LR131084 TUBE- A/C EVAPORATOR INLET & OUTLET Evaporator Inlet/Outlet, Includes O-Rings / From: L2424320	$173.29	1
18A491	LR036379	KIT - HEATER SEALINGS	LR036379 KIT - HEATER SEALINGS Tube - Water Drain / From: K2000001	$122.37	1
18B300A	LR036444	COVER - HEATER	LR036444 COVER - HEATER RH, With Fixing Parts / From: K2000001	$120.28	1
18B300B	LR038339	COVER - HEATER	LR038339 COVER - HEATER LH, With Fixing Parts / From: K2000001	$90.55	1
18D283	LR082187	HEATER & EVAPORATOR UNIT	LR082187 HEATER & EVAPORATOR UNIT Complete Assembly / From: K2000001 / To: M2445068	$1,178.84	1
18D283	LR148070	HEATER & EVAPORATOR UNIT	LR148070 HEATER & EVAPORATOR UNIT Complete Assembly / From: M2445069	$1,352.61	1
18K326	LR036436	KIT - "O" RING	LR036436 KIT - "O" RING O Ring, Set Of 12 Pieces / From: K2000001	$62.46	1
19A699	LR035745	TUBE - WATER DRAIN	LR035745 TUBE - WATER DRAIN From: K2000001	$7.56	1
19A706	LR112161	RESISTOR - HEATER BLOWER MOTOR	LR112161 RESISTOR - HEATER BLOWER MOTOR Heater Blower / From: K2000001	$90.60	1
19E617A	LR082188	STEPPER MOTOR - HEATER	LR082188 STEPPER MOTOR - HEATER Mode Air Door Control, With Fixing Parts / From: K2000001	$162.38	1
19E617B	LR082190	STEPPER MOTOR - HEATER	LR082190 STEPPER MOTOR - HEATER RH, Air Mix Air Door Control, With Fixing Parts / From: K2000001	$137.98	1
19E617C	LR082189	STEPPER MOTOR - HEATER	LR082189 STEPPER MOTOR - HEATER LH, Air Mix Air Door Control, With Fixing Parts / From: K2000001	$167.76	1
18456	LR035687	MOTOR - HEATER BLOWER	LR035687 MOTOR - HEATER BLOWER From: K2000001	$294.56	1
18476	LR035640	CORE - HEATER	LR035640 CORE - HEATER With Fixing Parts, With Pipes / From: K2000001	$543.41	1
19849	LR072510	VALVE - EVAPORATOR EXPANSION	LR072510 VALVE - EVAPORATOR EXPANSION Evaporator Expansion Valve / From: K2000001 / To: M2445068	$323.49	1
19849	LR148071	VALVE - EVAPORATOR EXPANSION	LR148071 VALVE - EVAPORATOR EXPANSION Evaporator Expansion Valve / From: M2445069	$227.29	1
19949	LR035641	WIRE - AIR CONDITIONER	LR035641 WIRE - AIR CONDITIONER Less Sensor / From: K2000001	$142.87	1

Heater/Air Cond.internal Components (Auxiliary Heater, Nitra Plant Build) (Premium Air...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
