Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low Mt Row, 3.0 V6 D...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR005074 BOLT $1.15 To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE $3.32 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.31 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.29 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.52 To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
FS105106 SCREW $0.78 IN STOCK
Photo Part No Description Price (each) Stock
LR062424 CONDENSER $614.17 To Order
LR181384 CONDENSER $415.15 IN STOCK
Photo Part No Description Price (each) Stock
LR086045 KIT - VALVE REPAIR $175.01 To Order
Photo Part No Description Price (each) Stock
LR062331 BRACKET - RADIATOR $17.91 To Order
Photo Part No Description Price (each) Stock
LR063161 BRACKET - INTERCOOLER RADIATOR $6.40 To Order
Photo Part No Description Price (each) Stock
LR063162 BRACKET - INTERCOOLER RADIATOR $6.40 To Order
Photo Part No Description Price (each) Stock
LR063164 BRACKET - INTERCOOLER RADIATOR $6.16 To Order
Photo Part No Description Price (each) Stock
LR063165 BRACKET - INTERCOOLER RADIATOR $6.49 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $238.41 To Order
Photo Part No Description Price (each) Stock
LR082205 HOSE - AIR CONDITIONING $200.48 To Order
Photo Part No Description Price (each) Stock
LR086044 COMPRESSOR - AIR CONDITIONING $1,393.93 To Order
LR112584 COMPRESSOR - AIR CONDITIONING $1,710.44 To Order
Photo Part No Description Price (each) Stock
LR013376 BRACKET - COMPRESSOR $139.90 IN STOCK
Photo Part No Description Price (each) Stock
LR061874 TUBE - COMPRESSOR DELIVERY $220.69 To Order
Photo Part No Description Price (each) Stock
LR061873 TUBE - COMPRESSOR LINE $220.69 To Order
View All

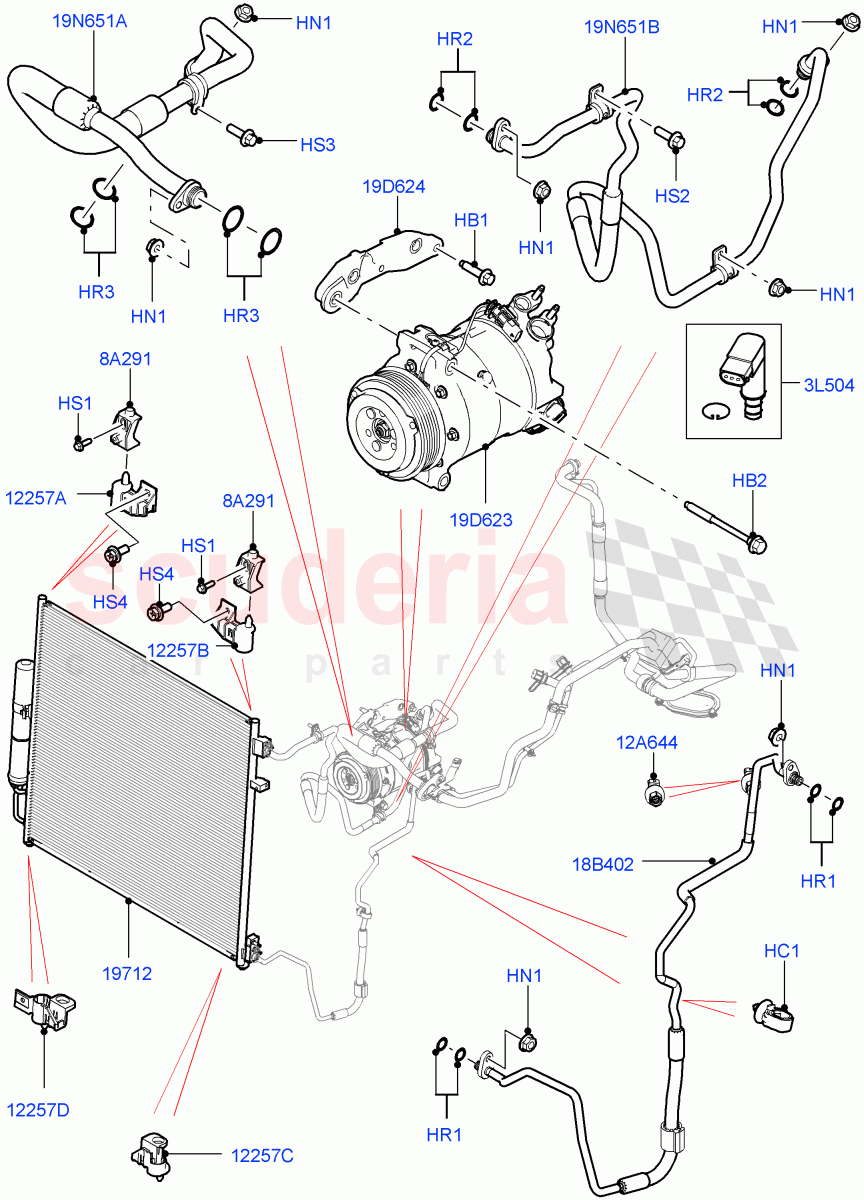

Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500290
BOLT - HEX.HEAD
HEX Flange, Hexagonal Head, M8 x 30MM
IN STOCK 		$0.52 2
HB2 LR005074
BOLT
HEX Flange, Hexagonal Head, M8 X 96.5 		$1.15 3
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose 		$3.32 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 7
HR1 LR044466
O-RING
7.65 X 1.78 		$4.31 4
HR2 LR054871
O-RING
10.82MM X 1.78MM 		$3.29 4
HR3 LR054870
O-RING
16.5 X 1.78MM 		$3.52 4
HS1 LR018707
SCREW
6X20, Hexagonal Head 		$1.04 2
HS2 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.95 1
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.62 1
HS4 FS105106
SCREW
M5 X 10MM
IN STOCK 		$0.78 2
3L504 LR086045
KIT - VALVE REPAIR
Includes A/C Compressor Control Valve And Snap Ring / To: HA000910 		$175.01 1
8A291 LR062331
BRACKET - RADIATOR
Air Conditioning Condenser 		$17.91 2
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor 		$238.41 1
18B402 LR082205
HOSE - AIR CONDITIONING
Condenser Outlet 		$200.48 1
19D623 LR086044
COMPRESSOR - AIR CONDITIONING
To: HA000910 		$1,393.93 1
19D623 LR112584
COMPRESSOR - AIR CONDITIONING
From: HA000911 		$1,710.44 1
19D624 LR013376
BRACKET - COMPRESSOR
Air Conditioning Compressor Bracket
IN STOCK 		$139.90 1
19N651A LR061874
TUBE - COMPRESSOR DELIVERY
Compressor Inlet 		$220.69 1
19N651B LR061873
TUBE - COMPRESSOR LINE
Condenser Inlet Tube 		$220.69 1
12257A LR063161
BRACKET - INTERCOOLER RADIATOR
RH Upper 		$6.40 1
12257B LR063162
BRACKET - INTERCOOLER RADIATOR
LH Upper 		$6.40 1
12257C LR063164
BRACKET - INTERCOOLER RADIATOR
LH Lower 		$6.16 1
12257D LR063165
BRACKET - INTERCOOLER RADIATOR
RH Lower 		$6.49 1
19712 LR062424
CONDENSER
To: HA025896 		$614.17 1
19712 LR181384
CONDENSER
From: HA025897
IN STOCK 		$415.15 1
