Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, 2.0L...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005074 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE $3.34 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.34 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.31 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.54 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR093455 CONDENSER $409.51 To Order
LR097269 CONDENSER $397.58 To Order
LR100570 CONDENSER $336.71 To Order
Photo Part No Description Price (each) Stock
LR086045 KIT - VALVE REPAIR $176.00 To Order
Photo Part No Description Price (each) Stock
LR062331 BRACKET - RADIATOR $18.01 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $239.75 To Order
Photo Part No Description Price (each) Stock
LR082206 HOSE - AIR CONDITIONING $187.34 To Order
LR099645 HOSE - AIR CONDITIONING $185.92 To Order
Photo Part No Description Price (each) Stock
LR086043 COMPRESSOR - AIR CONDITIONING $1,478.90 To Order
LR112585 COMPRESSOR - AIR CONDITIONING $1,473.56 To Order
Photo Part No Description Price (each) Stock
LR085580 TUBE - A/C COMPRESSOR $168.08 To Order
Photo Part No Description Price (each) Stock
LR085584 TUBE - A/C COMPRESSOR $191.16 To Order
LR099647 TUBE - COMPRESSOR LINE $209.31 To Order
View All

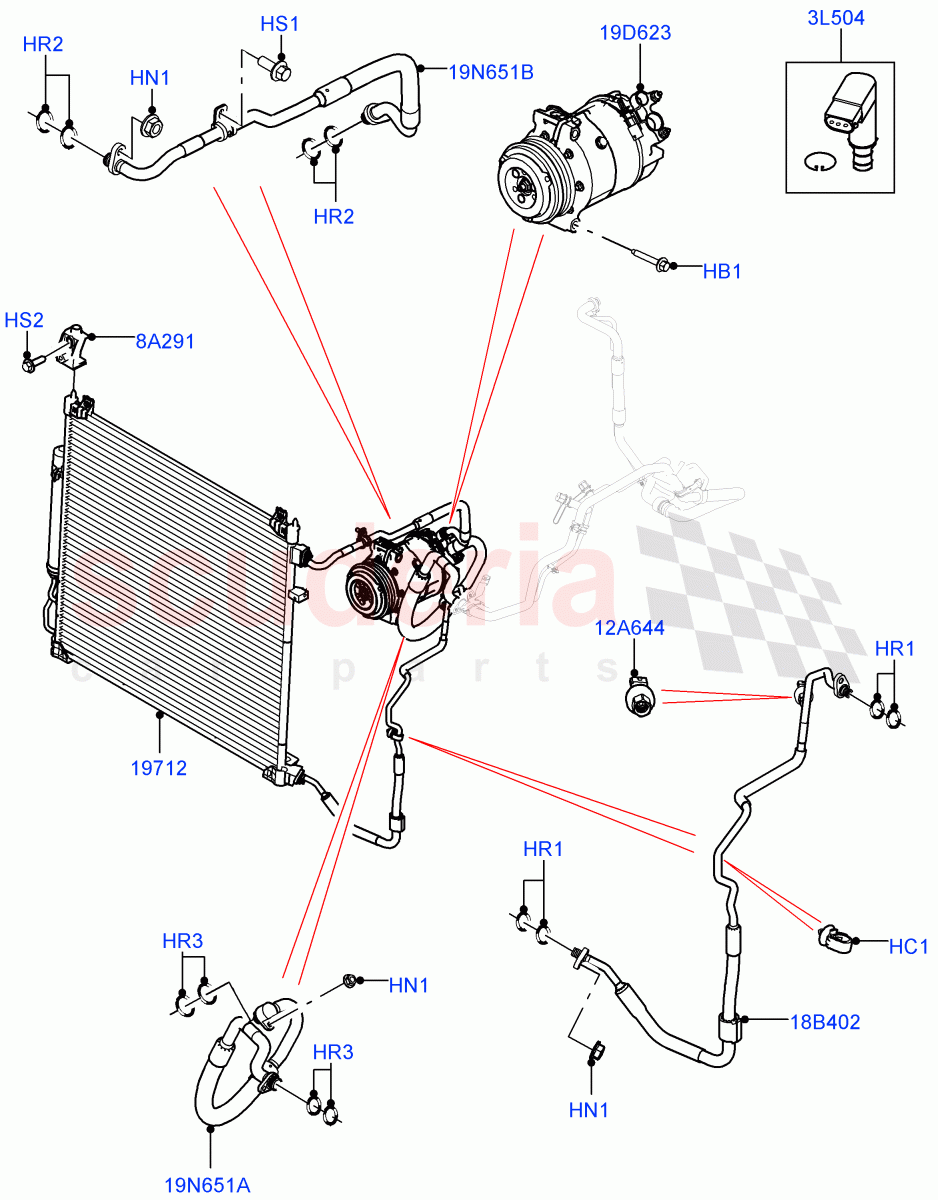

Air Conditioning Condensr/Compressr (Front, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005074
BOLT
HEX Flange, Hexagonal Head, M8 X 96.5 		$1.16 3
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose 		$3.34 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 6
HR1 LR044466
O-RING
7.65 X 1.78 		$4.34 4
HR2 LR054871
O-RING
10.82MM X 1.78MM 		$3.31 4
HR3 LR054870
O-RING
16.5 X 1.78MM 		$3.54 4
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 1
HS2 LR018707
SCREW
6X20, Hexagonal Head 		$1.05 2
3L504 LR086045
KIT - VALVE REPAIR
Includes A/C Compressor Control Valve And Snap Ring / To: HA000802 		$176.00 1
8A291 LR062331
BRACKET - RADIATOR
Air Conditioning Condenser 		$18.01 2
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor 		$239.75 1
18B402 LR082206
HOSE - AIR CONDITIONING
Condenser Outlet / To: HA999999 		$187.34 1
18B402 LR099645
HOSE - AIR CONDITIONING
Condenser Outlet / From: JA000001 		$185.92 1
19D623 LR086043
COMPRESSOR - AIR CONDITIONING
To: HA000802 		$1,478.90 1
19D623 LR112585
COMPRESSOR - AIR CONDITIONING
From: HA000803 		$1,473.56 1
19N651A LR085580
TUBE - A/C COMPRESSOR
Compressor Inlet 		$168.08 1
19N651B LR085584
TUBE - A/C COMPRESSOR
2.0L I4 DSL HIGH DOHC AJ200 / Condenser Inlet Tube 		$191.16 1
19N651B LR099647
TUBE - COMPRESSOR LINE
2.0L I4 High DOHC AJ200 Petrol / Condenser Inlet Tube / From: JA000001 		$209.31 1
19712 LR093455
CONDENSER
To: HA003222 		$409.51 1
19712 LR097269
CONDENSER
From: HA003223 / To: HA999999 		$397.58 1
19712 LR100570
CONDENSER
From: JA000001 		$336.71 1
