Name: Air Conditioning Condensr/Compressr (Front, Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001, (V) TOL2999999)
Rating: 5.0 (1 reviews)

Air Conditioning Condensr/Compressr (Front, Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (Front, Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V)...

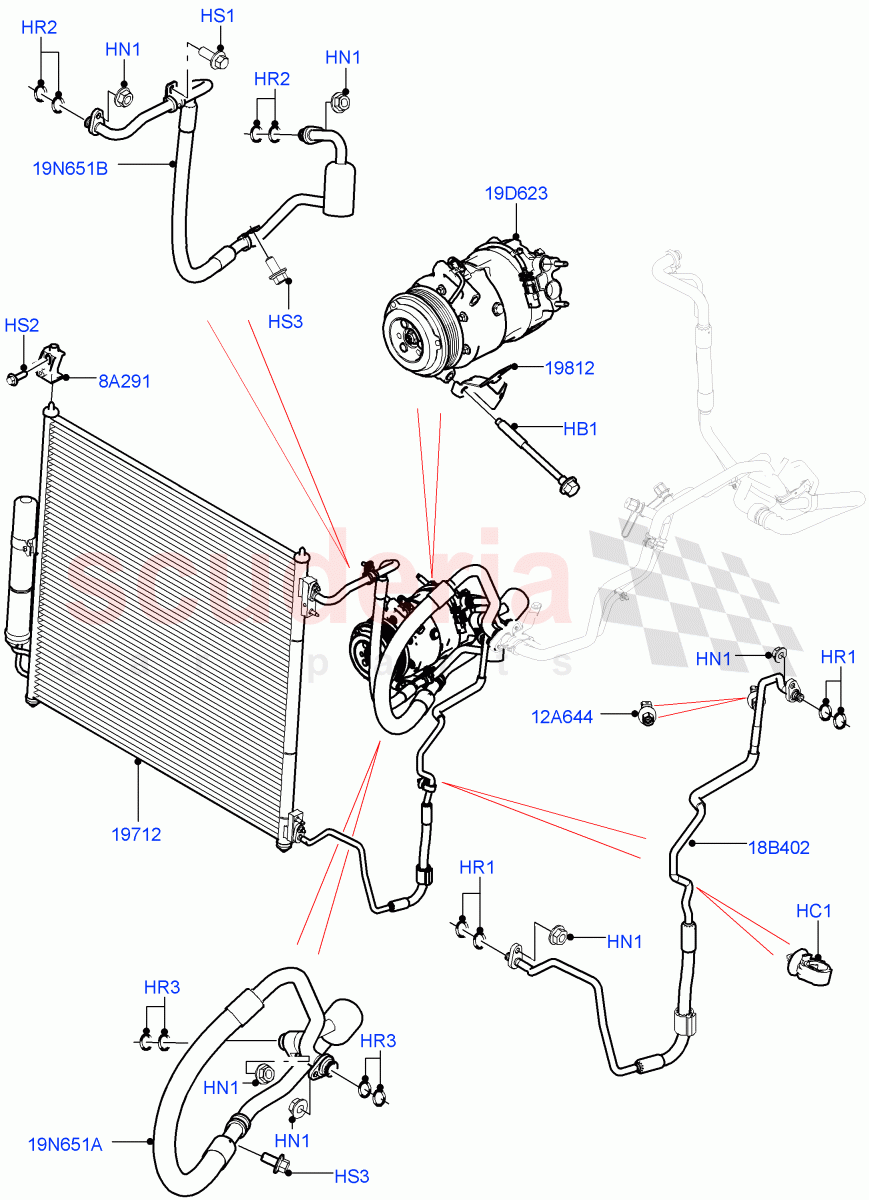

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	$3.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110621	CONDENSER	$662.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035505	BRACKET - A/C PIPE	$13.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062331	BRACKET - RADIATOR	$17.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	$238.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082205	HOSE - AIR CONDITIONING	$200.49	To Order
	LR135856	HOSE - AIR CONDITIONING	$200.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112585	COMPRESSOR - AIR CONDITIONING	$1,465.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071863	TUBE - COMPRESSOR DELIVERY	$154.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072184	TUBE - COMPRESSOR LINE	$242.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005074	BOLT	LR005074 BOLT HEX Flange, Hexagonal Head, M8 X 96.5 / From: K2000001	$1.15	3
HC1	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE For Air Conditioning Hose / From: K2000001	$3.32	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: K2000001 IN STOCK	$1.46	6
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: K2000001	$4.31	4
HR2	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM / From: K2000001	$3.29	4
HR3	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM / From: K2000001	$3.52	4
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: K2000001 IN STOCK	$1.23	1
HS2	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head / From: K2000001	$1.04	2
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: K2000001	$0.62	2
8A291	LR062331	BRACKET - RADIATOR	LR062331 BRACKET - RADIATOR Air Conditioning Condenser / From: K2000001	$17.91	1
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor / From: K2000001	$238.42	1
18B402	LR082205	HOSE - AIR CONDITIONING	LR082205 HOSE - AIR CONDITIONING Condenser Outlet / From: K2000001 / To: L2431169	$200.49	1
18B402	LR135856	HOSE - AIR CONDITIONING	LR135856 HOSE - AIR CONDITIONING Condenser Outlet / From: L2431170	$200.49	1
19D623	LR112585	COMPRESSOR - AIR CONDITIONING	LR112585 COMPRESSOR - AIR CONDITIONING From: K2000001	$1,465.35	1
19N651A	LR071863	TUBE - COMPRESSOR DELIVERY	LR071863 TUBE - COMPRESSOR DELIVERY Compressor Inlet / From: K2000001	$154.79	1
19N651B	LR072184	TUBE - COMPRESSOR LINE	LR072184 TUBE - COMPRESSOR LINE Condenser Inlet Tube / From: K2000001	$242.44	1
19712	LR110621	CONDENSER	LR110621 CONDENSER From: K2000001	$662.28	1
19812	LR035505	BRACKET - A/C PIPE IN STOCK	LR035505 BRACKET - A/C PIPE Attaches To Compressor / From: K2000001 IN STOCK	$13.77	1
