Windscreen Washer (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Windscreen Washer (Nitra Plant Build) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085632 CLIP $2.24 To Order
Photo Part No Description Price (each) Stock
LR085574 GROMMET - WINDSHIELD WASHER PUMP $4.07 To Order
Photo Part No Description Price (each) Stock
LR107637 PLUG - BLANKING $4.93 To Order
Photo Part No Description Price (each) Stock
LR107638 PLUG - BLANKING $4.73 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR083281 JET - WINDSHIELD WASHER $50.23 To Order
LR083282 JET - WINDSHIELD WASHER $50.23 To Order
Photo Part No Description Price (each) Stock
LR110608 RESERVOIR - WINDSHIELD WASHER $281.19 To Order
LR110609 RESERVOIR - WINDSHIELD WASHER $252.61 To Order
Photo Part No Description Price (each) Stock
LR089444 HOSE - FILLER PIPE $34.83 To Order
Photo Part No Description Price (each) Stock
LR054932 HOSE - WINDSHIELD WASHER $33.28 To Order
LR096447 HOSE - WINDSHIELD WASHER $77.18 To Order
Photo Part No Description Price (each) Stock
LR088962 HOSE - WINDSHIELD WASHER $97.47 To Order
LR155161 HOSE - WINDSHIELD WASHER $36.19 To Order
Photo Part No Description Price (each) Stock
LR112026 HOSE - WINDSHIELD WASHER $114.06 To Order
Photo Part No Description Price (each) Stock
LR079904 MOTOR AND PUMP $76.13 To Order
Photo Part No Description Price (each) Stock
LR089443 MOTOR AND PUMP - HEADLAMP WASHER $52.09 To Order
Photo Part No Description Price (each) Stock
LR110605 SENSOR - WASHER FLUID LEVEL $28.59 To Order
Photo Part No Description Price (each) Stock
LR083288 HOSE - WINDSHIELD WASHER $88.42 To Order
Photo Part No Description Price (each) Stock
LR085649 HOSE - WINDSHIELD WASHER $73.21 To Order
Photo Part No Description Price (each) Stock
LR095819 GROMMET $2.40 To Order
Photo Part No Description Price (each) Stock
LR095818 GROMMET $3.85 To Order
View All

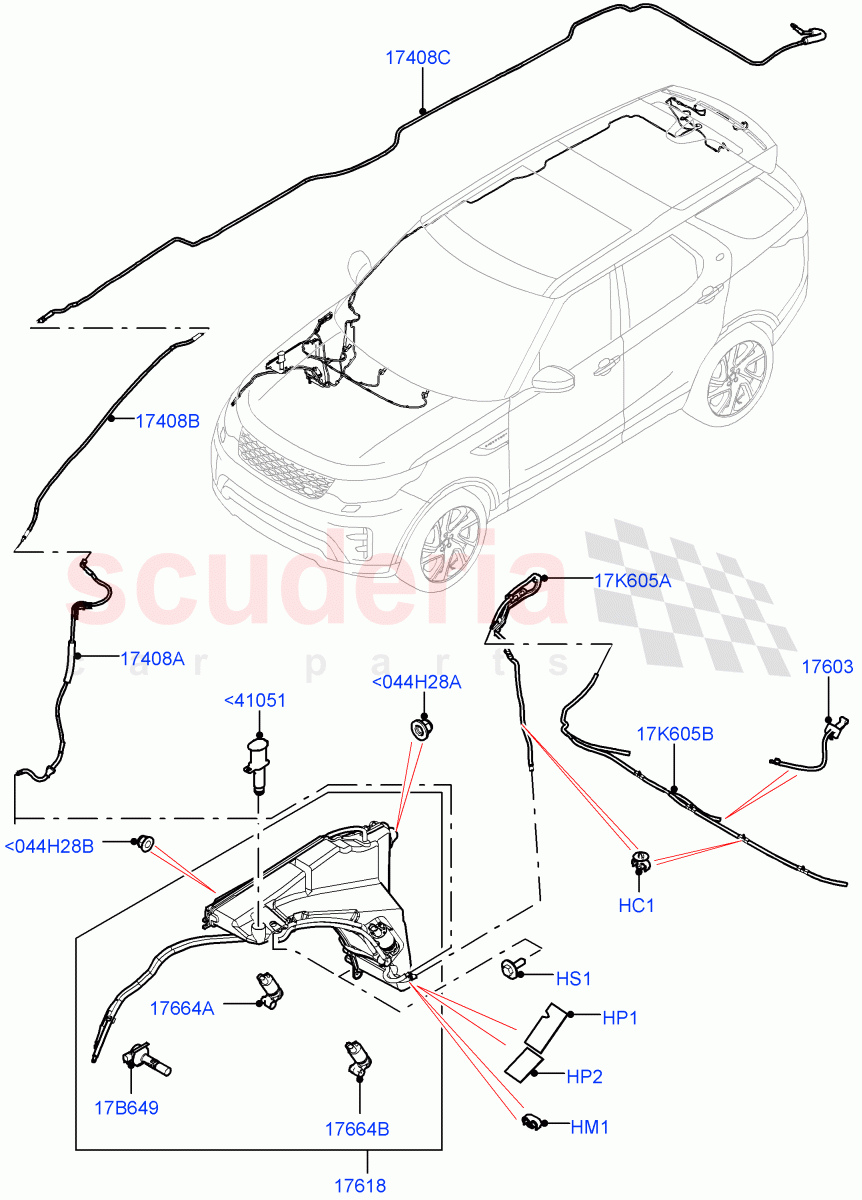

Windscreen Washer (Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044H28A LR095819
GROMMET
With Headlamp Power Wash / From: K2000001 		$2.40 1
<044H28B LR095818
GROMMET
With Headlamp Power Wash / From: K2000001 		$3.85 1
<41051 LR089444
HOSE - FILLER PIPE
From: K2000001 		$34.83 1
HC1 LR085632
CLIP
Support / From: K2000001 		$2.24 2
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
With Headlamp Power Wash / Grommet / From: K2000001 		$4.07 1
HP1 LR107637
PLUG - BLANKING
Reservoir - Windshield Washer / From: K2000001 		$4.93 1
HP2 LR107638
PLUG - BLANKING
Reservoir - Windshield Washer / From: K2000001 		$4.73 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: K2000001
IN STOCK 		$0.96 2
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
Sensor - Washer Fluid Level / From: K2000001 		$28.59 1
17K605A LR083288
HOSE - WINDSHIELD WASHER
From: K2000001 		$88.42 1
17K605B LR085649
HOSE - WINDSHIELD WASHER
From: K2000001 		$73.21 1
17408A LR054932
HOSE - WINDSHIELD WASHER
RHD / RH Side Only / From: K2000001 		$33.28 1
17408A LR096447
HOSE - WINDSHIELD WASHER
LHD / RH Side Only / From: K2000001 		$77.18 1
17408B LR088962
HOSE - WINDSHIELD WASHER
From: K2000001 / To: L2999999 		$97.47 1
17408B LR155161
HOSE - WINDSHIELD WASHER
From: M2000001 		$36.19 1
17408C LR112026
HOSE - WINDSHIELD WASHER
From: K2000001 		$114.06 1
17603 LR083281
JET - WINDSHIELD WASHER
Less Heated Washer Jet / From: K2000001 		$50.23 3
17603 LR083282
JET - WINDSHIELD WASHER
With Heated Washer Jet / From: K2000001 		$50.23 3
17618 LR110608
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer / From: K2000001 		$281.19 1
17618 LR110609
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: K2000001 		$252.61 1
17664A LR079904
MOTOR AND PUMP
From: K2000001 		$76.13 1
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
With Headlamp Power Wash / From: K2000001 		$52.09 1
