Sliding Roof Mechanism And Controls (Solihull Plant Build, Sunroof Frame) (Roof Conv-Power Open...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Sliding Roof Mechanism And Controls (Solihull Plant Build, Sunroof Frame) (Roof Conv-Power Open...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR096352 PLUG - BLANKING $5.16 To Order
Photo Part No Description Price (each) Stock
LR083232 SEAL - ROOF PANEL OPENING $57.38 To Order
Photo Part No Description Price (each) Stock
LR083242 FRAME - SLIDING ROOF PANEL OPENING $1,302.63 To Order
Photo Part No Description Price (each) Stock
LR083243 DEFLECTOR - ROOF AIR $149.81 To Order
Photo Part No Description Price (each) Stock
LR083254 WIRING - ROOF $322.12 To Order
Photo Part No Description Price (each) Stock
LR083255 MOTOR - SUNROOF OPENING $624.70 To Order
LR123807 MOTOR - SUNROOF OPENING $503.56 To Order
Photo Part No Description Price (each) Stock
LR083257 MOTOR - SUNROOF OPENING $601.91 To Order
LR101103 MOTOR - SUNROOF OPENING $572.88 To Order
Photo Part No Description Price (each) Stock
LR083256 MOTOR - SUNROOF OPENING $567.47 To Order
LR101102 MOTOR - SUNROOF OPENING $611.86 To Order
Photo Part No Description Price (each) Stock
LR083262 KIT - SCREWS $35.49 To Order
Photo Part No Description Price (each) Stock
LR083243 DEFLECTOR - ROOF AIR $149.81 To Order
Photo Part No Description Price (each) Stock
LR082916 SUN BLINDS $547.61 To Order
LR082917 SUN BLINDS $567.85 To Order
Photo Part No Description Price (each) Stock
LR083269 HINGE - SUNROOF $8.09 To Order
LR083270 HINGE - SUNROOF $8.64 To Order
Photo Part No Description Price (each) Stock
LR083230 TUBE - WATER DRAIN $22.66 To Order
LR083231 TUBE - WATER DRAIN $22.66 To Order
LR145230 TUBE - WATER DRAIN $19.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083247 SEAL - ROOF PANEL OPENING $81.06 To Order
Photo Part No Description Price (each) Stock
LR083248 SEAL - ROOF PANEL OPENING $83.75 To Order
Photo Part No Description Price (each) Stock
LR083249 SEAL - ROOF PANEL OPENING $83.75 To Order
Photo Part No Description Price (each) Stock
LR083245 SHIELD - SUNROOF RAIL $537.48 To Order
Photo Part No Description Price (each) Stock
LR083253 SHIELD - SUNROOF RAIL $182.09 To Order
Photo Part No Description Price (each) Stock
LR107349 SUN BLINDS $556.91 To Order
LR107350 SUN BLINDS $576.37 To Order
Photo Part No Description Price (each) Stock
LR082918 SUN BLINDS $502.37 To Order
LR082919 SUN BLINDS $505.80 To Order
View All

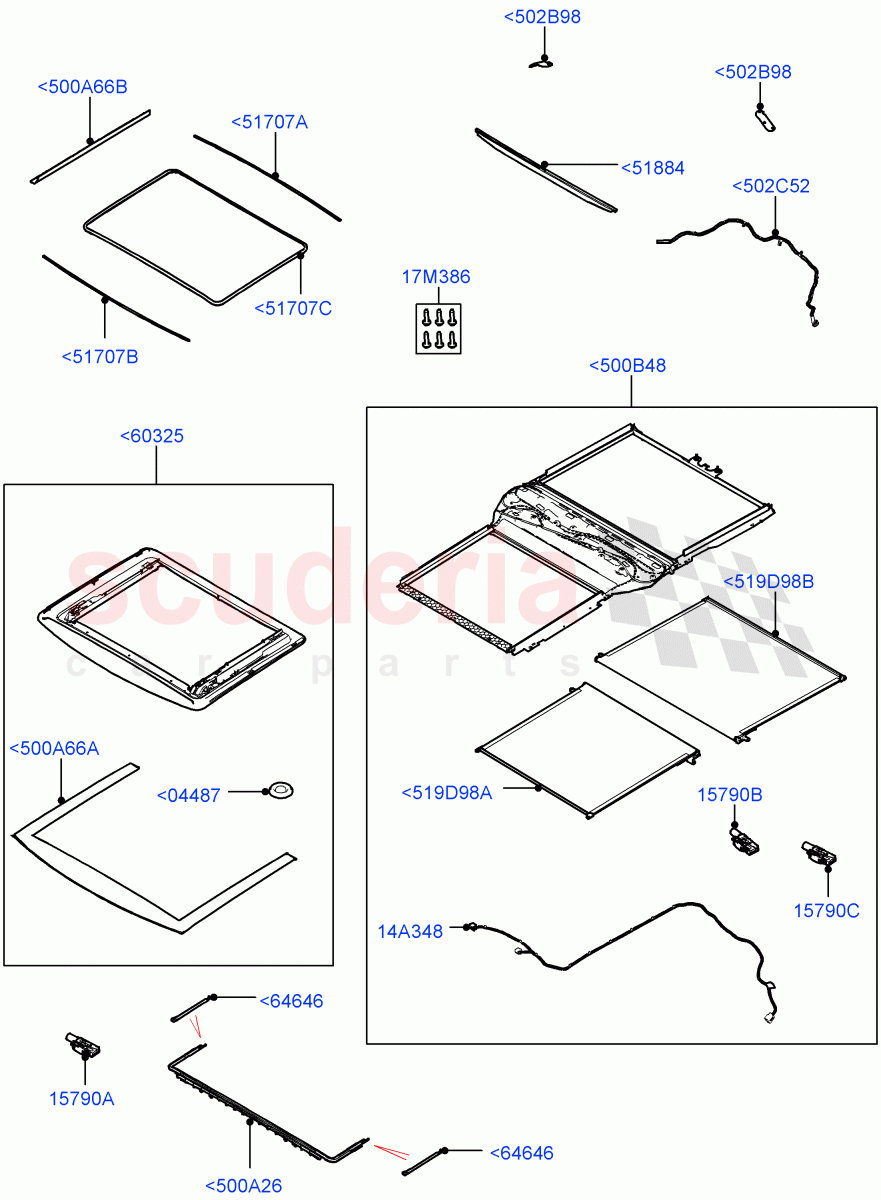

Sliding Roof Mechanism And Controls (Solihull Plant Build, Sunroof Frame) (Roof Conv-Power Open Front/Rear Pan, With Roof Conversion-Panorama Power) ((V) FROMHA000001, (V) TOHA999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<500A26 LR083243
DEFLECTOR - ROOF AIR 		$149.81 1
<500A66A LR083245
SHIELD - SUNROOF RAIL 		$537.48 1
<500A66B LR083253
SHIELD - SUNROOF RAIL
Kit Of Two Shields, RH And LH 		$182.09 1
<500B48 LR082916
SUN BLINDS
Nimbus Grey Headlining 		$547.61 1
<500B48 LR082917
SUN BLINDS
Ebony Headliner 		$567.85 1
<502B98 LR083269
HINGE - SUNROOF
RH 		$8.09 1
<502B98 LR083270
HINGE - SUNROOF
LH 		$8.64 1
<502C52 LR083230
TUBE - WATER DRAIN
RH / To: HA041267 		$22.66 1
<502C52 LR083231
TUBE - WATER DRAIN
LH / To: HA041267 		$22.66 1
<502C52 LR145230
TUBE - WATER DRAIN
LH / From: HA041268 		$19.45 1
<502C52 LR117260
TUBE - WATER DRAIN
RH / From: HA041268 		$22.35 1
<519D98A LR107349
SUN BLINDS
Nimbus Grey Headlining / Front 		$556.91 1
<519D98A LR107350
SUN BLINDS
Ebony Headliner / Front 		$576.37 1
<519D98B LR082918
SUN BLINDS
Light Oyster Headliner / Rear 		$502.37 1
<519D98B LR082919
SUN BLINDS
Ebony Headliner / Rear 		$505.80 1
<04487 LR096352
PLUG - BLANKING
Blanking, Plug 		$5.16 1
<51707A LR083247
SEAL - ROOF PANEL OPENING 		$81.06 1
<51707B LR083248
SEAL - ROOF PANEL OPENING 		$83.75 1
<51707C LR083249
SEAL - ROOF PANEL OPENING 		$83.75 1
<51884 LR083232
SEAL - ROOF PANEL OPENING 		$57.38 1
<60325 LR083242
FRAME - SLIDING ROOF PANEL OPENING
Frame Assy 		$1,302.63 1
<64646 LR083243
DEFLECTOR - ROOF AIR 		$149.81 1
14A348 LR083254
WIRING - ROOF 		$322.12 1
17M386 LR083262
KIT - SCREWS 		$35.49 1
15790A LR083255
MOTOR - SUNROOF OPENING
SUNROOF / To: HA039897 		$624.70 1
15790A LR123807
MOTOR - SUNROOF OPENING
SUNROOF / From: HA039898 		$503.56 1
15790B LR083257
MOTOR - SUNROOF OPENING
Rear / To: HA028785 		$601.91 1
15790B LR101103
MOTOR - SUNROOF OPENING
Rear / From: HA028786 / To: HA999999 		$572.88 1
15790C LR083256
MOTOR - SUNROOF OPENING
Front / To: HA039897 		$567.47 1
15790C LR101102
MOTOR - SUNROOF OPENING
Front / From: HA039898 		$611.86 1
