Name: Engine Mounting (Nitra Plant Build) (3.0 V6 Diesel) ((V) FROMK2000001)
Rating: 4.7 (1 reviews)

View All

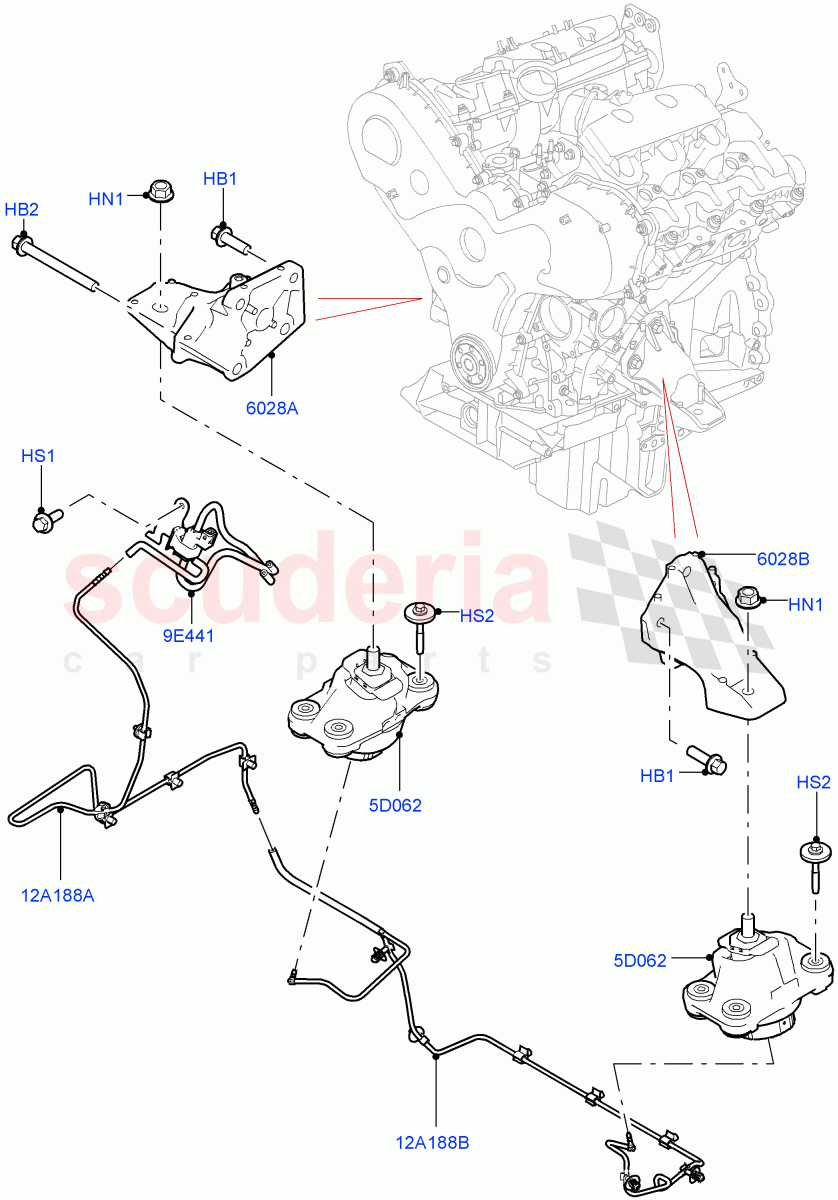

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033199	BOLT	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033200	BOLT	$27.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095134	NUT	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033201	SCREW	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123907	BRACKET - ENGINE MOUNTING	$154.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122399	BRACKET - ENGINE FRONT SUPPORT	$91.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033184	BRACKET - ENGINE FRONT SUPPORT	$118.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033194	SOLENOID - VACUUM CONTROL	$172.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033175	HOSE - VACUUM	$85.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081526	HOSE - VACUUM	$127.64	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033199	BOLT	LR033199 BOLT Hexagonal Head, M12 X 42MM / From: K2000001	$2.57	6
HB2	LR033200	BOLT	LR033200 BOLT Hexagonal Head, M12 x 122MM / From: K2000001	$27.56	2
HN1	LR095134	NUT	LR095134 NUT M14 / From: K2000001	$0.97	2
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM / From: K2000001	$0.95	1
HS2	LR033201	SCREW	LR033201 SCREW Hexagonal Head, M8 x 60MM / From: K2000001	$3.72	8
5D062	LR123907	BRACKET - ENGINE MOUNTING	LR123907 BRACKET - ENGINE MOUNTING RH/LH / From: K2000001	$154.46	2
9E441	LR033194	SOLENOID - VACUUM CONTROL	LR033194 SOLENOID - VACUUM CONTROL From: K2000001	$172.38	1
12A188A	LR033175	HOSE - VACUUM	LR033175 HOSE - VACUUM From: K2000001	$85.49	1
12A188B	LR081526	HOSE - VACUUM	LR081526 HOSE - VACUUM From: K2000001	$127.64	1
6028A	LR122399	BRACKET - ENGINE FRONT SUPPORT	LR122399 BRACKET - ENGINE FRONT SUPPORT RH / From: K2000001	$91.40	1
6028B	LR033184	BRACKET - ENGINE FRONT SUPPORT	LR033184 BRACKET - ENGINE FRONT SUPPORT LH / From: K2000001	$118.06	1

Engine Mounting (Nitra Plant Build) (3.0 V6 Diesel) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]
