Name: Insulators - Front (Passenger Compartment, Solihull Plant Build) ((V) FROMHA000001)
Rating: 4.6 (1 reviews)

Insulators - Front (Passenger Compartment, Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Insulators - Front (Passenger Compartment, Solihull Plant Build) ((V) FROMHA000001)

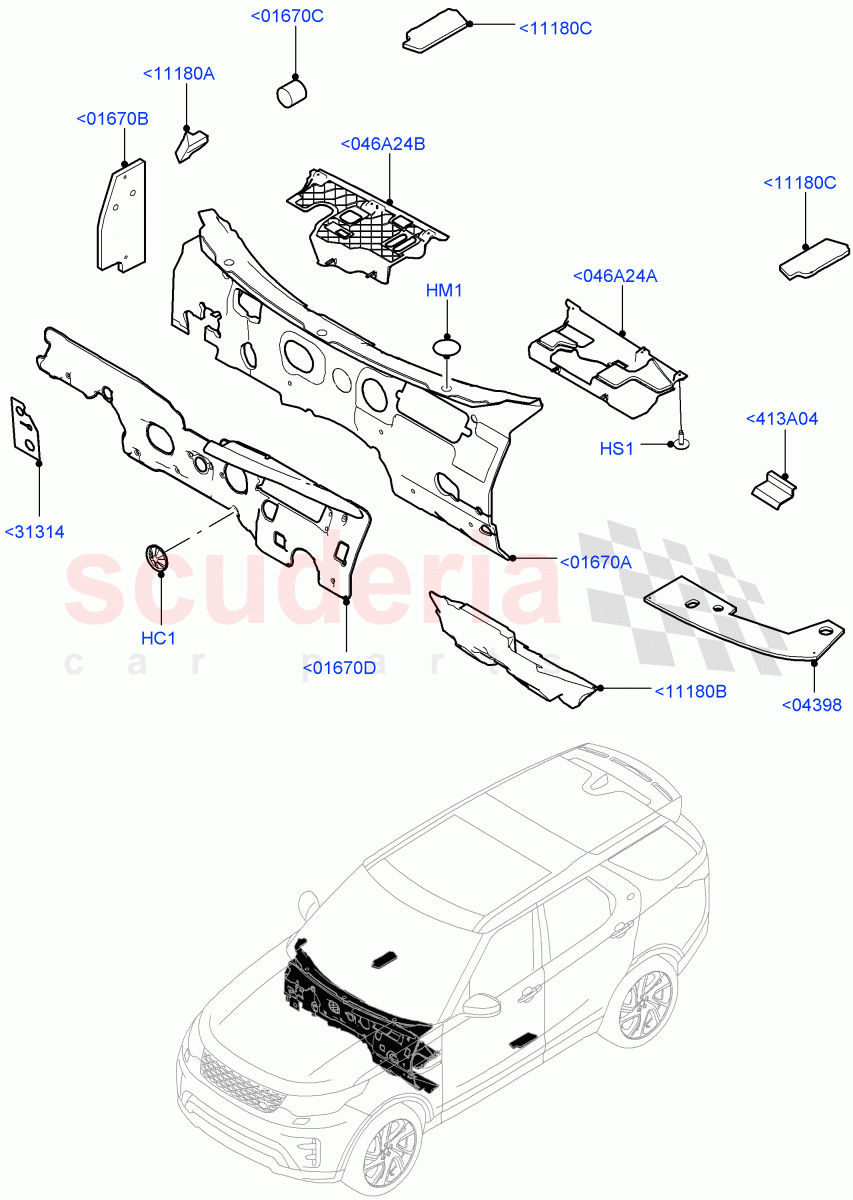

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033697	CLIP - PUSH ON STEEL	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500090	PIN - FIXING	$10.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003016	SCREW AND WASHER	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118286	INSULATOR - INSTRUMENT PANEL	$78.20	To Order
	LR118287	INSULATOR - INSTRUMENT PANEL	$78.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037856	INSULATOR - FLOOR	$12.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070890	INSULATOR - BULKHEAD	$316.91	To Order
	LR070891	INSULATOR - DASH PANEL	$354.81	To Order
	LR070890	INSULATOR - BULKHEAD	$316.91	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040771	INSULATOR - "A" PILLAR	$8.83	To Order
	LR040772	INSULATOR - "A" PILLAR	$8.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040337	INSULATOR - SOUND	$13.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049488	INSULATOR - DASH PANEL	$134.95	To Order
	LR049489	INSULATOR - DASH PANEL	$127.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037806	INSULATOR - "A" PILLAR	$6.71	To Order
	LR037808	INSULATOR - "A" PILLAR	$6.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040777	INSULATOR - TRIM PANEL	$63.92	To Order
	LR040778	INSULATOR - TRIM PANEL	$62.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041322	INSULATOR - FLOOR	$19.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118288	INSULATOR - SOUND	$9.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081880	INSULATOR - INSTRUMENT PANEL	$217.47	To Order
	LR081877	INSULATOR - INSTRUMENT PANEL	$229.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081878	INSULATOR - INSTRUMENT PANEL	$196.27	To Order
	LR081879	INSULATOR - INSTRUMENT PANEL	$187.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<046A24A	LR081880	INSULATOR - INSTRUMENT PANEL	LR081880 INSULATOR - INSTRUMENT PANEL LHD / LH	$217.47	1
<046A24A	LR081877	INSULATOR - INSTRUMENT PANEL	LR081877 INSULATOR - INSTRUMENT PANEL RHD / RH	$229.50	1
<046A24B	LR081878	INSULATOR - INSTRUMENT PANEL	LR081878 INSULATOR - INSTRUMENT PANEL LHD / RH	$196.27	1
<046A24B	LR081879	INSULATOR - INSTRUMENT PANEL	LR081879 INSULATOR - INSTRUMENT PANEL RHD / LH	$187.32	1
<413A04	LR118288	INSULATOR - SOUND	LR118288 INSULATOR - SOUND With Standard Glove Box / From: KA000001	$9.18	1
<01670A	LR070890	INSULATOR - BULKHEAD	LR070890 INSULATOR - BULKHEAD LHD / To: HA999999	$316.91	1
<01670A	LR070891	INSULATOR - DASH PANEL	LR070891 INSULATOR - DASH PANEL RHD / To: HA999999	$354.81	1
<01670A	LR070890	INSULATOR - BULKHEAD	LR070890 INSULATOR - BULKHEAD 2.0L I4 DSL HIGH DOHC AJ200, LHD / From: JA000001	$316.91	1
<01670A	LR070891	INSULATOR - DASH PANEL	LR070891 INSULATOR - DASH PANEL 3.0L DOHC GDI SC V6 PETROL, RHD / From: JA000001	$354.81	1
<01670A	LR066359	INSULATOR - DASH PANEL	LR066359 INSULATOR - DASH PANEL 2.0L I4 High DOHC AJ200 Petrol, LHD / From: JA000001	$253.12	1
<01670A	LR070725	INSULATOR - DASH PANEL	LR070725 INSULATOR - DASH PANEL 2.0L I4 High DOHC AJ200 Petrol, RHD / From: JA000001	$253.12	1
<01670A	LR070890	INSULATOR - BULKHEAD	LR070890 INSULATOR - BULKHEAD 3.0 V6 D Gen2 Twin Turbo, LHD / From: KA000001	$316.91	1
<01670A	LR070891	INSULATOR - DASH PANEL	LR070891 INSULATOR - DASH PANEL 3.0 V6 D Gen2 Twin Turbo, RHD / From: KA000001	$354.81	1
<01670B	LR040771	INSULATOR - "A" PILLAR	LR040771 INSULATOR - "A" PILLAR RHD / RH	$8.83	1
<01670B	LR040772	INSULATOR - "A" PILLAR	LR040772 INSULATOR - "A" PILLAR LHD / LH	$8.69	1
<01670C	LR040337	INSULATOR - SOUND	LR040337 INSULATOR - SOUND	$13.79	2
<01670D	LR049488	INSULATOR - DASH PANEL	LR049488 INSULATOR - DASH PANEL LHD	$134.95	1
<01670D	LR049489	INSULATOR - DASH PANEL	LR049489 INSULATOR - DASH PANEL RHD	$127.25	1
<04398	LR118286	INSULATOR - INSTRUMENT PANEL	LR118286 INSULATOR - INSTRUMENT PANEL LH / From: JA000001	$78.20	1
<04398	LR118287	INSULATOR - INSTRUMENT PANEL	LR118287 INSULATOR - INSTRUMENT PANEL RH / From: JA000001	$78.20	1
<11180A	LR037806	INSULATOR - "A" PILLAR	LR037806 INSULATOR - "A" PILLAR LH, "A" Pillar	$6.71	1
<11180A	LR037808	INSULATOR - "A" PILLAR	LR037808 INSULATOR - "A" PILLAR RH, "A" Pillar	$6.54	1
<11180B	LR040777	INSULATOR - TRIM PANEL	LR040777 INSULATOR - TRIM PANEL RHD / For Passengers Side	$63.92	1
<11180B	LR040778	INSULATOR - TRIM PANEL	LR040778 INSULATOR - TRIM PANEL LHD / For Passengers Side	$62.04	1
<11180C	LR041322	INSULATOR - FLOOR	LR041322 INSULATOR - FLOOR "B" Pillar, Includes RH And LH Sides	$19.56	2
<31314	LR037856	INSULATOR - FLOOR	LR037856 INSULATOR - FLOOR RHD	$12.20	1
HC1	LR033697	CLIP - PUSH ON STEEL	LR033697 CLIP - PUSH ON STEEL M6	$1.44	4
HM1	RZM500090	PIN - FIXING	RZM500090 PIN - FIXING 6.5 X 17MM, Dash Panel	$10.18	3
HS1	LR003016	SCREW AND WASHER	LR003016 SCREW AND WASHER 17.0MM, 4.2	$2.04	3

Insulators - Front (Passenger Compartment, Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Insulators - Front (Passenger Compartment, Solihull Plant Build) ((V) FROMHA000001)
