Rear Exhaust System (2.2L Cr Di 16V Diesel, With 7 Seat Configuration, Less Spare Wheel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Rear Exhaust System (2.2L CR DI 16V Diesel, With 7 Seat Configuration, Less Spare Wheel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.03 To Order
Photo Part No Description Price (each) Stock
LR079315 CLAMP $31.24 To Order
Photo Part No Description Price (each) Stock
LR096521 DAMPER - DAMPING MASS $94.07 To Order
Photo Part No Description Price (each) Stock
LR060585 MUFFLER - REAR $751.56 To Order
LR077060 MUFFLER - REAR $1,061.75 To Order
LR084732 MUFFLER - REAR $1,137.31 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR078911 BRACKET - EXHAUST PIPE MOUNTING $14.54 To Order
Photo Part No Description Price (each) Stock
LR078912 BRACKET - EXHAUST PIPE MOUNTING $14.54 To Order
Photo Part No Description Price (each) Stock
LR004549 INSULATOR - RUBBER $12.05 To Order
Photo Part No Description Price (each) Stock
LR017444 INSULATOR - RUBBER $26.11 To Order
View All

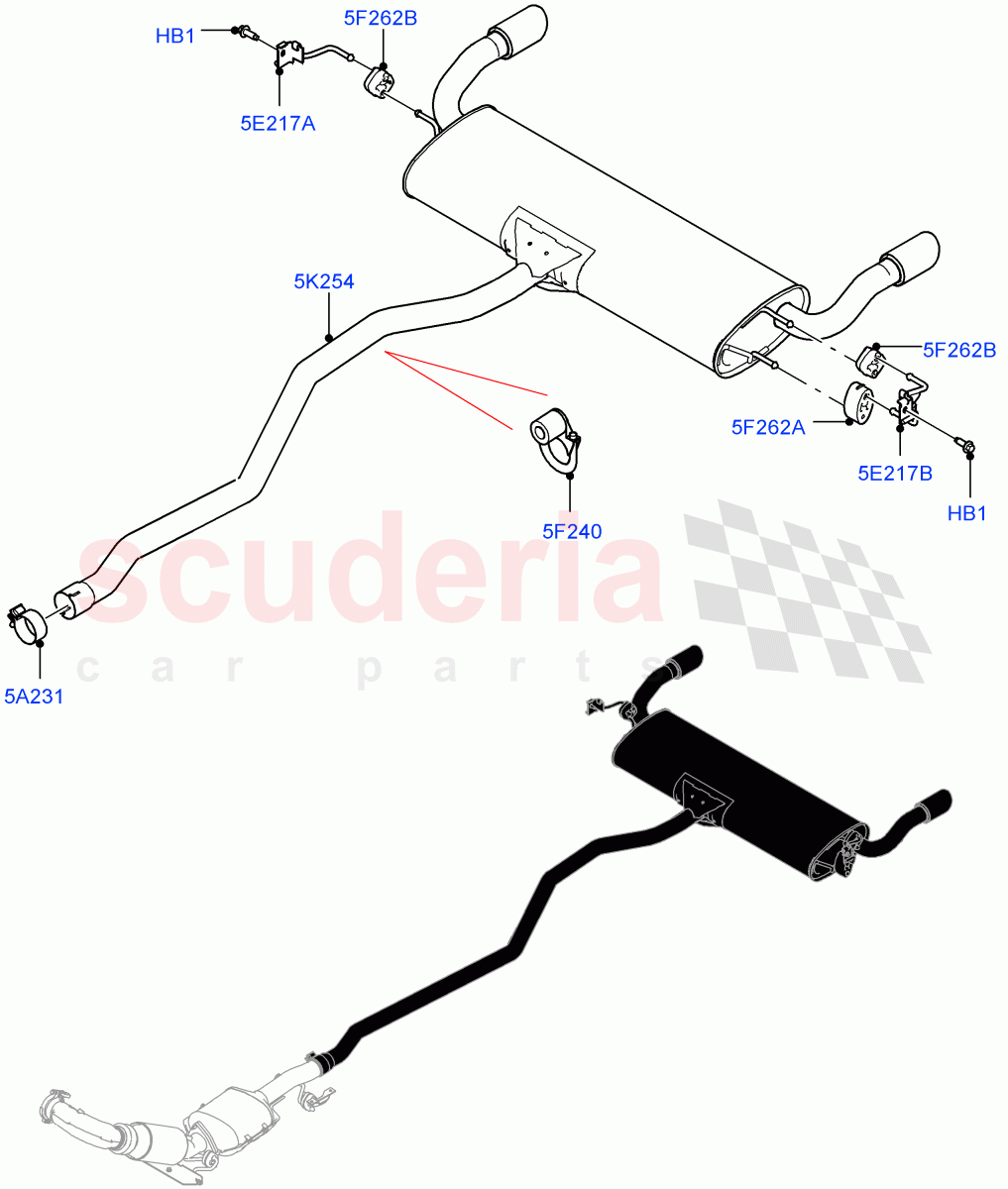

Rear Exhaust System (2.2L CR DI 16V Diesel, With 7 Seat Configuration, Less Spare Wheel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		$1.03 2
5A231 LR079315
CLAMP
60MM, Front 		$31.24 1
5E217A LR078911
BRACKET - EXHAUST PIPE MOUNTING
RH 		$14.54 1
5E217B LR078912
BRACKET - EXHAUST PIPE MOUNTING
LH 		$14.54 1
5F240 LR096521
DAMPER - DAMPING MASS 		$94.07 1
5F262A LR004549
INSULATOR - RUBBER 		$12.05 1
5F262B LR017444
INSULATOR - RUBBER 		$26.11 2
5K254 LR060585
MUFFLER - REAR
To: FH999999 		$751.56 1
5K254 LR077060
MUFFLER - REAR
Dual Exhaust / From: GH000001 / To: GH601414 		$1,061.75 1
5K254 LR084732
MUFFLER - REAR
Dual Exhaust - Dynamic / From: GH000001 / To: GH632327 		$1,137.31 1
5K254 LR093659
MUFFLER - REAR
Dual Exhaust / From: GH601415 		$1,712.00 1
5K254 LR093636
MUFFLER - REAR
Dual Exhaust - Dynamic / LH Rear / From: GH632328 / To: GH633544 		$1,137.31 1
5K254 LR094768
MUFFLER - REAR
Dual Exhaust - Dynamic / From: GH633545 		$1,115.02 1
