Exhaust System (Front Section) (2.2L Cr Di 16V Diesel, Euro Stage 4 Emissions)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust System (Front Section) (2.2L CR DI 16V Diesel, Euro Stage 4 Emissions)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER $11.73 To Order
Photo Part No Description Price (each) Stock
LR001115 CLAMP - EXHAUST $13.75 To Order
Photo Part No Description Price (each) Stock
LR000954 GASKET - EXHAUST PIPE $19.18 To Order
Photo Part No Description Price (each) Stock
LR072218 CATALYTIC CONVERTER $1,283.46 To Order
LR072220 CATALYTIC CONVERTER $1,408.45 To Order
Photo Part No Description Price (each) Stock
LR025109 BRACKET - EXHAUST PIPE MOUNTING $36.79 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $12.55 IN STOCK
Photo Part No Description Price (each) Stock
LR072671 PIPE - EXHAUST $1,274.10 To Order
Photo Part No Description Price (each) Stock
LR024227 BRACKET - EXHAUST PIPE MOUNTING $39.55 To Order
LR077874 BRACKET - EXHAUST PIPE MOUNTING $25.90 To Order
View All

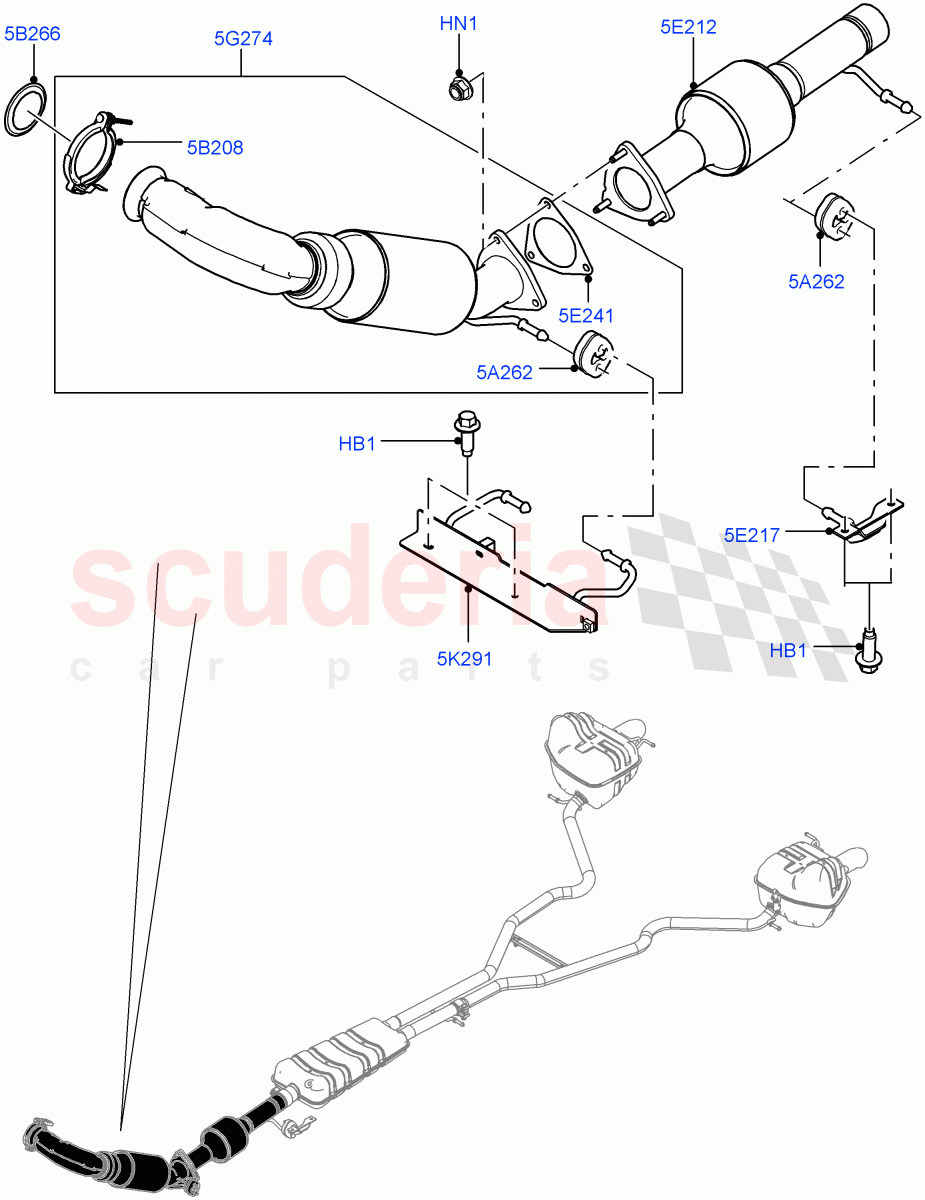

Exhaust System (Front Section) (2.2L CR DI 16V Diesel, Euro Stage 4 Emissions) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		$1.02 2
HN1 FX108046
NUT - LOCKING
M8 / From: FH503863
IN STOCK 		$0.40 3
5A262 LR000593
INSULATOR - RUBBER 		$11.73 3
5B208 LR001115
CLAMP - EXHAUST 		$13.75 1
5B266 LR000954
GASKET - EXHAUST PIPE
Front 		$19.18 1
5E212 LR072218
CATALYTIC CONVERTER
Less Spare Wheel, With 7 Seat Configuration / From: FH503863 		$1,283.46 1
5E212 LR072220
CATALYTIC CONVERTER
Spare Wheel - Reduced Section Steel, With 7 Seat Configuration, With Tool Kit / From: FH503863 		$1,408.45 1
5E217 LR025109
BRACKET - EXHAUST PIPE MOUNTING
Front 		$36.79 1
5E241 WCM500120
GASKET - EXHAUST PIPE
From: FH503863
IN STOCK 		$12.55 1
5G274 LR072671
PIPE - EXHAUST
From: FH503863 		$1,274.10 1
5K291 LR024227
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / To: GH593043 		$39.55 1
5K291 LR077874
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / From: GH593044 		$25.90 1
