Name: Exhaust System (Front Section) (2.2L CR DI 16V Diesel, EU5 Emission With DPF Type 2, With 5 Seat Configuration, Stage V Plus DPF, Proconve L6 Emissions)
Rating: 4.1 (1 reviews)

Exhaust System (Front Section) (2.2L CR DI 16V Diesel, EU5 Emission With DPF Type 2, With 5 Seat Configuration, Stage V Plus DPF, Proconve L6 Emissions) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust System (Front Section) (2.2L CR DI 16V Diesel, EU5 Emission With DPF Type 2, With 5 Seat...

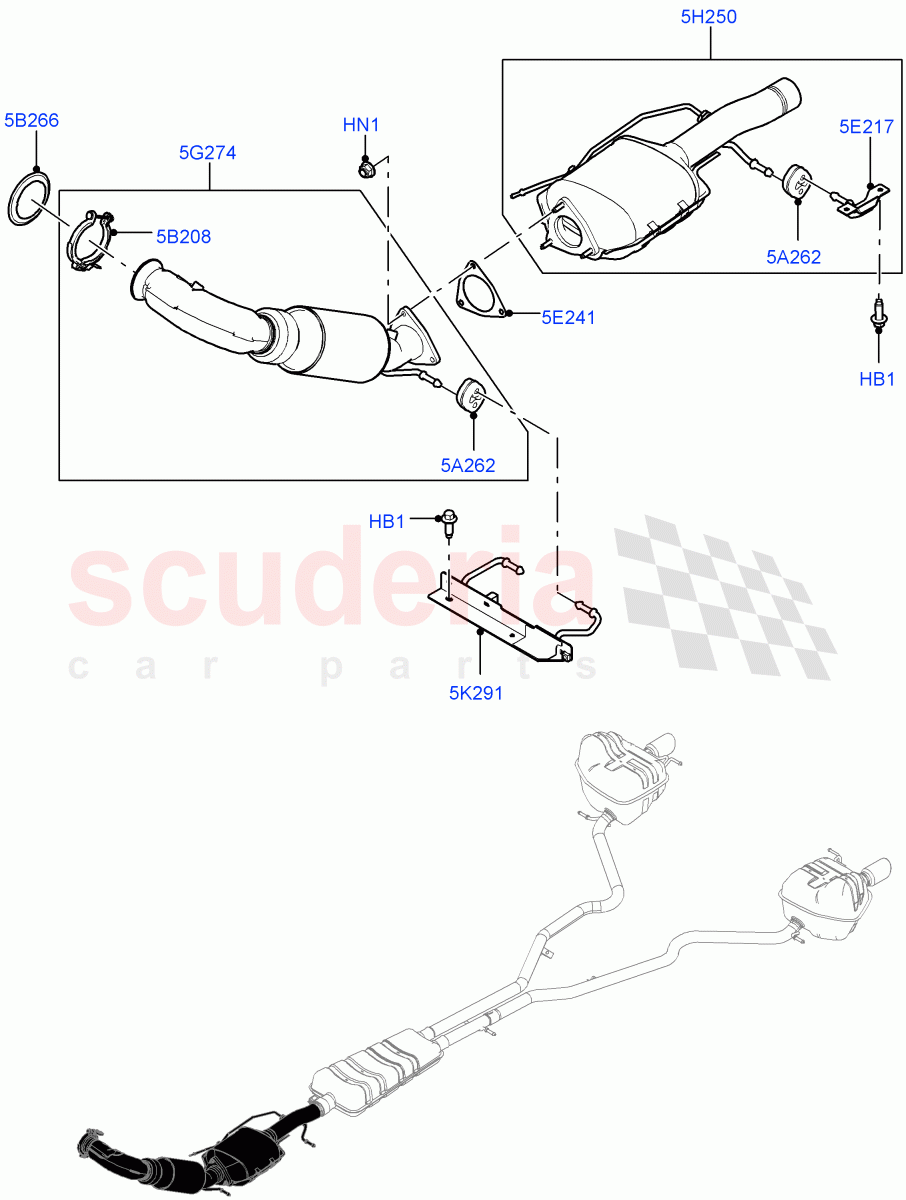

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001115	CLAMP - EXHAUST	$13.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000954	GASKET - EXHAUST PIPE	$19.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$36.78	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	$12.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067416	PIPE - EXHAUST	$1,889.00	To Order
	LR067414	PIPE - EXHAUST	$1,144.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068415	FILTER - DIESEL PARTICLE	$2,181.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024227	BRACKET - EXHAUST PIPE MOUNTING	$39.54	To Order
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	$25.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.02	2
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.40	2
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER	$11.72	3
5B208	LR001115	CLAMP - EXHAUST	LR001115 CLAMP - EXHAUST	$13.74	1
5B266	LR000954	GASKET - EXHAUST PIPE	LR000954 GASKET - EXHAUST PIPE Front	$19.17	1
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING Front	$36.78	1
5E241	WCM500120	GASKET - EXHAUST PIPE IN STOCK	WCM500120 GASKET - EXHAUST PIPE Catalyst Assy, Rear IN STOCK	$12.55	1
5G274	LR067416	PIPE - EXHAUST	LR067416 PIPE - EXHAUST 6 Speed Manual Trans-JLR M66 2WD	$1,889.00	1
5G274	LR067414	PIPE - EXHAUST	LR067414 PIPE - EXHAUST 6 Speed Manual Trans M66 - AWD	$1,144.38	1
5H250	LR068415	FILTER - DIESEL PARTICLE	LR068415 FILTER - DIESEL PARTICLE With 5 Seat Configuration	$2,181.78	1
5K291	LR024227	BRACKET - EXHAUST PIPE MOUNTING	LR024227 BRACKET - EXHAUST PIPE MOUNTING Double, Front / To: GH593043	$39.54	1
5K291	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GH593044	$25.89	1

Exhaust System (Front Section) (2.2L Cr Di 16V Diesel, Eu5 Emission With Dpf Type 2, With 5 Seat...
