Name: Exhaust System (Rear Section) (2.2L CR DI 16V Diesel, Stage V Plus DPF, With Tool Kit, With 7 Seat Configuration, EU5 Emission With DPF Type 2, Proconve L6 Emissions)
Rating: 4.8 (1 reviews)

Exhaust System (Rear Section) (2.2L CR DI 16V Diesel, Stage V Plus DPF, With Tool Kit, With 7 Seat Configuration, EU5 Emission With DPF Type 2, Proconve L6 Emissions) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust System (Rear Section) (2.2L CR DI 16V Diesel, Stage V Plus DPF, With Tool Kit, With 7 Seat...

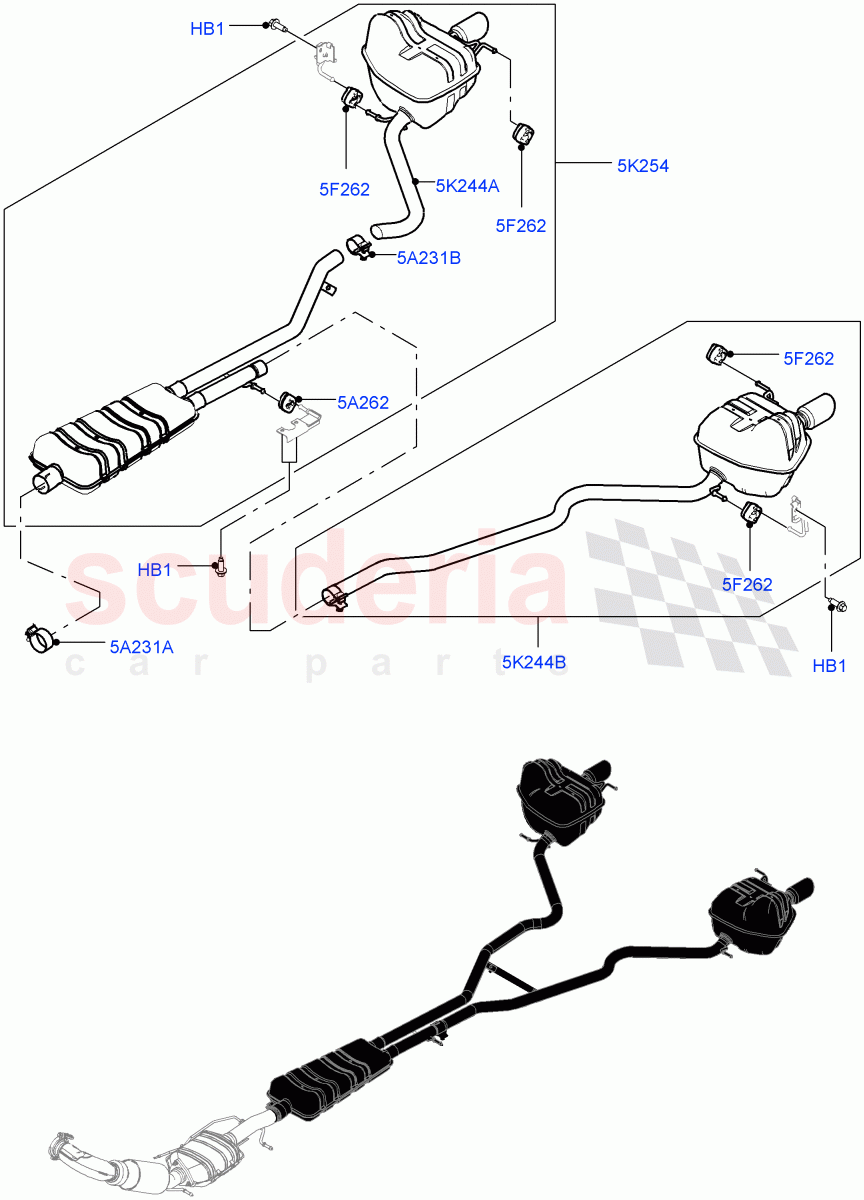

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017444	INSULATOR - RUBBER	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060572	MUFFLER - REAR	$1,570.56	To Order
	LR075455	MUFFLER - REAR	$1,206.34	To Order
	LR087508	MUFFLER - REAR	$1,206.34	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR003178	CLAMP - EXHAUST	$28.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068436	CLAMP	$101.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078926	MUFFLER - REAR	$1,201.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076311	MUFFLER - REAR	$1,025.85	To Order
	LR061673	MUFFLER - REAR	$932.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.02	4
5A231A	LR003178	CLAMP - EXHAUST	LR003178 CLAMP - EXHAUST 60MM, Front	$28.62	1
5A231B	LR068436	CLAMP	LR068436 CLAMP 45MM	$101.33	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER	$11.72	1
5F262	LR017444	INSULATOR - RUBBER	LR017444 INSULATOR - RUBBER Rear	$26.05	4
5K244A	LR078926	MUFFLER - REAR	LR078926 MUFFLER - REAR RH	$1,201.22	1
5K244B	LR076311	MUFFLER - REAR	LR076311 MUFFLER - REAR LH / From: FH531394	$1,025.85	1
5K244B	LR061673	MUFFLER - REAR	LR061673 MUFFLER - REAR LH / To: FH531393	$932.63	1
5K254	LR060572	MUFFLER - REAR	LR060572 MUFFLER - REAR Centre Front, RH Rear / To: FH531354	$1,570.56	1
5K254	LR075455	MUFFLER - REAR	LR075455 MUFFLER - REAR Dual Exhaust / Centre Front, RH Rear / From: FH531355 / To: GH342116	$1,206.34	1
5K254	LR087508	MUFFLER - REAR	LR087508 MUFFLER - REAR Dual Exhaust / Centre Front, RH Rear / From: GH342117 / To: GH601414	$1,206.34	1
5K254	LR093640	MUFFLER - REAR	LR093640 MUFFLER - REAR Dual Exhaust - Dynamic / Centre Front, RH Rear / From: GH601415	$1,206.34	1
5K254	LR093635	MUFFLER - REAR	LR093635 MUFFLER - REAR Dual Exhaust / Centre Front, RH Rear / From: GH601415	$1,238.54	1
