Rear Cross Member & Stabilizer Bar (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Cross Member & Stabilizer Bar (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023457 BOLT $6.07 To Order
Photo Part No Description Price (each) Stock
LR001188 BOLT $4.28 To Order
Photo Part No Description Price (each) Stock
LR060389 BOLT - FLANGED HEX. $12.54 To Order
Photo Part No Description Price (each) Stock
LR000039 BOLT $1.66 To Order
Photo Part No Description Price (each) Stock
LR033244 NUT $2.98 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.34 IN STOCK
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR000095 SCREW AND WASHER $0.63 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.25 To Order
Photo Part No Description Price (each) Stock
LR063934 INSULATOR - STABILIZER BAR $77.65 To Order
Photo Part No Description Price (each) Stock
LR066382 INSULATOR - CROSS MEMBER $59.86 To Order
Photo Part No Description Price (each) Stock
LR061260 BAR - REAR STABILIZER $210.09 To Order
LR061262 BAR - REAR STABILIZER $188.53 To Order
LR066628 BAR - REAR STABILIZER $188.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR005746 CLAMP - RUBBER BUSH $5.67 To Order
Photo Part No Description Price (each) Stock
LR078717 CROSSMEMBER - REAR $1,903.37 To Order
Photo Part No Description Price (each) Stock
LR067192 WEIGHT - VIBRATION DAMPER $188.00 To Order
LR067193 WEIGHT - VIBRATION DAMPER $188.00 To Order
Photo Part No Description Price (each) Stock
LR060486 INSULATOR - CROSS MEMBER $91.05 To Order
Photo Part No Description Price (each) Stock
LR061535 INSULATOR - CROSS MEMBER $96.58 To Order
Photo Part No Description Price (each) Stock
LR065717 INSULATOR - DIFFERENTIAL $59.86 To Order
Photo Part No Description Price (each) Stock
LR061271 LINK - STABILIZER BAR $64.86 To Order
Photo Part No Description Price (each) Stock
LR061272 LINK - STABILIZER BAR $64.86 To Order
Photo Part No Description Price (each) Stock
LR060611 HEAT SHIELD - UNDERFLOOR $8.69 To Order
Photo Part No Description Price (each) Stock
LR060616 HEAT SHIELD - UNDERFLOOR $58.65 To Order
Photo Part No Description Price (each) Stock
LR060484 REINFORCEMENT - REAR CROSSMEMBER $27.59 To Order
Photo Part No Description Price (each) Stock
LR060481 REINFORCEMENT - REAR CROSSMEMBER $31.34 To Order
Photo Part No Description Price (each) Stock
LR073536 REINFORCEMENT - REAR CROSSMEMBER $63.21 To Order
Photo Part No Description Price (each) Stock
LR065716 REINFORCEMENT - REAR CROSSMEMBER $69.17 To Order
Photo Part No Description Price (each) Stock
LR065714 BRACKET - CROSS MEMBER TO FLOOR $76.77 To Order
Photo Part No Description Price (each) Stock
LR060608 HEAT SHIELD - UNDERFLOOR $7.31 To Order
Photo Part No Description Price (each) Stock
LR104936 HEAT SHIELD - UNDERFLOOR $18.28 To Order
View All

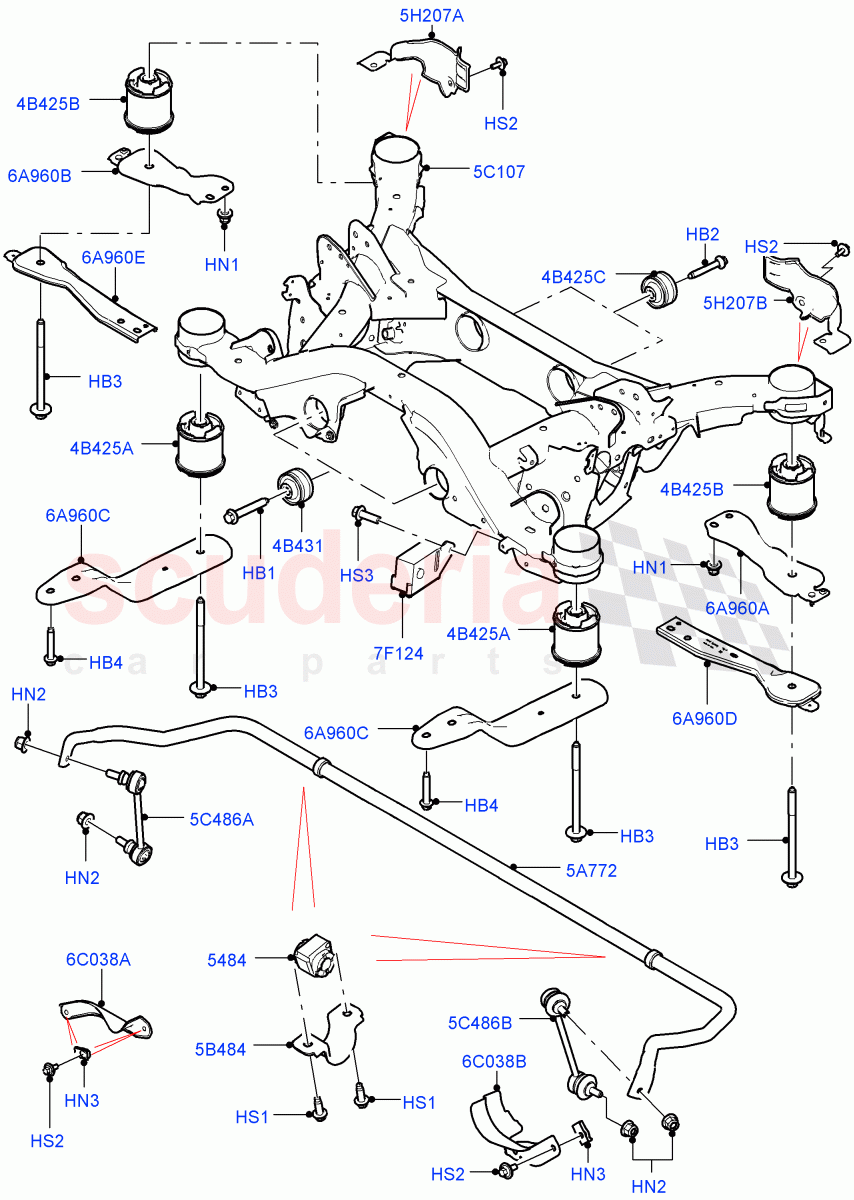

Rear Cross Member & Stabilizer Bar (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR023457
BOLT
Hex Head, M14 X 90 / From: GT000001 		$6.07 2
HB2 LR001188
BOLT
Hexagonal Head, M12 x 80MM / From: GT000001 		$4.28 2
HB3 LR060389
BOLT - FLANGED HEX.
HEX Flange, M14 X 200MM / From: GT000001 		$12.54 4
HB4 LR000039
BOLT
HEX Flange, Hexagonal Head, M12 x 65MM / From: GT000001 		$1.66 4
HN1 LR033244
NUT
Hexagonal Head, M12 / From: GT000001 		$2.98 4
HN2 FY110056
NUT
Hex Head, M10 / From: GT000001
IN STOCK 		$4.34 4
HN3 LR000053
NUT - FLANGED
M6 / From: GT000001
IN STOCK 		$1.63 2
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: GT000001 		$0.61 4
HS2 LR000095
SCREW AND WASHER
M6 X 16 HEX / From: GT000001 		$0.63 4
HS3 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM / From: GT000001 		$2.25 2
4B425A LR060486
INSULATOR - CROSS MEMBER
Frame To Body, Front / From: GT000001 		$91.05 2
4B425B LR061535
INSULATOR - CROSS MEMBER
Frame To Body, Rear / From: GT000001 		$96.58 2
4B425C LR065717
INSULATOR - DIFFERENTIAL
Differential, Rear / From: GT000001 		$59.86 2
4B431 LR066382
INSULATOR - CROSS MEMBER
Differential, Front / From: GT000001 		$59.86 2
5A772 LR061260
BAR - REAR STABILIZER
Stabilizer Bar Rear - Class A, With 5 Seat Configuration / From: GT000001 		$210.09 1
5A772 LR061262
BAR - REAR STABILIZER
Stabilizer Bar Rear - Class B, With 5 Seat Configuration / From: GT000001 		$188.53 1
5A772 LR066628
BAR - REAR STABILIZER
Stabilizer Bar Rear - Class D, With 7 Seat Configuration / From: GT000001 		$188.53 1
5A772 LR066629
BAR - REAR STABILIZER
Stabilizer Bar Rear - Class E, With 7 Seat Configuration / From: GT000001 		$182.19 1
5B484 LR005746
CLAMP - RUBBER BUSH
Stabilizer Bar / From: GT000001 		$5.67 2
5C107 LR078717
CROSSMEMBER - REAR
From: GT000001 		$1,903.37 1
5C486A LR061271
LINK - STABILIZER BAR
RH / From: GT000001 		$64.86 1
5C486B LR061272
LINK - STABILIZER BAR
LH / From: GT000001 		$64.86 1
5H207A LR060611
HEAT SHIELD - UNDERFLOOR
RH / From: GT000001 		$8.69 1
5H207B LR060616
HEAT SHIELD - UNDERFLOOR
LH / From: GT000001 		$58.65 1
6A960A LR060484
REINFORCEMENT - REAR CROSSMEMBER
With 7 Seat Configuration / Frame To Body, LH Rear / From: GT000001 		$27.59 1
6A960B LR060481
REINFORCEMENT - REAR CROSSMEMBER
With 7 Seat Configuration / Frame To Body, RH Rear / From: GT000001 		$31.34 1
6A960C LR073536
REINFORCEMENT - REAR CROSSMEMBER
Frame To Body, Front / From: GT000001 		$63.21 2
6A960D LR065716
REINFORCEMENT - REAR CROSSMEMBER
With 5 Seat Configuration / Frame To Body, LH Rear / From: GT000001 		$69.17 1
6A960E LR065714
BRACKET - CROSS MEMBER TO FLOOR
With 5 Seat Configuration / Frame To Body, RH Rear / From: GT000001 		$76.77 1
6C038A LR060608
HEAT SHIELD - UNDERFLOOR
RH, Crossmember, Front / From: GT000001 		$7.31 1
6C038B LR104936
HEAT SHIELD - UNDERFLOOR
2.0L I4 Mid DOHC AJ200 Petrol, Dynamic Driveline, Spare Wheel - Reduced Section Steel, With 7 Seat Configuration / LH, Crossmember, Front / From: JT000001 		$18.28 1
7F124 LR067192
WEIGHT - VIBRATION DAMPER
2.0L I4 Mid AJ200 Petrol E100 / RH / From: GT000001 		$188.00 1
7F124 LR067193
WEIGHT - VIBRATION DAMPER
2.0L I4 Mid AJ200 Petrol E100 / LH / From: GT000001 		$188.00 1
5484 LR063934
INSULATOR - STABILIZER BAR
Stabilizer Bar / From: GT000001 		$77.65 2
