Rear Axle (Changsu (China), Efficient Driveline) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Axle (Changsu (China), Efficient Driveline) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003777 BOLT $2.08 To Order
Photo Part No Description Price (each) Stock
LR004136 BOLT - HEX.HEAD $1.76 To Order
LR004136 BOLT - HEX.HEAD $1.76 To Order
LR004136 BOLT - HEX.HEAD $1.76 To Order
Photo Part No Description Price (each) Stock
LR037085 CLIP - DOUBLE $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG $3.60 IN STOCK
Photo Part No Description Price (each) Stock
LR076676 RING - SEALING $69.11 To Order
Photo Part No Description Price (each) Stock
LR019450 VALVE - VENT $21.46 To Order
Photo Part No Description Price (each) Stock
LR073539 DIFFERENTIAL AND CARRIER $3,066.04 To Order
Photo Part No Description Price (each) Stock
LR051312 PIPE - CONNECTING $18.93 To Order
Photo Part No Description Price (each) Stock
LR073538 COUPLING - DRIVE SHAFT $5,163.56 To Order
Photo Part No Description Price (each) Stock
LR051320 COVER - OIL RESERVOIR $82.42 To Order
Photo Part No Description Price (each) Stock
LR060388 TUBE - BREATHER $73.36 To Order
Photo Part No Description Price (each) Stock
LR101752 FLANGE - COUPLING SHAFT $191.43 IN STOCK
LR101752 FLANGE - COUPLING SHAFT $191.43 IN STOCK
Photo Part No Description Price (each) Stock
LR051346 FLANGE - DIFFERENTIAL $302.37 To Order
Photo Part No Description Price (each) Stock
LR051347 KIT - OIL SEALS $56.76 To Order
Photo Part No Description Price (each) Stock
LR003144 SEAL $13.73 To Order
Photo Part No Description Price (each) Stock
LR073537 CONTROL UNIT - HALDEX $789.06 To Order
Photo Part No Description Price (each) Stock
LR051321 PUMP - HALDEX $611.48 To Order
Photo Part No Description Price (each) Stock
LR051311 BRACKET - DIFFERENTIAL $272.46 To Order
Photo Part No Description Price (each) Stock
LR023442 SEAL - DRIVING PINION OIL $28.80 To Order
Photo Part No Description Price (each) Stock
LR061614 PLUG - DRAIN $6.97 To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER $10.81 To Order
View All

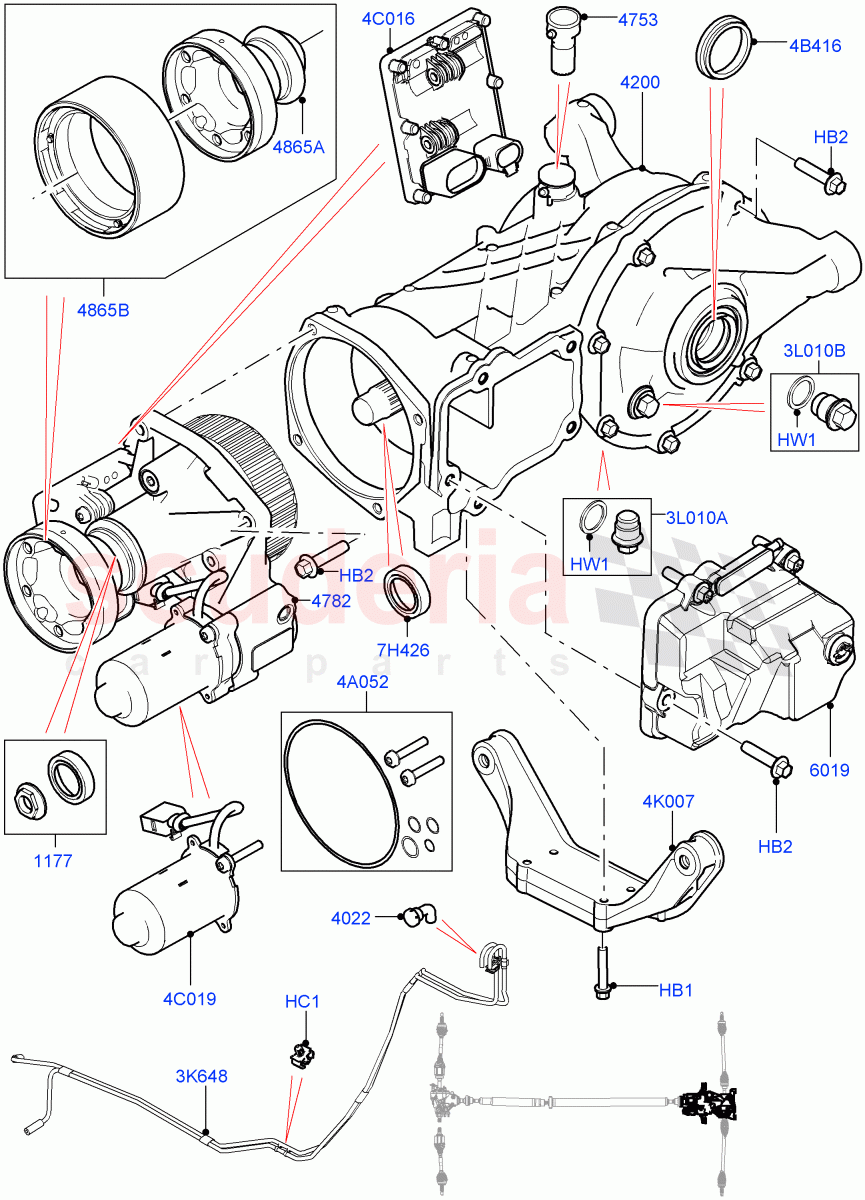

Rear Axle (Changsu (China), Efficient Driveline) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR003777
BOLT
M8 x 50MM / From: FG000001 		$2.08 4
HB2 LR004136
BOLT - HEX.HEAD
M8 X 35MM, Oil Pan / From: FG000001 		$1.76 5
HB2 LR004136
BOLT - HEX.HEAD
Differential Cover, M8 X 35MM / From: FG000001 		$1.76 7
HB2 LR004136
BOLT - HEX.HEAD
For Haldex, M8 X 35MM / From: FG000001 		$1.76 4
HC1 LR037085
CLIP - DOUBLE
6MM, Double / From: FG000001
IN STOCK 		$1.11 1
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer / From: FG000001
IN STOCK 		$3.60 2
3K648 LR060388
TUBE - BREATHER
6 Speed Manual Trans M66 - AWD / From: FG000001 		$73.36 1
3L010A LR061614
PLUG - DRAIN
Drain Plug / From: FG000001 		$6.97 1
3L010B LR002877
PLUG - FILLER
Filler Plug / From: FG000001 		$10.81 1
4A052 LR051347
KIT - OIL SEALS
Includes Seals For Haldex Coupling, Pump And Overflow Valve / From: FG000001 		$56.76 1
4B416 LR003144
SEAL
Driveshaft / From: FG000001 		$13.73 2
4C016 LR073537
CONTROL UNIT - HALDEX
For Haldex, Kit - Includes Fixings / From: FG000001 		$789.06 1
4C019 LR051321
PUMP - HALDEX
Kit - Includes Fixings / From: FG000001 		$611.48 1
4K007 LR051311
BRACKET - DIFFERENTIAL
From: FG000001 		$272.46 1
7H426 LR023442
SEAL - DRIVING PINION OIL
For Differential Flange, Pinion Gear / From: FG000001 		$28.80 1
1177 LR076676
RING - SEALING
For Haldex, Includes Seal, Nut / From: FG000001 		$69.11 1
4022 LR019450
VALVE - VENT 		$21.46 1
4200 LR073539
DIFFERENTIAL AND CARRIER
From: FG000001 		$3,066.04 1
4753 LR051312
PIPE - CONNECTING
Breather Pipe / From: FG000001 		$18.93 1
4782 LR073538
COUPLING - DRIVE SHAFT
Haldex Coupling / From: FG000001 		$5,163.56 1
4865A LR101752
FLANGE - COUPLING SHAFT
From: FG000001 / To: HG379587
IN STOCK 		$191.43 1
4865A LR101752
FLANGE - COUPLING SHAFT
From: HG379388
IN STOCK 		$191.43 1
4865B LR051346
FLANGE - DIFFERENTIAL
From: FG000001 		$302.37 1
6019 LR051320
COVER - OIL RESERVOIR
Oil Pan / From: FG000001 		$82.42 1
