Drive Shaft - Rear Axle Drive (Changsu (China), Efficient Driveline) ((V) Fromfg000001, (V)...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Drive Shaft - Rear Axle Drive (Changsu (China), Efficient Driveline) ((V) FROMFG000001, (V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001193 BOLT $2.37 To Order
Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR004239 WASHER - SPECIAL $0.86 To Order
LR137637 WASHER - SPECIAL $1.06 To Order
Photo Part No Description Price (each) Stock
LR072603 SHAFT - MAIN $1,810.27 To Order
LR072103 SHAFT - MAIN $1,560.56 To Order
Photo Part No Description Price (each) Stock
LR030350 BRACKET - PROPSHAFT SUPPORT $78.67 To Order
Photo Part No Description Price (each) Stock
LR034078 HEAT SHIELD - PROPSHAFT BEARING $47.23 To Order
View All

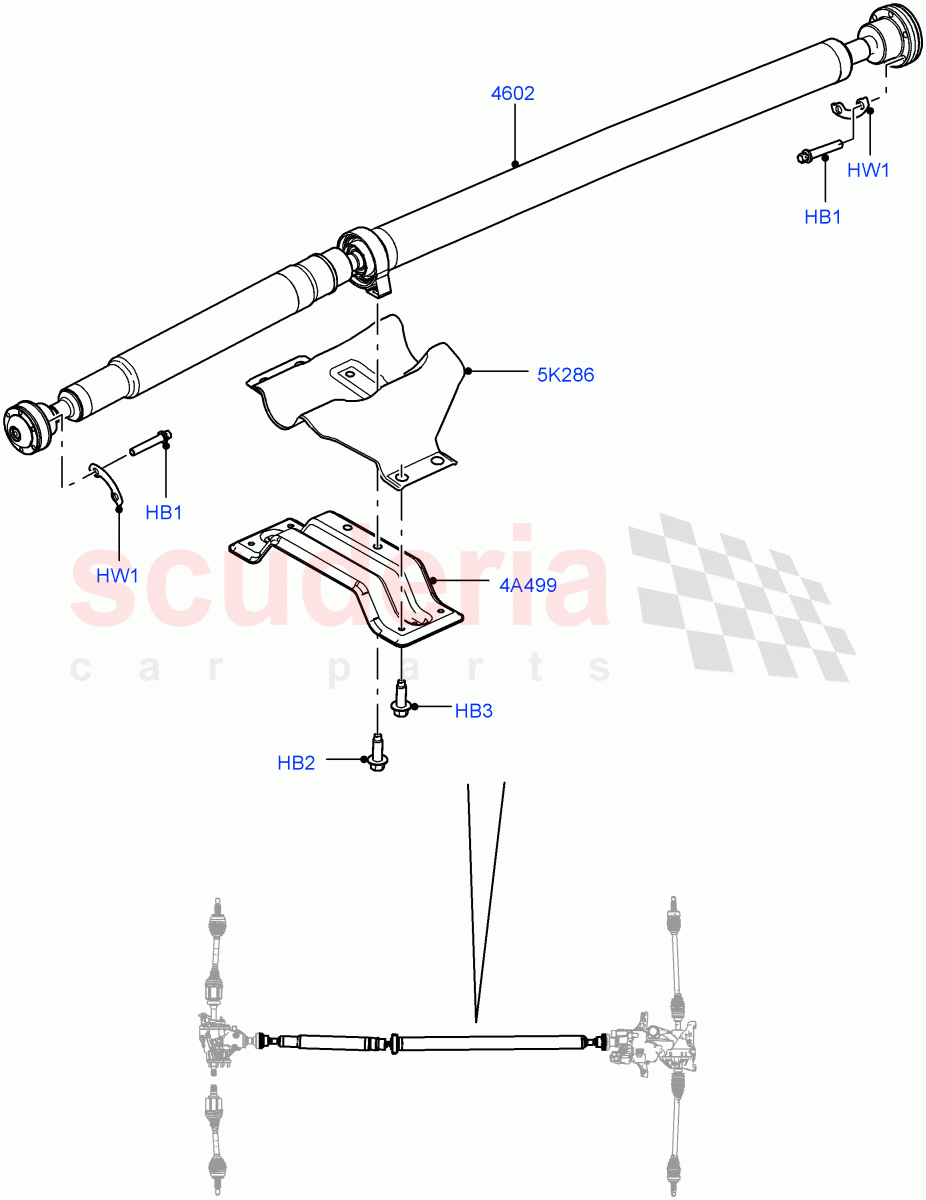

Drive Shaft - Rear Axle Drive (Changsu (China), Efficient Driveline) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001193
BOLT
M8 X 45MM, Service Fit - Flange Type Propshaft Connection, Torx / From: FG000001 		$2.37 12
HB2 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: FG000001 		$0.67 2
HB3 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: FG000001 		$1.02 4
HW1 LR004239
WASHER - SPECIAL
Service Fit - Flange Type Propshaft Connection / From: FG000001 / To: KG446856 		$0.86 6
HW1 LR137637
WASHER - SPECIAL
Service Fit - Flange Type Propshaft Connection / From: KG446857 		$1.06 6
4A499 LR030350
BRACKET - PROPSHAFT SUPPORT
Front / From: FG000001 		$78.67 1
5K286 LR034078
HEAT SHIELD - PROPSHAFT BEARING
2.0L 16V TIVCT T/C 240PS Petrol / From: FG000001 		$47.23 1
4602 LR072603
SHAFT - MAIN
From: FG000001 / To: GG347883 		$1,810.27 1
4602 LR072103
SHAFT - MAIN
From: HG347884 		$1,560.56 1
