Name: Front Knuckle And Hub (Halewood (UK)) ((V) TOKH999999)
Rating: 4.3 (1 reviews)

Front Knuckle And Hub (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Knuckle And Hub (Halewood (UK)) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024507	BOLT	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	RUE000010	CIRCLIP	$8.37	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	$1.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033244	NUT	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	$10.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR060751	HUB - WHEEL	$227.20	To Order
	LR138237	HUB - WHEEL	$277.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR179001	BEARING - WHEEL HUB	$126.34	To Order
	LR078387	BEARING - WHEEL HUB	$140.46	To Order
	LR122585	BEARING - WHEEL HUB	$120.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR060196	KNUCKLE - FRONT WHEEL	$554.90	To Order
	LR060195	KNUCKLE - FRONT WHEEL	$644.81	To Order
	LR072598	KNUCKLE - FRONT WHEEL	$775.45	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092331	DUCT - BRAKE DISC COOLING	$82.73	To Order
	LR092332	DUCT - BRAKE DISC COOLING	$82.73	To Order
	LR110395	DUCT - BRAKE DISC COOLING	$80.29	To Order

...and 1 more part variants. See table on right for more details.

View All

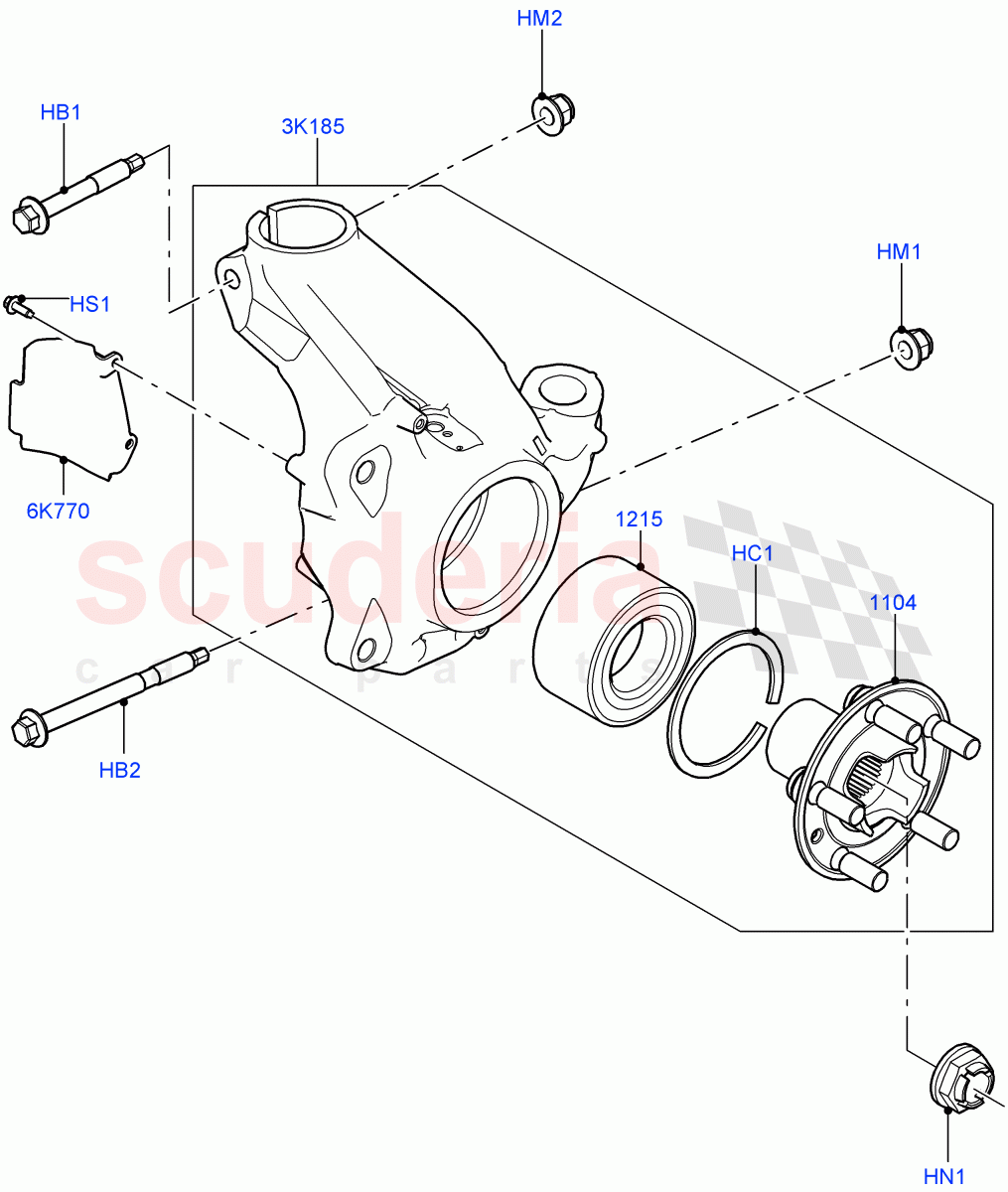

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR024507	BOLT	LR024507 BOLT Hex Head, M12 x 80MM, Upper	$4.04	2
HB2	LR024747	BOLT	LR024747 BOLT Hexagonal Head, Lower, M12 X 112	$3.39	2
HC1	RUE000010	CIRCLIP	RUE000010 CIRCLIP	$8.37	2
HM1	FY112056	NUT - HEX. IN STOCK	FY112056 NUT - HEX. Hex Nut Type, M12 IN STOCK	$1.95	2
HM2	LR033244	NUT	LR033244 NUT HEX Flange, Hex Nut Type, M12, With Free Spinning Washer	$2.97	2
HN1	LR024151	NUT AND WASHER - HEX. IN STOCK	LR024151 NUT AND WASHER - HEX. M24X2.0 IN STOCK	$10.20	2
HS1	RYG500190	SCREW IN STOCK	RYG500190 SCREW 2.0L I4 High DOHC AJ200 Petrol / Hexagonal Head, M6 X 16MM / From: JH000001 IN STOCK	$0.73	2
3K185	LR060196	KNUCKLE - FRONT WHEEL	LR060196 KNUCKLE - FRONT WHEEL LH / To: FH506176	$554.90	1
3K185	LR060195	KNUCKLE - FRONT WHEEL	LR060195 KNUCKLE - FRONT WHEEL RH / To: FH506176	$644.81	1
3K185	LR072598	KNUCKLE - FRONT WHEEL	LR072598 KNUCKLE - FRONT WHEEL RH / From: FH506177 / To: FH543634	$775.45	1
3K185	LR077914	KNUCKLE - FRONT WHEEL	LR077914 KNUCKLE - FRONT WHEEL RH / From: FH543635 / To: GH999999	$721.93	1
3K185	LR072599	KNUCKLE - FRONT WHEEL	LR072599 KNUCKLE - FRONT WHEEL LH / From: FH506177 / To: FH543634	$775.45	1
3K185	LR078178	KNUCKLE - FRONT WHEEL	LR078178 KNUCKLE - FRONT WHEEL LH / From: FH543635 / To: GH999999	$760.00	1
3K185	LR078178	KNUCKLE - FRONT WHEEL	LR078178 KNUCKLE - FRONT WHEEL Less AMS Conversion / LH / From: HH000001 / To: HH999999	$760.00	1
3K185	LR077914	KNUCKLE - FRONT WHEEL	LR077914 KNUCKLE - FRONT WHEEL Less AMS Conversion / RH / From: HH000001 / To: HH999999	$721.93	1
3K185	LR096019	KNUCKLE - FRONT WHEEL	LR096019 KNUCKLE - FRONT WHEEL AMS Conversion / LH / From: HH000001 / To: HH999999	$748.30	1
3K185	LR096018	KNUCKLE - FRONT WHEEL	LR096018 KNUCKLE - FRONT WHEEL AMS Conversion / RH / From: HH000001 / To: HH999999	$748.30	1
3K185	LR096018	KNUCKLE - FRONT WHEEL	LR096018 KNUCKLE - FRONT WHEEL Disc And Caliper Size-Frt 18/RR 17 / RH / From: JH000001	$748.30	1
3K185	LR096019	KNUCKLE - FRONT WHEEL	LR096019 KNUCKLE - FRONT WHEEL Disc And Caliper Size-Frt 18/RR 17 / LH / From: JH000001	$748.30	1
3K185	LR109399	KNUCKLE - FRONT WHEEL	LR109399 KNUCKLE - FRONT WHEEL Disc Brake Size Frt 17/RR 17 / RH / From: JH000001	$736.20	1
3K185	LR109400	KNUCKLE - FRONT WHEEL	LR109400 KNUCKLE - FRONT WHEEL Front Disc And Caliper Size 17 / LH / From: JH000001	$723.84	1
6K770	LR092331	DUCT - BRAKE DISC COOLING	LR092331 DUCT - BRAKE DISC COOLING 2.0L I4 High DOHC AJ200 Petrol / RH, Only For 18" Caliper / From: JH000001 / To: JH735143	$82.73	1
6K770	LR092332	DUCT - BRAKE DISC COOLING	LR092332 DUCT - BRAKE DISC COOLING 2.0L I4 High DOHC AJ200 Petrol / LH, Only For 18" Caliper / From: JH000001 / To: JH735143	$82.73	1
6K770	LR110395	DUCT - BRAKE DISC COOLING	LR110395 DUCT - BRAKE DISC COOLING 2.0L I4 High DOHC AJ200 Petrol / RH / From: JH735144	$80.29	1
6K770	LR110396	DUCT - BRAKE DISC COOLING	LR110396 DUCT - BRAKE DISC COOLING 2.0L I4 High DOHC AJ200 Petrol / LH / From: JH735144	$80.29	1
1104	LR060751	HUB - WHEEL	LR060751 HUB - WHEEL RH/LH / To: KH782707	$227.20	2
1104	LR138237	HUB - WHEEL	LR138237 HUB - WHEEL RH/LH / From: KH782708	$277.70	2
1215	LR179001	BEARING - WHEEL HUB	LR179001 BEARING - WHEEL HUB RH/LH / To: GH594858	$126.34	2
1215	LR078387	BEARING - WHEEL HUB	LR078387 BEARING - WHEEL HUB RH/LH / From: GH594859 / To: KH824860	$140.46	2
1215	LR122585	BEARING - WHEEL HUB IN STOCK	LR122585 BEARING - WHEEL HUB RH/LH / From: KH824861 IN STOCK	$120.04	2

Front Knuckle And Hub (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Knuckle And Hub (Halewood (UK)) ((V) TOKH999999)
