Name: Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMFG000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMFG000001)

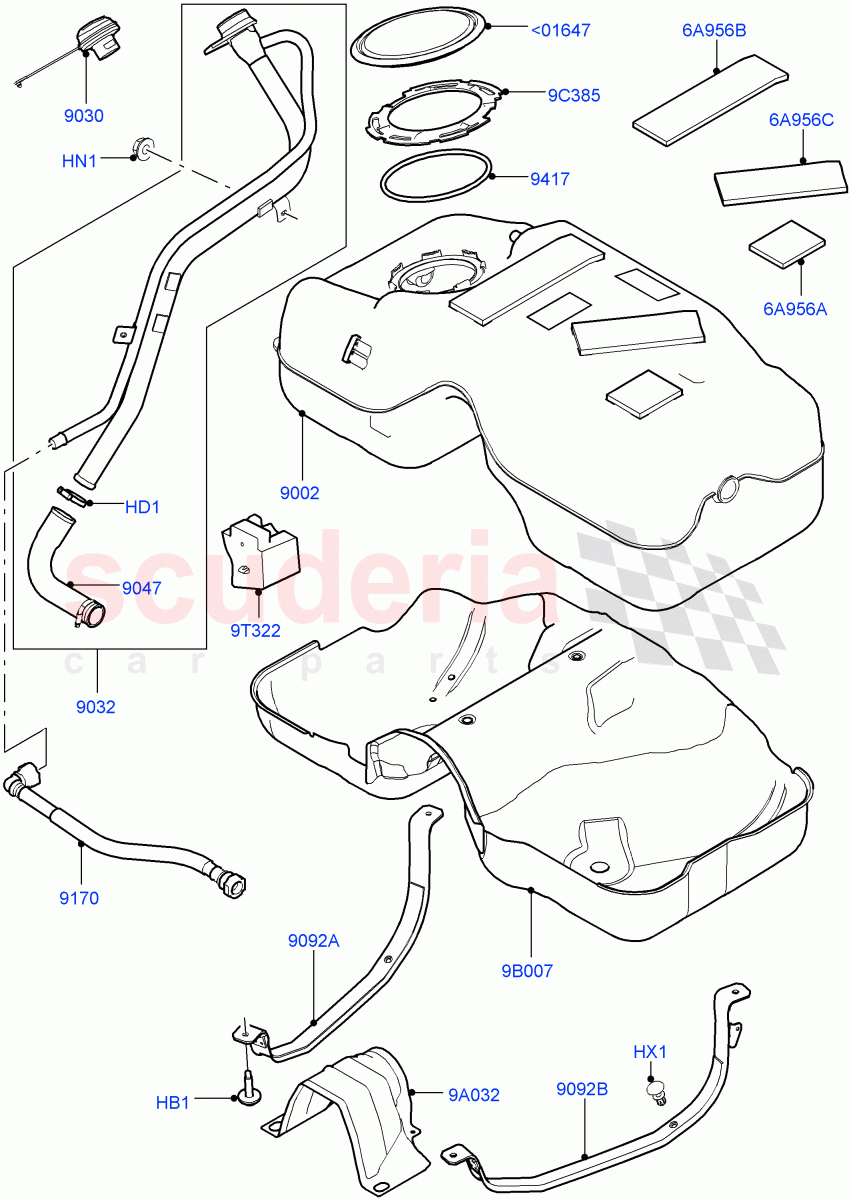

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	$1.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$6.10	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060828	TANK - FUEL	$913.88	To Order
	LR084558	TANK - FUEL	$812.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073377	CAP - FUEL TANK FILLER	$45.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072674	PIPE - FUEL FILLER	$158.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061055	HOSE - FILLER PIPE	$48.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060352	HOSE - VENT	$72.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR060831	STRAP - FUEL TANK	$89.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063940	STRAP - FUEL TANK	$89.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068231	HEAT SHIELD - PROPSHAFT BEARING	$29.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076312	SHIELD - FUEL TANK	$193.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038796	Ring - Retaining	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063975	MOULDING - FUEL TANK PROTECTION	$16.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061062	PLUG - FLOOR PAN	$14.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	$23.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060825	FOAM PAD - ENERGY ABSORBING	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060826	FOAM PAD - ENERGY ABSORBING	$10.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01647	LR061062	PLUG - FLOOR PAN	LR061062 PLUG - FLOOR PAN Cover, Plug / From: FG000001	$14.91	1
HB1	RYG501020	BOLT IN STOCK	RYG501020 BOLT Fuel Tank Strap, M8 X 30MM / From: FG000001 IN STOCK	$1.98	4
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE Fuel Tank Filler Neck - DMTL / 35-50 x 9, ESCORT / From: FG000001	$6.10	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: FG000001 IN STOCK	$1.02	2
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: HG000001	$1.01	2
6A956A	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING LH Front / From: FG000001	$23.31	1
6A956B	LR060825	FOAM PAD - ENERGY ABSORBING	LR060825 FOAM PAD - ENERGY ABSORBING From: FG000001	$10.57	1
6A956C	LR060826	FOAM PAD - ENERGY ABSORBING	LR060826 FOAM PAD - ENERGY ABSORBING From: FG000001	$10.57	1
9A032	LR068231	HEAT SHIELD - PROPSHAFT BEARING	LR068231 HEAT SHIELD - PROPSHAFT BEARING From: FG000001	$29.28	1
9B007	LR076312	SHIELD - FUEL TANK	LR076312 SHIELD - FUEL TANK Bottom, Fuel Tank / From: FG000001	$193.29	1
9C385	LR038796	Ring - Retaining	LR038796 Ring - Retaining From: FG000001	-	1	Enquire
9T322	LR063975	MOULDING - FUEL TANK PROTECTION	LR063975 MOULDING - FUEL TANK PROTECTION From: FG000001	$16.85	1
9002	LR060828	TANK - FUEL	LR060828 TANK - FUEL From: FG000001 / To: GG320937	$913.88	1
9002	LR084558	TANK - FUEL	LR084558 TANK - FUEL From: GG320938	$812.66	1
9030	LR073377	CAP - FUEL TANK FILLER	LR073377 CAP - FUEL TANK FILLER From: FG000001	$45.31	1
9032	LR072674	PIPE - FUEL FILLER	LR072674 PIPE - FUEL FILLER From: FG000001	$158.25	1
9047	LR061055	HOSE - FILLER PIPE	LR061055 HOSE - FILLER PIPE From: FG000001	$48.25	1
9092A	LR060831	STRAP - FUEL TANK	LR060831 STRAP - FUEL TANK RH / From: FG000001	$89.59	1
9092B	LR063940	STRAP - FUEL TANK	LR063940 STRAP - FUEL TANK LH / From: FG000001	$89.59	1
9170	LR060352	HOSE - VENT	LR060352 HOSE - VENT From: FG000001	$72.47	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: FG000001 IN STOCK	$10.53	1
