Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT $1.98 IN STOCK
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.11 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $1.01 To Order
LR115125 RETAINER - RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
LR060827 TANK - FUEL $1,193.15 To Order
LR060828 TANK - FUEL $914.74 To Order
LR084559 TANK - FUEL $1,193.15 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR049865 CAP - FUEL TANK FILLER $28.77 To Order
LR053665 CAP - FUEL TANK FILLER $34.82 To Order
LR092779 CAP - FUEL TANK FILLER $39.46 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060848 PIPE - FUEL FILLER $150.74 To Order
LR060849 PIPE - FUEL FILLER $164.13 To Order
LR072674 PIPE - FUEL FILLER $158.40 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061055 HOSE - FILLER PIPE $48.30 To Order
LR104413 HOSE - FILLER PIPE $71.98 To Order
LR061054 HOSE - FILLER PIPE $48.31 To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT $72.53 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.54 IN STOCK
Photo Part No Description Price (each) Stock
LR060831 STRAP - FUEL TANK $89.68 To Order
LR090627 STRAP - FUEL TANK $224.20 To Order
Photo Part No Description Price (each) Stock
LR063940 STRAP - FUEL TANK $89.68 To Order
LR090626 STRAP - FUEL TANK $224.20 To Order
Photo Part No Description Price (each) Stock
LR068231 HEAT SHIELD - PROPSHAFT BEARING $29.31 To Order
LR077096 HEAT SHIELD - PROPSHAFT BEARING $69.39 To Order
Photo Part No Description Price (each) Stock
LR112839 SHIELD $49.10 To Order
Photo Part No Description Price (each) Stock
LR076312 SHIELD - FUEL TANK $193.47 To Order
Photo Part No Description Price (each) Stock
LR038796 Ring - Retaining Enquire To Order
Photo Part No Description Price (each) Stock
LR063975 MOULDING - FUEL TANK PROTECTION $16.86 To Order
Photo Part No Description Price (each) Stock
LR061062 PLUG - FLOOR PAN $14.92 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.33 To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING $10.58 To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING $10.58 To Order
Photo Part No Description Price (each) Stock
LR061784 FOAM PAD - ENERGY ABSORBING $3.23 To Order
View All

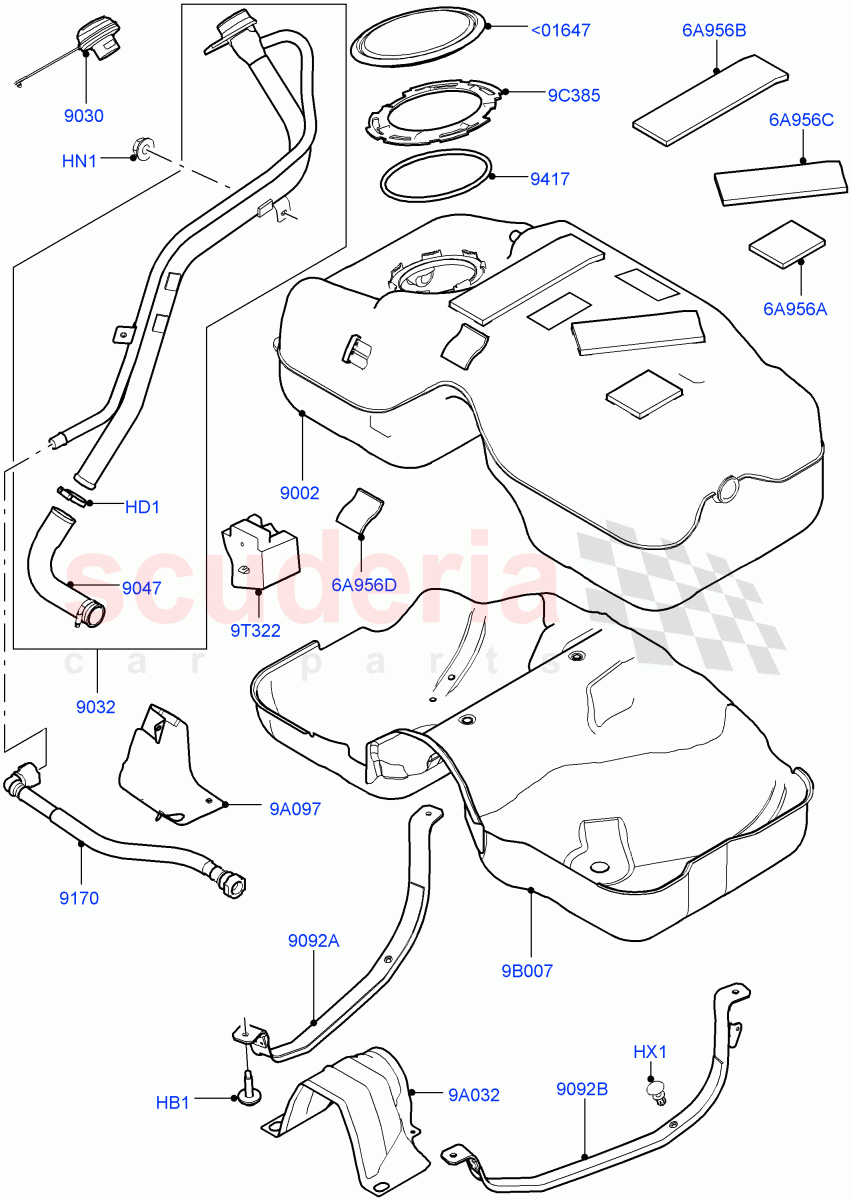

Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01647 LR061062
PLUG - FLOOR PAN
Cover, Plug 		$14.92 1
HB1 RYG501020
BOLT
Fuel Tank Strap, M8 X 30MM
IN STOCK 		$1.98 4
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9, ESCORT, Fuel Tank To Filler Pipe 		$6.11 1
HN1 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.02 2
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / To: JH762920 		$1.01 2
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921 		$1.02 2
6A956A LR025789
FOAM PAD - ENERGY ABSORBING
LH Front 		$23.33 1
6A956B LR060825
FOAM PAD - ENERGY ABSORBING 		$10.58 1
6A956C LR060826
FOAM PAD - ENERGY ABSORBING 		$10.58 1
6A956D LR061784
FOAM PAD - ENERGY ABSORBING
2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / 85mm x 65mm x 2mm 		$3.23 4
9A032 LR068231
HEAT SHIELD - PROPSHAFT BEARING
To: FH543634 		$29.31 1
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
From: FH543635 		$69.39 1
9A097 LR112839
SHIELD
Filler Pipe 		$49.10 1
9B007 LR076312
SHIELD - FUEL TANK
Bottom, Fuel Tank 		$193.47 1
9C385 LR038796
Ring - Retaining 		- 1 Enquire
9T322 LR063975
MOULDING - FUEL TANK PROTECTION 		$16.86 1
9002 LR060827
TANK - FUEL
2.0L 16V TIVCT T/C 240PS Petrol, With Extra Engine Cooling System / To: GH577770 		$1,193.15 1
9002 LR060828
TANK - FUEL
2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / To: GH579249 		$914.74 1
9002 LR084559
TANK - FUEL
2.0L 16V TIVCT T/C 240PS Petrol, With Extra Engine Cooling System / From: GH577771 / To: HH705771 		$1,193.15 1
9002 LR084558
TANK - FUEL
2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / From: GH579250 		$813.42 1
9002 LR101577
TANK - FUEL
2.0L 16V TIVCT T/C 240PS Petrol, With Extra Engine Cooling System / From: HH705772 		$1,193.15 1
9030 LR049865
CAP - FUEL TANK FILLER
(+)"CDN/MEX/USA", Fuel Tank Filler Neck - DMTL / To: GH628873 		$28.77 1
9030 LR053665
CAP - FUEL TANK FILLER
(-)"CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded / To: LH876849 		$34.82 1
9030 LR092779
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: GH628874 / To: KH786113 		$39.46 1
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: KH786114 / To: LH877317 		$40.69 1
9030 LR138718
CAP - FUEL TANK FILLER
(-)"CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded / From: LH876850 		$39.24 1
9030 LR138720
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: LH877318 		$39.24 1
9032 LR060848
PIPE - FUEL FILLER
2.0L 16V TIVCT T/C 240PS Petrol, With Extra Engine Cooling System / (+)"Gulf" / To: HH697886 		$150.74 1
9032 LR060849
PIPE - FUEL FILLER
(-)"CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded / To: FH502750 		$164.13 1
9032 LR072674
PIPE - FUEL FILLER
(-)"CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded / From: HH720721 		$158.40 1
9032 LR104307
PIPE - FUEL FILLER
(+)"CDN/MEX/USA", Fuel Tank Filler Neck - DMTL / (+)"Gulf" / From: HH720722 		$238.83 1
9032 LR104307
PIPE - FUEL FILLER
(+)"CDN/MEX/USA", 2.0L 16V TIVCT T/C 240PS Petrol, With Extra Engine Cooling System / (+)"Gulf" / From: HH697887 / To: HH720721 		$238.83 1
9032 LR072674
PIPE - FUEL FILLER
(-)"CDN/MEX/USA", 2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / (+)"Gulf" / From: FH502751 / To: HH720720 		$158.40 1
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded 		$48.30 1
9047 LR104413
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: HH698285 		$71.98 1
9047 LR061054
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / To: HH698284 		$48.31 1
9092A LR060831
STRAP - FUEL TANK
RH 		$89.68 1
9092A LR090627
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / RH / From: HH000001 		$224.20 1
9092B LR063940
STRAP - FUEL TANK
LH 		$89.68 1
9092B LR090626
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / LH / From: HH000001 		$224.20 1
9170 LR060352
HOSE - VENT 		$72.53 1
9417 LR117476
GASKET
O-Ring
IN STOCK 		$10.54 1
