Fuel Lines (Rear) (2.0L 16V Tivct T/C 240Ps Petrol, Halewood (Uk), Fuel Tank Filler Neck - Unleaded)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Lines (Rear) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), Fuel Tank Filler Neck - Unleaded)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006655 CLIP $1.22 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.43 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
SDG500030 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
LR060841 TUBE - FUEL FEED $40.77 To Order
Photo Part No Description Price (each) Stock
LR027068 TUBE - FUEL VAPOUR $41.60 To Order
Photo Part No Description Price (each) Stock
LR060357 TUBE - FUEL VAPOUR $59.52 To Order
Photo Part No Description Price (each) Stock
LR003486 RESERVOIR - FUEL TANK VENT SYSTEM $52.80 To Order
Photo Part No Description Price (each) Stock
LR027057 CANNISTER - FUEL VAPOUR STORE $98.67 To Order
Photo Part No Description Price (each) Stock
LR060356 HOSE - FUEL VAPOUR $44.21 To Order
Photo Part No Description Price (each) Stock
LR060353 TUBE - FUEL VAPOUR $41.07 To Order
Photo Part No Description Price (each) Stock
LR060836 TUBE - FUEL SUPPLY $43.21 To Order
Photo Part No Description Price (each) Stock
LR060837 TUBE - FUEL SUPPLY $40.25 To Order
View All

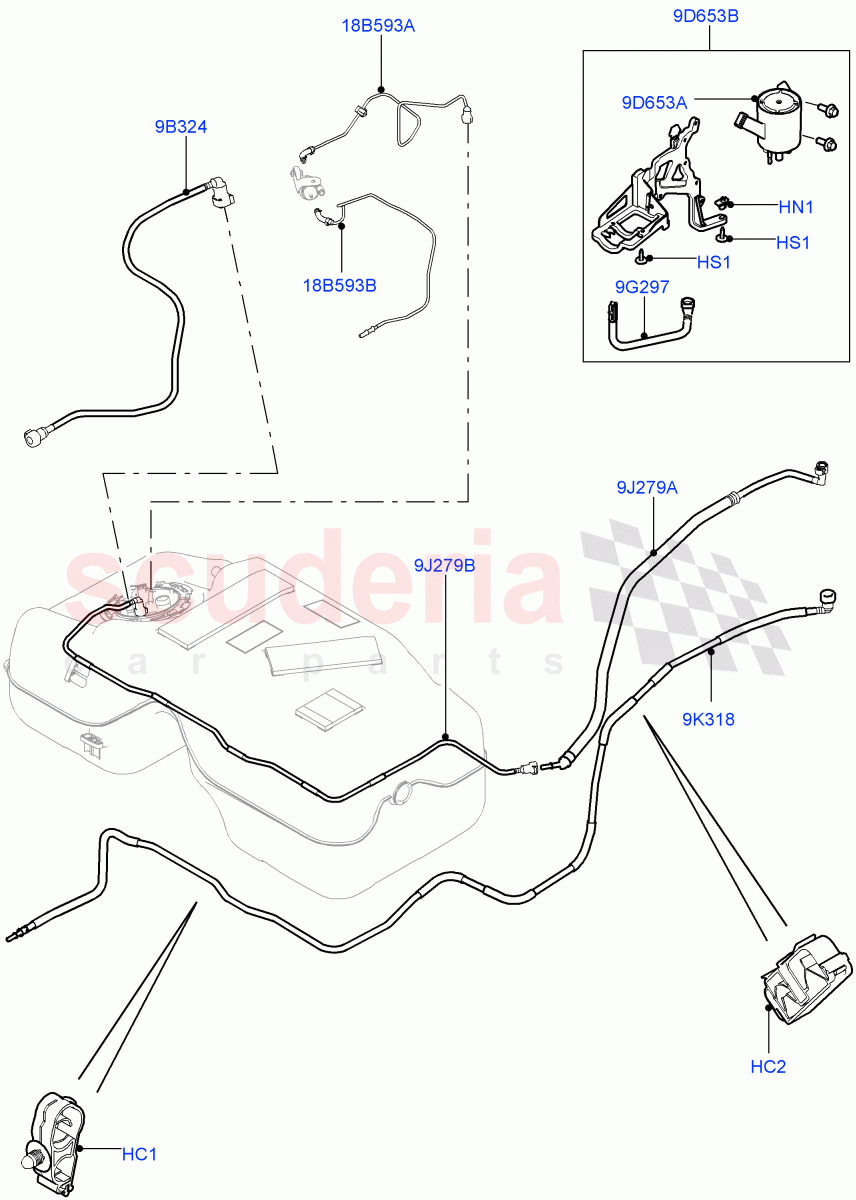

Fuel Lines (Rear) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), Fuel Tank Filler Neck - Unleaded) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 		$1.22 3
HC2 LR060351
CLIP - HOSE
Hose 		$4.43 3
HN1 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.62 1
HS1 SDG500030
SCREW
M6 x 27MM, Screw And Washer 		$1.16 2
9B324 LR060841
TUBE - FUEL FEED
From Fuel Tank To Under Floor Pipes 		$40.77 1
9D653A LR003486
RESERVOIR - FUEL TANK VENT SYSTEM
Charcoal Cannister 		$52.80 1
9D653B LR027057
CANNISTER - FUEL VAPOUR STORE
Charcoal Cannister, With Bracket 		$98.67 1
9G297 LR027068
TUBE - FUEL VAPOUR
Charcoal Cannister 		$41.60 1
9J279A LR060356
HOSE - FUEL VAPOUR
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister 		$44.21 1
9J279B LR060353
TUBE - FUEL VAPOUR
Purge Line From Fuel Tank To Charcoal Canister 		$41.07 1
9K318 LR060357
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet 		$59.52 1
18B593A LR060836
TUBE - FUEL SUPPLY
Fuel Fired Heater With Park Heat / Fuel Tank To Fuel Burning Heater, Pump To Heater 		$43.21 1
18B593B LR060837
TUBE - FUEL SUPPLY
Fuel Fired Heater With Park Heat / Fuel Tank To Fuel Burning Heater, Pump To Heater 		$40.25 1
