Name: Fuel Lines (Centre And Front) (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 5.0 (1 reviews)

Fuel Lines (Centre And Front) (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Lines (Centre And Front) (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C...

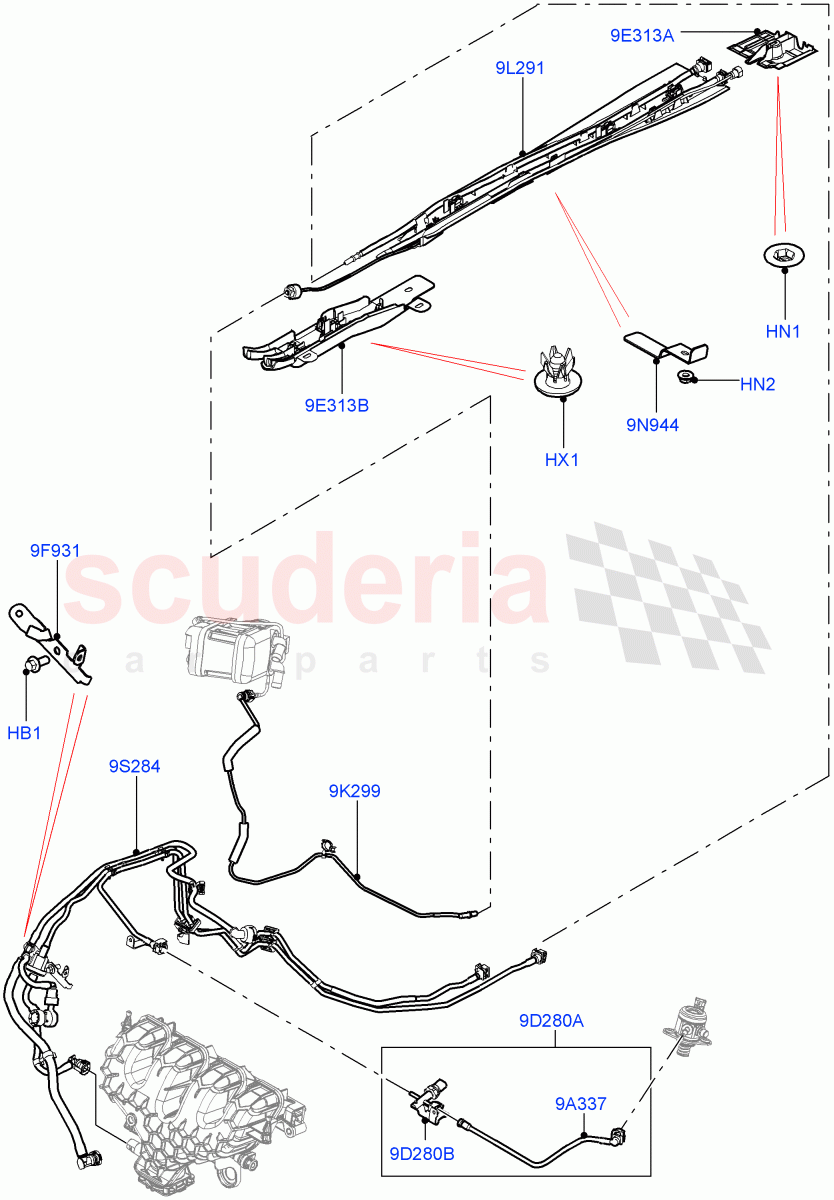

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR108727	PIPE - FUEL	$187.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028850	BRACKET - FUEL VAPOUR REGULATOR	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027884	PIPE - FUEL	$47.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049863	TUBE - FUEL	$333.14	To Order
	LR049864	TUBE - FUEL	$132.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005291	BRACKET - FUEL LINES	$44.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057209	TUBE - FUEL SUPPLY AND VAPOUR	$285.33	IN STOCK
	LR057209	TUBE - FUEL SUPPLY AND VAPOUR	$285.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044010	MANIFOLD - FUEL SUPPLY	$219.37	To Order
	LR079937	MANIFOLD - FUEL SUPPLY	$220.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108726	MANIFOLD - FUEL SUPPLY	$133.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003826	SHIELD - FUEL TUBES	$7.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005634	SHIELD - FUEL TUBES	$6.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500290	BOLT - HEX.HEAD IN STOCK	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM IN STOCK	$0.52	1
HN1	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL M5	$0.61	1
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	1
HX1	LR005896	RETAINER - RIVET IN STOCK	LR005896 RETAINER - RIVET 10 X 4 - 5 IN STOCK	$1.47	1
9A337	LR108727	PIPE - FUEL	LR108727 PIPE - FUEL	$187.35	1
9D280A	LR044010	MANIFOLD - FUEL SUPPLY	LR044010 MANIFOLD - FUEL SUPPLY Includes Fuel Pressure Sensor / To: GH576709	$219.37	1
9D280A	LR079937	MANIFOLD - FUEL SUPPLY	LR079937 MANIFOLD - FUEL SUPPLY Includes Fuel Pressure Sensor / From: GH576710	$220.10	1
9D280B	LR108726	MANIFOLD - FUEL SUPPLY	LR108726 MANIFOLD - FUEL SUPPLY	$133.41	1
9E313A	LR003826	SHIELD - FUEL TUBES	LR003826 SHIELD - FUEL TUBES Rear	$7.76	1
9E313B	LR005634	SHIELD - FUEL TUBES	LR005634 SHIELD - FUEL TUBES Front	$6.17	1
9F931	LR028850	BRACKET - FUEL VAPOUR REGULATOR	LR028850 BRACKET - FUEL VAPOUR REGULATOR For Fuel Tube	$2.76	1
9K299	LR027884	PIPE - FUEL	LR027884 PIPE - FUEL Fuel Fired Heater With Park Heat / Heater Fuel Supply	$47.68	1
9L291	LR049863	TUBE - FUEL	LR049863 TUBE - FUEL Fuel Fired Heater With Park Heat / Under Floor	$333.14	1
9L291	LR049864	TUBE - FUEL	LR049864 TUBE - FUEL With Ptc Heater / Under Floor	$132.56	1
9N944	LR005291	BRACKET - FUEL LINES	LR005291 BRACKET - FUEL LINES Support Bracket	$44.36	1
9S284	LR057209	TUBE - FUEL SUPPLY AND VAPOUR IN STOCK	LR057209 TUBE - FUEL SUPPLY AND VAPOUR 2.0L 16V TIVCT T/C 240PS Petrol IN STOCK	$285.33	1
9S284	LR057209	TUBE - FUEL SUPPLY AND VAPOUR IN STOCK	LR057209 TUBE - FUEL SUPPLY AND VAPOUR 2.0L 16V TIVCT T/C Gen2 Petrol IN STOCK	$285.33	1

Fuel Lines (Centre And Front) (2.0L 16V Tivct T/C Gen2 Petrol, Halewood (Uk), 2.0L 16V Tivct T/C...
