Name: Rear Exhaust System (2.0L I4 Mid DOHC AJ200 Petrol, Dual Exhaust - Dynamic) ((V) FROMJH000001)
Rating: 4.0 (1 reviews)

View All

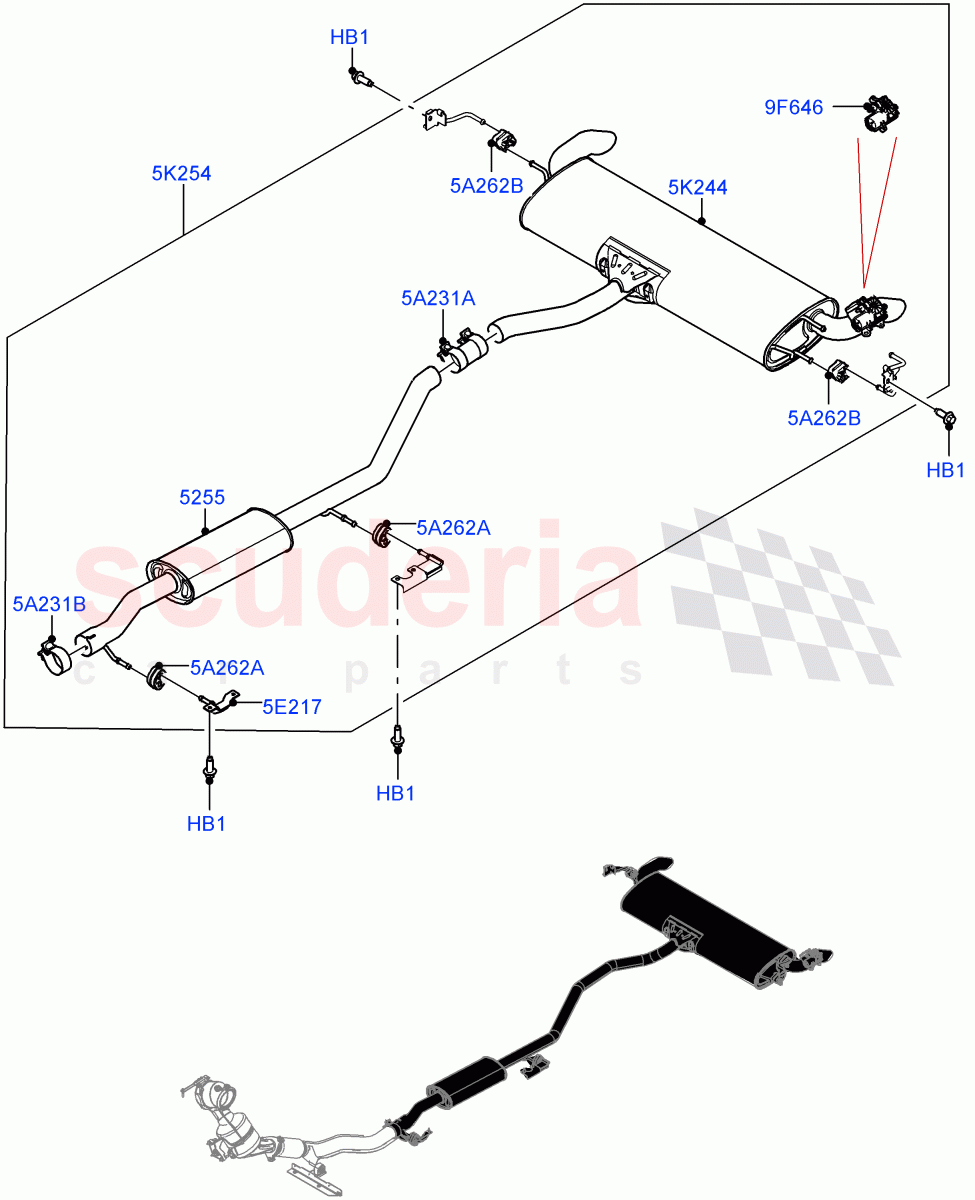

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104336	PIPE - EXHAUST	$529.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$36.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104338	MUFFLER - REAR	$2,393.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	$241.44	To Order
	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	$306.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015370	CLAMP	$105.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003178	CLAMP - EXHAUST	$28.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110335	INSULATOR - RUBBER	$27.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: JH000001	$1.03	6
5A231A	LR015370	CLAMP	LR015370 CLAMP 55MM, Rear / From: JH000001	$105.12	1
5A231B	LR003178	CLAMP - EXHAUST	LR003178 CLAMP - EXHAUST 60MM, Front / From: JH000001	$28.67	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front / From: JH000001	$11.74	2
5A262B	LR110335	INSULATOR - RUBBER	LR110335 INSULATOR - RUBBER Rear / From: JH000001	$27.18	3
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING Front / From: JH000001	$36.84	1
5K244	LR104338	MUFFLER - REAR	LR104338 MUFFLER - REAR From: JH000001	$2,393.25	1
5K254	LR097983	MUFFLER - REAR	LR097983 MUFFLER - REAR From: JH000001 / To: KH818847	$1,600.21	1
5K254	LR138693	MUFFLER - REAR	LR138693 MUFFLER - REAR From: KH818848	$2,429.70	1
9F646	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR117492 ACTUATOR - ELECTRONIC EXHAUST VALVE From: JH000001 / To: KH818847	$241.44	1
9F646	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR137008 ACTUATOR - ELECTRONIC EXHAUST VALVE From: KH818848	$306.22	1
5255	LR104336	PIPE - EXHAUST	LR104336 PIPE - EXHAUST Front / From: JH000001	$529.83	1

Rear Exhaust System (2.0L I4 Mid Dohc Aj200 Petrol, Dual Exhaust - Dynamic) ((V) Fromjh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]
