Name: Front Exhaust System (2.0L AJ20P4 Petrol High PTA, EU6C Emission, Halewood (UK), EU6D - Final (Petrol) Emission, 2.0L AJ20P4 Petrol Mid PTA, Beijing 6 Petrol Emission) ((V) FROMLH000001, (V) TOLH999999)
Rating: 4.1 (1 reviews)

Front Exhaust System (2.0L AJ20P4 Petrol High PTA, EU6C Emission, Halewood (UK), EU6D - Final (Petrol) Emission, 2.0L AJ20P4 Petrol Mid PTA, Beijing 6 Petrol Emission) ((V) FROMLH000001, (V) TOLH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (2.0L AJ20P4 Petrol High PTA, EU6C Emission, Halewood (UK), EU6D - Final...

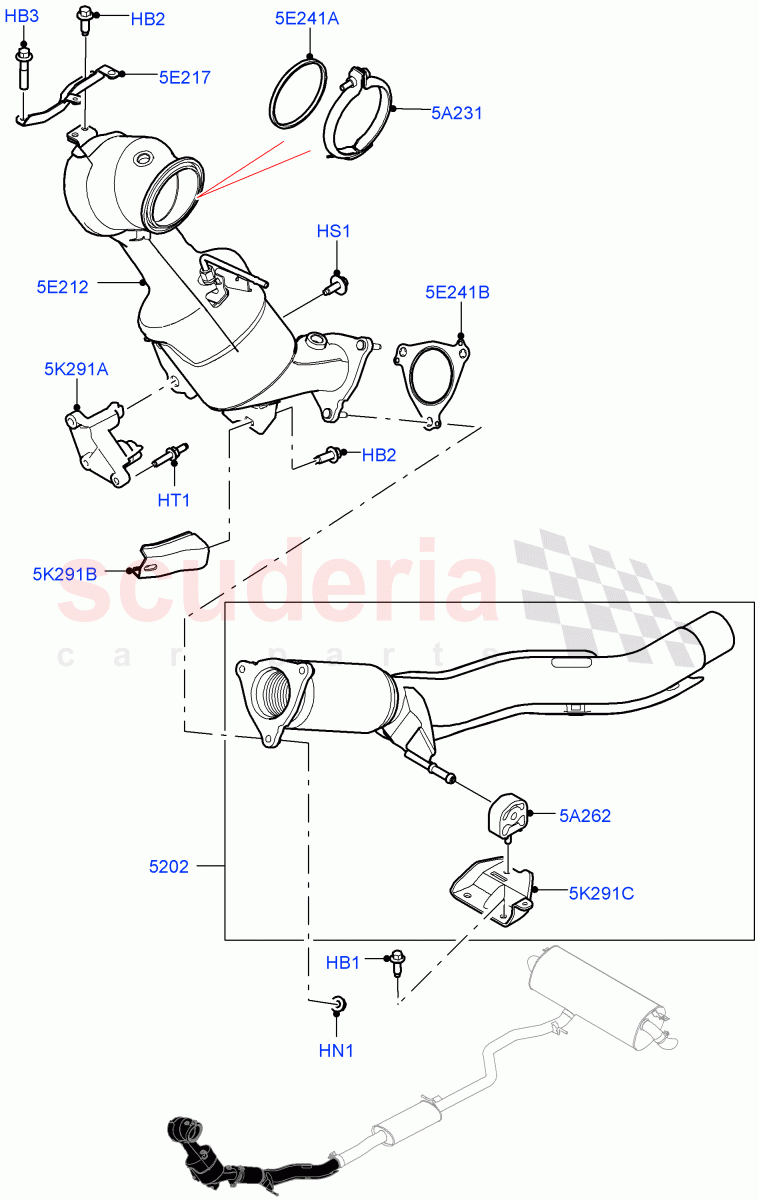

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108086	BOLT	$1.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127655	CATALYTIC CONVERTER	$1,313.69	To Order
	LR138045	CATALYTIC CONVERTER	$1,287.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$38.54	To Order
	LR140098	CLAMP - EXHAUST	$17.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$32.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115630	CATALYST AND PARTICLE FILTER	$2,778.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115626	BRACKET - TURBOCHARGER	$19.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094164	GASKET - EXHAUST PIPE	$16.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114108	BRACKET - EXHAUST PIPE MOUNTING	$48.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114109	BRACKET - EXHAUST PIPE MOUNTING	$32.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133156	BRACKET - EXHAUST PIPE MOUNTING	$33.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: LH000001	$1.03	2
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM / From: LH000001 IN STOCK	$1.43	4
HB3	FB108086	BOLT IN STOCK	FB108086 BOLT Hexagonal Head, M8 x 40MM, To Cylinder Head / From: LH000001 IN STOCK	$1.97	1
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 / From: LH000001 IN STOCK	$0.40	3
HS1	PYG500050	SCREW IN STOCK	PYG500050 SCREW Bracket, Lower, M8 X 20MM / From: LH000001 IN STOCK	$1.07	2
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: LH000001	$5.04	3
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST Turbocharger / From: LH000001 / To: LH870357	$38.54	1
5A231	LR140098	CLAMP - EXHAUST	LR140098 CLAMP - EXHAUST Turbocharger / From: LH870358	$17.64	1
5A262	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Front / From: LH000001	$32.71	1
5E212	LR115630	CATALYST AND PARTICLE FILTER	LR115630 CATALYST AND PARTICLE FILTER From: LH000001 / To: LH999999	$2,778.32	1
5E217	LR115626	BRACKET - TURBOCHARGER	LR115626 BRACKET - TURBOCHARGER Upper / From: LH000001 / To: LH999999	$19.64	1
5E241A	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger / From: LH000001	$20.80	1
5E241B	LR094164	GASKET - EXHAUST PIPE	LR094164 GASKET - EXHAUST PIPE Outlet / From: LH000001	$16.59	1
5K291A	LR114108	BRACKET - EXHAUST PIPE MOUNTING	LR114108 BRACKET - EXHAUST PIPE MOUNTING Lower, To Engine / From: LH000001	$48.02	1
5K291B	LR114109	BRACKET - EXHAUST PIPE MOUNTING	LR114109 BRACKET - EXHAUST PIPE MOUNTING Lower / From: LH000001	$32.17	1
5K291C	LR133156	BRACKET - EXHAUST PIPE MOUNTING	LR133156 BRACKET - EXHAUST PIPE MOUNTING Front / From: LH000001	$33.89	1
5202	LR127655	CATALYTIC CONVERTER	LR127655 CATALYTIC CONVERTER From: LH000001 / To: LH855928	$1,313.69	1
5202	LR138045	CATALYTIC CONVERTER	LR138045 CATALYTIC CONVERTER From: LH855929	$1,287.92	1

Front Exhaust System (2.0L Aj20P4 Petrol High Pta, Eu6C Emission, Halewood (Uk), Eu6D - Final...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (2.0L AJ20P4 Petrol High PTA, EU6C Emission, Halewood (UK), EU6D - Final...

Add to Shopping Cart
