Name: Front Exhaust System (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

Front Exhaust System (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200...

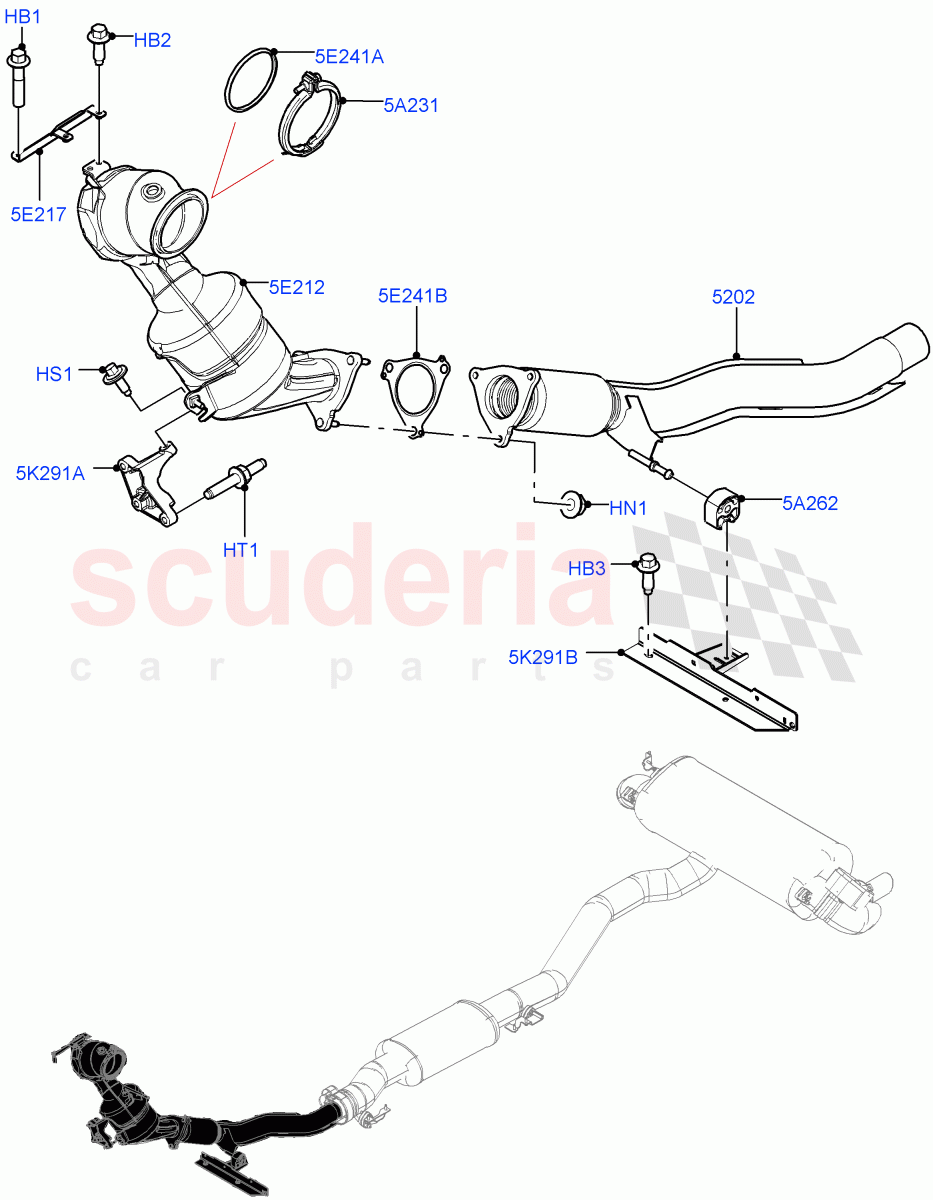

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108086	BOLT	$1.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$5.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094163	CATALYTIC CONVERTER	$1,027.27	To Order
	LR094445	CATALYTIC CONVERTER	$1,148.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$38.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$36.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097938	CATALYST AND PARTICLE FILTER	$2,138.12	To Order
	LR094161	CATALYTIC CONVERTER	$1,259.55	To Order
	LR112867	CATALYTIC CONVERTER	$1,536.29	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR094241	BRACKET - TURBOCHARGER	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094164	GASKET - EXHAUST PIPE	$16.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072210	BRACKET - EXHAUST PIPE MOUNTING	$49.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096062	BRACKET - EXHAUST PIPE MOUNTING	$55.81	To Order
	LR110457	BRACKET - EXHAUST PIPE MOUNTING	$56.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB108086	BOLT IN STOCK	FB108086 BOLT Hexagonal Head, M8 x 40MM, To Cylinder Head / From: HG379388 IN STOCK	$1.97	1
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Bracket, Hexagonal Head, M8 X 20MM, Upper / From: HG379388 IN STOCK	$1.42	2
HB3	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM, Rear / From: HG379388	$1.02	2
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 / From: HG379388 IN STOCK	$0.40	3
HS1	PYG500050	SCREW IN STOCK	PYG500050 SCREW Bracket, Lower, M8 X 20MM / From: HG379388 IN STOCK	$1.06	2
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: HG379388	$5.03	3
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST From: HG379388	$38.43	1
5A262	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER From: HG379388	$36.47	1
5E212	LR097938	CATALYST AND PARTICLE FILTER	LR097938 CATALYST AND PARTICLE FILTER Beijing 6 Petrol Emission / From: HG379388 / To: KG431218	$2,138.12	1
5E212	LR094161	CATALYTIC CONVERTER	LR094161 CATALYTIC CONVERTER Stage V European Emissions / From: HG347884 / To: KG446856	$1,259.55	1
5E212	LR112867	CATALYTIC CONVERTER	LR112867 CATALYTIC CONVERTER EU2 / From: KG446857	$1,536.29	1
5E212	LR117013	CATALYST AND PARTICLE FILTER	LR117013 CATALYST AND PARTICLE FILTER EU6C Emission / From: KG431218 / To: KG446857	$2,802.69	1
5E217	LR094241	BRACKET - TURBOCHARGER	LR094241 BRACKET - TURBOCHARGER Upper / From: HG379388	$20.29	1
5E241A	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER From: HG379388	$20.74	1
5E241B	LR094164	GASKET - EXHAUST PIPE	LR094164 GASKET - EXHAUST PIPE Outlet / From: HG379388	$16.54	1
5K291A	LR072210	BRACKET - EXHAUST PIPE MOUNTING	LR072210 BRACKET - EXHAUST PIPE MOUNTING Lower, To Engine / From: HG379388	$49.74	1
5K291B	LR096062	BRACKET - EXHAUST PIPE MOUNTING	LR096062 BRACKET - EXHAUST PIPE MOUNTING Rear / From: HG379388 / To: JG411675	$55.81	1
5K291B	LR110457	BRACKET - EXHAUST PIPE MOUNTING	LR110457 BRACKET - EXHAUST PIPE MOUNTING Rear / From: JG411675	$56.23	1
5202	LR094163	CATALYTIC CONVERTER	LR094163 CATALYTIC CONVERTER Instant Mobility System - High, With 7 Seat Configuration / From: HG379388	$1,027.27	1
5202	LR094445	CATALYTIC CONVERTER	LR094445 CATALYTIC CONVERTER Spare Wheel - Reduced Section Steel, With 7 Seat Configuration / From: HG379388	$1,148.96	1
