Front Exhaust System

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.03 To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD $1.43 IN STOCK
Photo Part No Description Price (each) Stock
FB108086 BOLT $1.97 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
PYG500050 SCREW $1.07 IN STOCK
Photo Part No Description Price (each) Stock
LR023448 STUD $5.04 To Order
Photo Part No Description Price (each) Stock
LR127655 CATALYTIC CONVERTER $1,312.65 To Order
LR138045 CATALYTIC CONVERTER $1,286.89 To Order
Photo Part No Description Price (each) Stock
LR106799 CLAMP - EXHAUST $38.51 To Order
LR140098 CLAMP - EXHAUST $17.63 To Order
Photo Part No Description Price (each) Stock
LR100224 INSULATOR - RUBBER $32.69 To Order
Photo Part No Description Price (each) Stock
LR115606 CATALYTIC CONVERTER $1,695.03 To Order
LR115607 CATALYTIC CONVERTER $2,286.29 To Order
Photo Part No Description Price (each) Stock
LR115626 BRACKET - TURBOCHARGER $19.63 To Order
Photo Part No Description Price (each) Stock
LR105411 GASKET - TURBOCHARGER $20.79 To Order
Photo Part No Description Price (each) Stock
LR094164 GASKET - EXHAUST PIPE $16.58 To Order
Photo Part No Description Price (each) Stock
LR114108 BRACKET - EXHAUST PIPE MOUNTING $47.98 To Order
Photo Part No Description Price (each) Stock
LR114109 BRACKET - EXHAUST PIPE MOUNTING $32.14 To Order
Photo Part No Description Price (each) Stock
LR133156 BRACKET - EXHAUST PIPE MOUNTING $33.86 To Order
View All

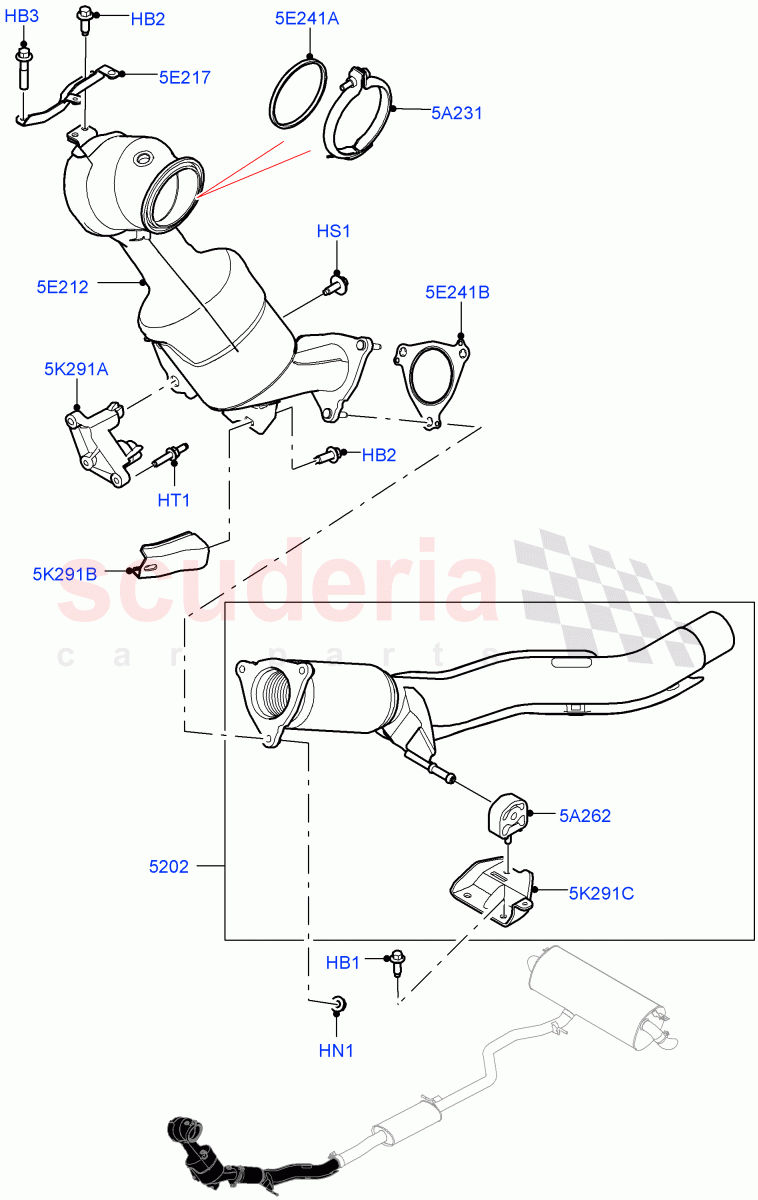

Front Exhaust System of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Bracket, Hexagonal Head, M8 X 20MM / From: LH000001 		$1.03 2
HB2 RYG500230
BOLT - HEX.HEAD
Hexagonal Head, M8 X 20MM / From: LH000001
IN STOCK 		$1.43 4
HB3 FB108086
BOLT
Hexagonal Head, M8 x 40MM, To Cylinder Head / From: LH000001
IN STOCK 		$1.97 1
HN1 FX108046
NUT - LOCKING
M8 / From: LH000001
IN STOCK 		$0.40 3
HS1 PYG500050
SCREW
Bracket, Lower, M8 X 20MM / From: LH000001
IN STOCK 		$1.07 2
HT1 LR023448
STUD
M8 X 30 + M8 X 16MM, To Engine / From: LH000001 		$5.04 3
5A231 LR106799
CLAMP - EXHAUST
Turbocharger / From: LH000001 / To: LH870357 		$38.51 1
5A231 LR140098
CLAMP - EXHAUST
Turbocharger / From: LH870358 		$17.63 1
5A262 LR100224
INSULATOR - RUBBER
Front / From: LH000001 		$32.69 1
5E212 LR115606
CATALYTIC CONVERTER
EU2 / From: LH000001 / To: LH999999 		$1,695.03 1
5E212 LR115607
CATALYTIC CONVERTER
Beijing 6 Petrol Emission / From: LH000001 / To: LH999999 		$2,286.29 1
5E217 LR115626
BRACKET - TURBOCHARGER
Upper / From: LH000001 / To: LH999999 		$19.63 1
5E241A LR105411
GASKET - TURBOCHARGER
Turbocharger / From: LH000001 		$20.79 1
5E241B LR094164
GASKET - EXHAUST PIPE
Outlet / From: LH000001 		$16.58 1
5K291A LR114108
BRACKET - EXHAUST PIPE MOUNTING
Lower, To Engine / From: LH000001 		$47.98 1
5K291B LR114109
BRACKET - EXHAUST PIPE MOUNTING
Lower / From: LH000001 		$32.14 1
5K291C LR133156
BRACKET - EXHAUST PIPE MOUNTING
Front / From: LH000001 		$33.86 1
5202 LR127655
CATALYTIC CONVERTER
From: LH000001 / To: LH855928 		$1,312.65 1
5202 LR138045
CATALYTIC CONVERTER
From: LH855929 		$1,286.89 1
