Name: Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)
Rating: 4.3 (1 reviews)

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

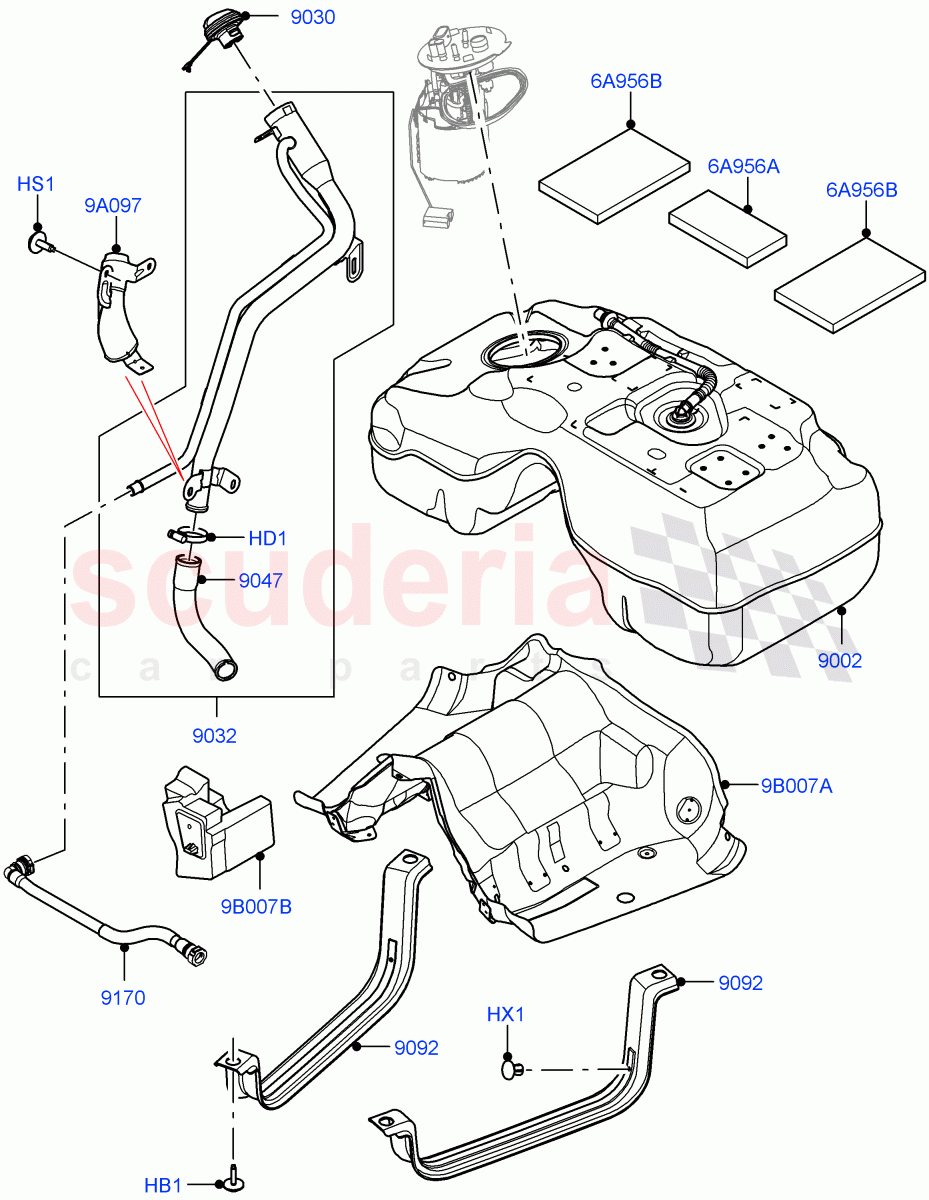

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139184	TANK - FUEL	$1,195.02	To Order
	LR139183	TANK - FUEL	$1,018.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138718	CAP - FUEL TANK FILLER	$39.30	To Order
	LR138720	CAP - FUEL TANK FILLER	$39.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126523	PIPE - FUEL FILLER	$145.58	To Order
	LR126521	PIPE - FUEL FILLER	$134.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126522	HOSE - FILLER PIPE	$49.60	To Order
	LR126524	HOSE - FILLER PIPE	$45.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126572	STRAP - FUEL TANK	$58.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126505	HOSE - VENT	$50.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126562	SHIELD	$49.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126577	FOAM PAD - ENERGY ABSORBING	$14.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126578	FOAM PAD - ENERGY ABSORBING	$22.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126573	SHIELD	$316.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135602	SHIELD	$33.91	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: MH000001	$3.96	4
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: MH000001	$6.12	1
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex, Shield / From: MH000001 IN STOCK	$1.39	3
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MH000001	$1.03	2
6A956A	LR126577	FOAM PAD - ENERGY ABSORBING	LR126577 FOAM PAD - ENERGY ABSORBING Middle / From: MH000001	$14.69	1
6A956B	LR126578	FOAM PAD - ENERGY ABSORBING	LR126578 FOAM PAD - ENERGY ABSORBING RH/LH / From: MH000001	$22.59	2
9A097	LR126562	SHIELD	LR126562 SHIELD Filler Pipe / From: MH000001	$49.17	1
9B007A	LR126573	SHIELD	LR126573 SHIELD Main / From: MH000001	$316.72	1
9B007B	LR135602	SHIELD	LR135602 SHIELD From: MH000001	$33.91	1
9002	LR139184	TANK - FUEL	LR139184 TANK - FUEL Pet Tank W/O Leak Det - Std Filter / From: MH000001	$1,195.02	1
9002	LR139183	TANK - FUEL	LR139183 TANK - FUEL Petrol Tank With Leak Detection / From: MH000001	$1,018.18	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: MH000001	$39.30	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: MH000001	$39.30	1
9032	LR126523	PIPE - FUEL FILLER	LR126523 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: MH000001	$145.58	1
9032	LR126521	PIPE - FUEL FILLER	LR126521 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL / From: MH000001	$134.78	1
9047	LR126522	HOSE - FILLER PIPE	LR126522 HOSE - FILLER PIPE Fuel Tank Filler Neck - DMTL / From: MH000001	$49.60	1
9047	LR126524	HOSE - FILLER PIPE	LR126524 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / From: MH000001	$45.49	1
9092	LR126572	STRAP - FUEL TANK	LR126572 STRAP - FUEL TANK RH/LH / From: MH000001	$58.06	2
9170	LR126505	HOSE - VENT	LR126505 HOSE - VENT From: MH000001	$50.81	1
