Name: Carbon Canister (1.5L AJ20P3 Petrol High, Changsu (China)) ((V) FROMKG446857)
Rating: 4.6 (1 reviews)

View All

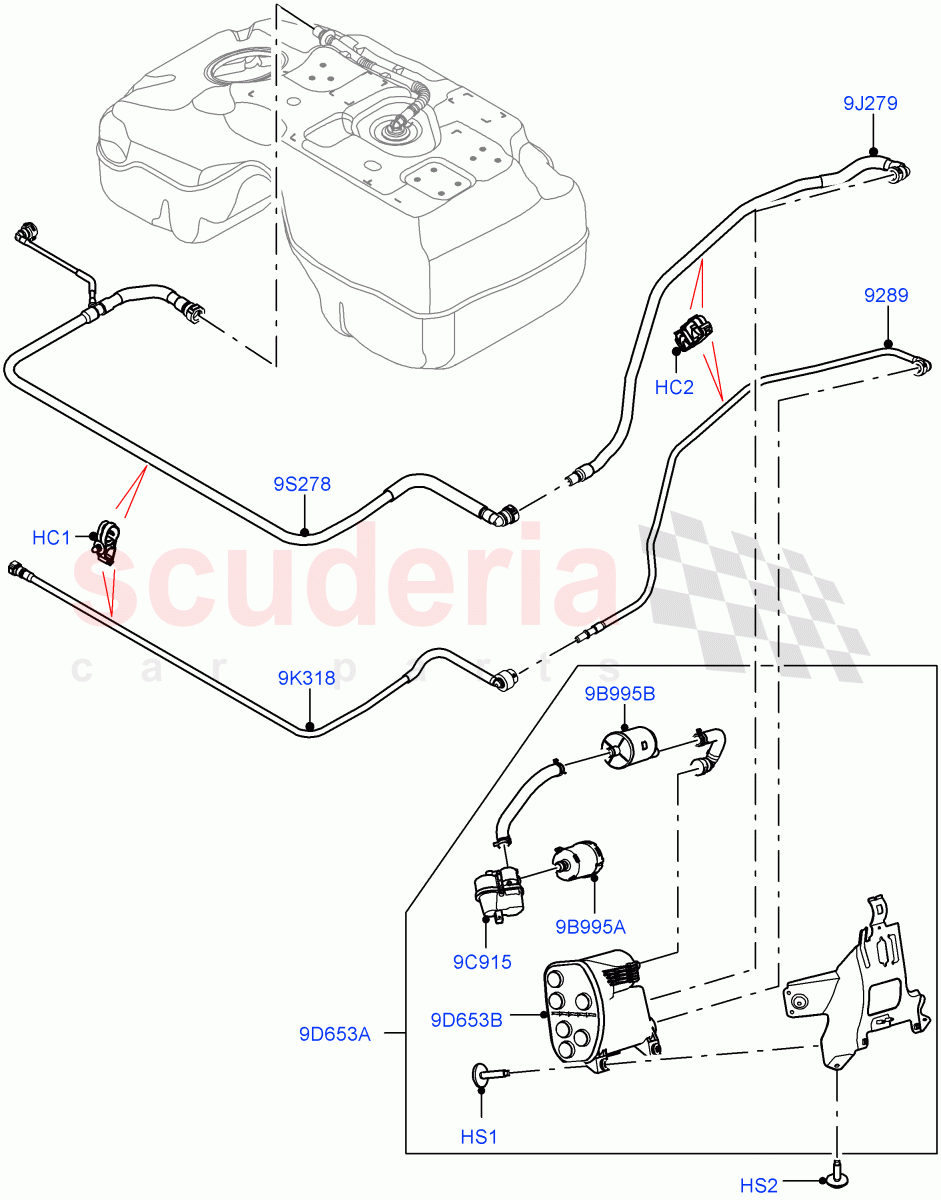

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR126510	TUBE - FUEL	$53.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$191.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126506	TUBE - FUEL VAPOUR	$63.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126511	TUBE - FUEL VAPOUR	$58.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126507	TUBE - FUEL VAPOUR	$58.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121787	FILTER - FUEL	$154.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121786	FILTER - FUEL	$89.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126509	CANNISTER - FUEL VAPOUR STORE	$462.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145278	RESERVOIR	$253.42	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: KG446857	$1.22	6
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: KG446857	$4.43	3
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Charcoal Cannister, Hexagonal Head, M6X30 / From: KG446857	$4.20	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: KG446857 IN STOCK	$0.96	2
9B995A	LR121787	FILTER - FUEL	LR121787 FILTER - FUEL Charcoal Cannister, Lower / From: KG446857	$154.17	1
9B995B	LR121786	FILTER - FUEL	LR121786 FILTER - FUEL Charcoal Cannister, Upper / From: KG446857	$89.94	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister / From: KG446857	$191.90	1
9D653A	LR126509	CANNISTER - FUEL VAPOUR STORE	LR126509 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: KG446857	$462.16	1
9D653B	LR145278	RESERVOIR	LR145278 RESERVOIR Charcoal Cannister / From: KG422269	$253.42	1
9J279	LR126506	TUBE - FUEL VAPOUR	LR126506 TUBE - FUEL VAPOUR Fuel Tank Ventilation Pipe / From: KG446857	$63.69	1
9K318	LR126511	TUBE - FUEL VAPOUR	LR126511 TUBE - FUEL VAPOUR Lower / From: KG446857	$58.46	1
9S278	LR126507	TUBE - FUEL VAPOUR	LR126507 TUBE - FUEL VAPOUR Outlet / From: KG446857	$58.42	1
9289	LR126510	TUBE - FUEL	LR126510 TUBE - FUEL From Carbon Canister To Fuel Lines / From: KG446857	$53.48	1

Carbon Canister (1.5L Aj20P3 Petrol High, Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
