Fuel Lines (1.5L Aj20P3 Petrol High, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Lines (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR089197 STUD $4.00 To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES $80.43 To Order
Photo Part No Description Price (each) Stock
LR139949 PIPE - FUEL $179.02 To Order
Photo Part No Description Price (each) Stock
LR139954 PIPE - FUEL $125.63 To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL $190.40 To Order
Photo Part No Description Price (each) Stock
LR126845 BRACKET - FUEL TUBE SUPPORT $33.10 To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES $44.24 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.60 To Order
Photo Part No Description Price (each) Stock
LR140537 TUBE - FUEL SUPPLY AND VAPOUR $200.77 To Order
Photo Part No Description Price (each) Stock
LR126491 TUBE - FUEL SUPPLY AND VAPOUR $182.11 To Order
LR162697 TUBE - FUEL VAPOUR $200.91 To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY $42.72 To Order
Photo Part No Description Price (each) Stock
LR126566 TUBE - FUEL SUPPLY $44.76 To Order
View All

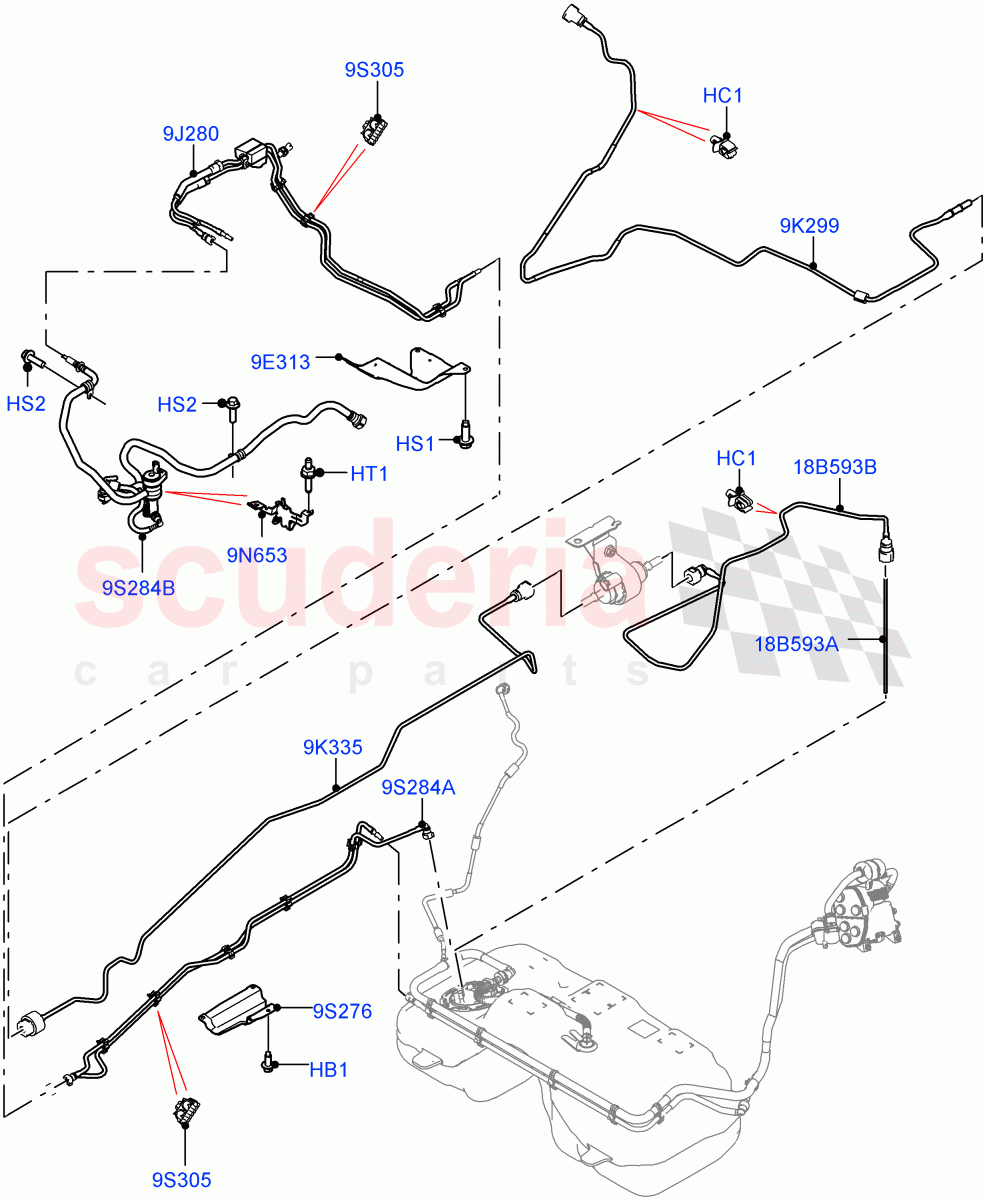

Fuel Lines (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: MH000001 		$0.67 3
HC1 LR113126
CLIP - BRAKE PIPE
Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: MH000001 		$0.61 6
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: MH000001 		$0.61 3
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MH000001
IN STOCK 		$1.60 2
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: MH000001 		$4.00 1
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: MH000001 		$80.43 1
9J280 LR139949
PIPE - FUEL
Front / From: MH000001 		$179.02 1
9K299 LR139954
PIPE - FUEL
Fuel Fired Heater With Park Heat / To Fuel Fired Heater / From: MH000001 		$125.63 1
9K335 LR115338
TUBE - FUEL
Fuel Heater W/Pk Heat With Remote / Pump To Heater / From: MH000001 		$190.40 1
9N653 LR126845
BRACKET - FUEL TUBE SUPPORT
Purge Valve To Carrier / From: MH000001 		$33.10 1
9S276 LR115399
SHIELD - FUEL TUBES
Rear / From: MH000001 		$44.24 1
9S284A LR140537
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: MH000001 		$200.77 1
9S284B LR126491
TUBE - FUEL SUPPLY AND VAPOUR
Front / From: MH000001 / To: NH905936 		$182.11 1
9S284B LR162697
TUBE - FUEL VAPOUR
Front / From: NH905937 		$200.91 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: MH000001 		$3.60 1
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
Fuel Heater W/Pk Heat With Remote / In Tank / From: MH000001 		$42.72 1
18B593B LR126566
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Tank To Pump / From: MH000001 		$44.76 1
