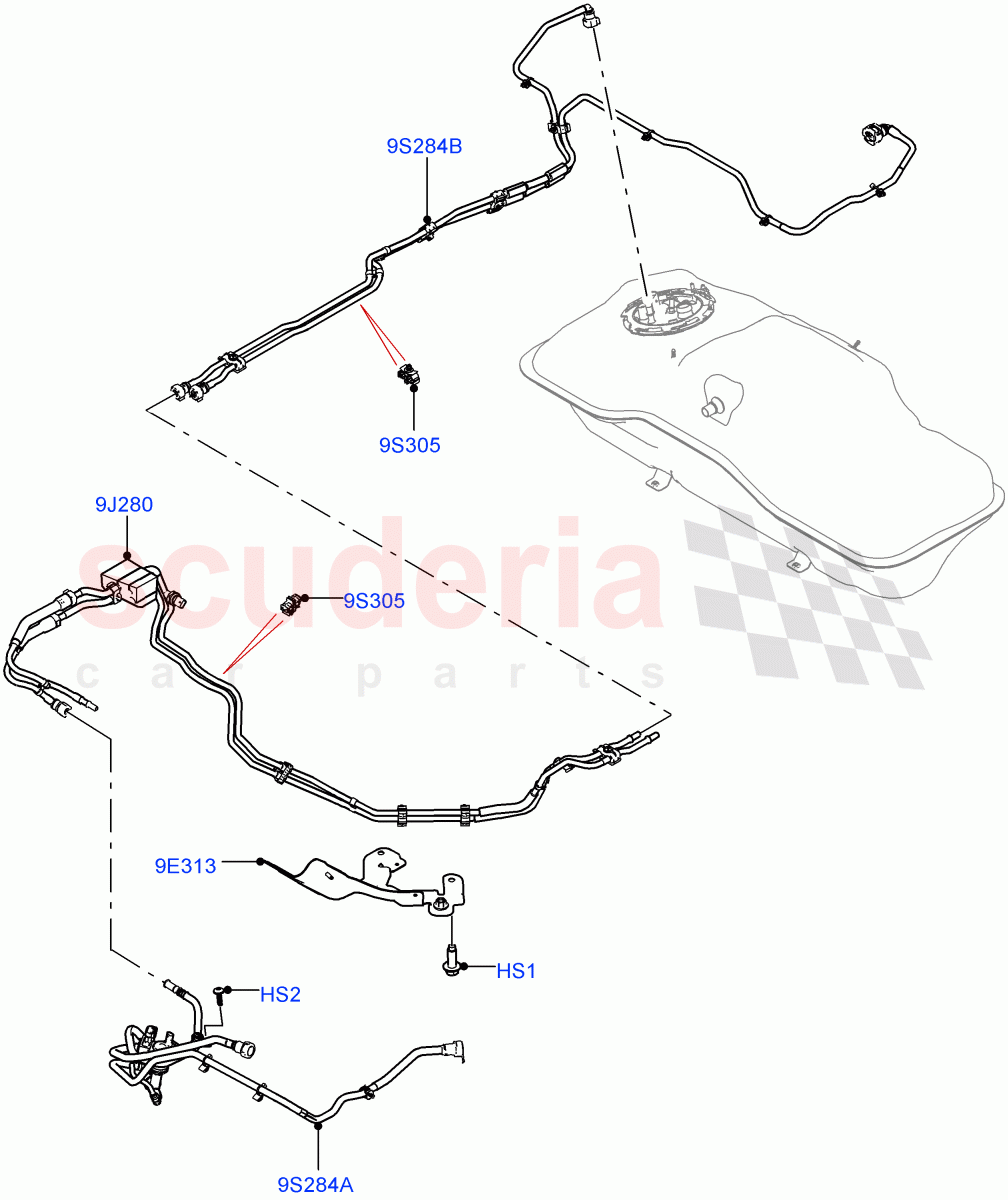

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126054	SCREW	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135205	SHIELD - FUEL TUBES	$323.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135204	PIPE - FUEL	$284.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125411	TUBE - FUEL VAPOUR	$214.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140312	TUBE - FUEL SUPPLY AND VAPOUR	$208.68	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: KG446857	$0.61	3
HS2	LR126054	SCREW	LR126054 SCREW M6 X 20MM / From: KG446857	$5.36	1
9E313	LR135205	SHIELD - FUEL TUBES	LR135205 SHIELD - FUEL TUBES From: KG446857	$323.36	1
9J280	LR135204	PIPE - FUEL	LR135204 PIPE - FUEL Front / From: KG446857	$284.08	1
9S284A	LR125411	TUBE - FUEL VAPOUR	LR125411 TUBE - FUEL VAPOUR Front, With Vapour Purge Valve / From: KG446857	$214.77	1
9S284B	LR140312	TUBE - FUEL SUPPLY AND VAPOUR	LR140312 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: KG446857	$208.68	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch) / From: KG446857	$3.60	9
