Lower Body Guards And Shields

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Lower Body Guards And Shields

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR069126 SHIELD - FRONT CROSSMEMBER $596.72 To Order
LR069126 SHIELD - FRONT CROSSMEMBER $596.72 To Order
Photo Part No Description Price (each) Stock
LR069143 GUARD - BODY SIDE $437.48 To Order
LR069142 GUARD - BODY SIDE $307.93 To Order
Photo Part No Description Price (each) Stock
LR069140 GUARD - BODY SIDE $928.28 To Order
LR069141 GUARD - BODY SIDE $901.21 To Order
LR069144 GUARD - BODY SIDE $928.28 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR078877 BOLT $2.20 To Order
Photo Part No Description Price (each) Stock
LR078876 BOLT $6.60 To Order
Photo Part No Description Price (each) Stock
FC112326 BOLT $4.90 IN STOCK
Photo Part No Description Price (each) Stock
FC112246 BOLT $5.26 To Order
Photo Part No Description Price (each) Stock
FY112056 NUT - HEX. $1.95 IN STOCK
Photo Part No Description Price (each) Stock
RYH500480 NUT AND WASHER - HEX. $3.81 IN STOCK
Photo Part No Description Price (each) Stock
LR078411 SPACER - STRIKER $10.58 To Order
Photo Part No Description Price (each) Stock
LR078414 SPACER - STRIKER $13.27 To Order
Photo Part No Description Price (each) Stock
LR078415 SPACER - STRIKER $16.03 To Order
Photo Part No Description Price (each) Stock
LR078416 SPACER - STRIKER $8.06 To Order
Photo Part No Description Price (each) Stock
LR078417 SPACER - STRIKER $9.13 To Order
View All

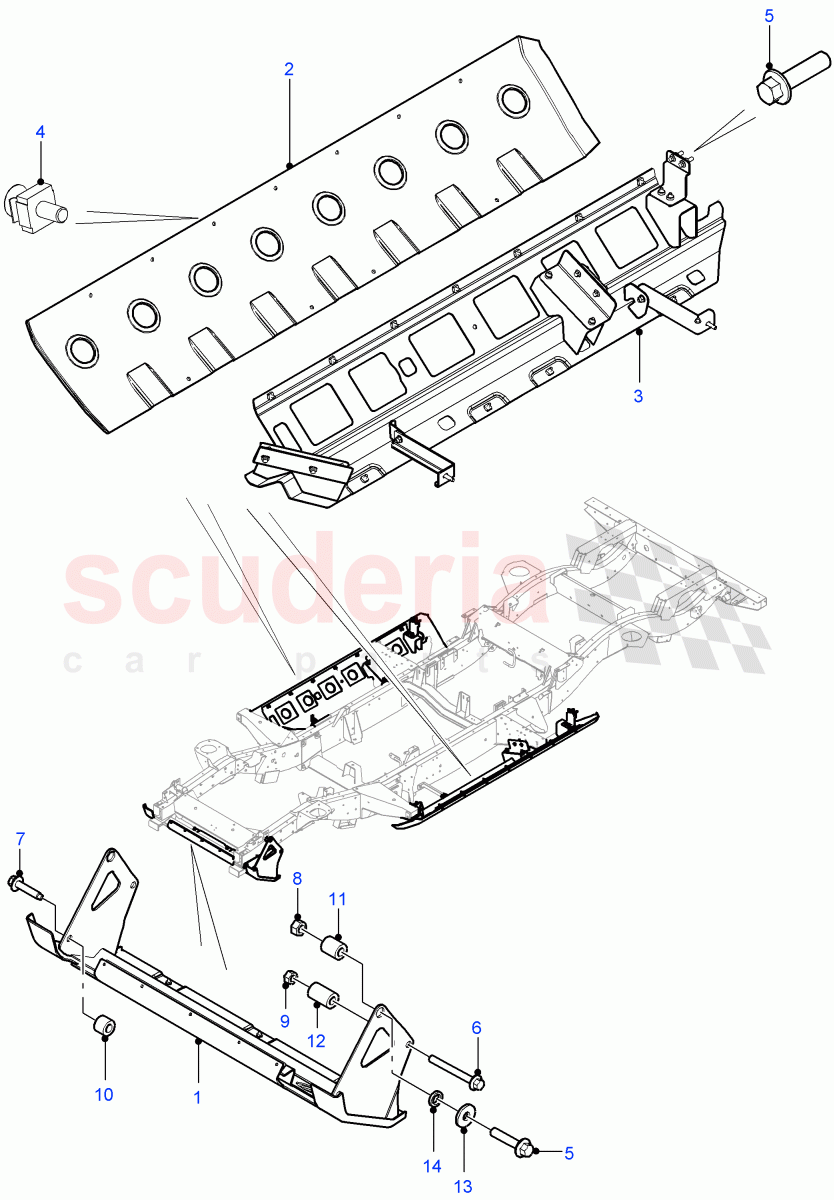

Lower Body Guards And Shields of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR069126
SHIELD - FRONT CROSSMEMBER
Front Black Mudflap With Black Logo / From: GA480904 		$596.72 1
1 LR069126
SHIELD - FRONT CROSSMEMBER
Front Black Mudflap With Black Logo / From: GA480904 		$596.72 1
2 LR069143
GUARD - BODY SIDE
110" Wheelbase, With Underbody Protection / RH/LH 		$437.48 2
2 LR069142
GUARD - BODY SIDE
90" Wheelbase, With Underbody Protection / RH/LH 		$307.93 2
3 LR069140
GUARD - BODY SIDE
90" Wheelbase, With Underbody Protection / RH 		$928.28 1
3 LR069141
GUARD - BODY SIDE
110" Wheelbase, With Underbody Protection / RH 		$901.21 1
3 LR069144
GUARD - BODY SIDE
90" Wheelbase, With Underbody Protection / LH 		$928.28 1
3 LR069145
GUARD - BODY SIDE
110" Wheelbase, With Underbody Protection / LH 		$928.28 1
4 LR078877
BOLT
M8 X 20MM 		$2.20 1
5 LR078876
BOLT
M10 x 140MM 		$6.60 1
6 FC112326
BOLT
M12 x 160MM
IN STOCK 		$4.90 1
7 FC112246
BOLT
M12 x 120MM 		$5.26 1
8 FY112056
NUT - HEX.
M12
IN STOCK 		$1.95 1
9 RYH500480
NUT AND WASHER - HEX.
M10
IN STOCK 		$3.81 1
10 LR078411
SPACER - STRIKER
19.05MM 		$10.58 2
11 LR078414
SPACER - STRIKER
30mm long 		$13.27 2
12 LR078415
SPACER - STRIKER
40MM 		$16.03 2
13 LR078416
SPACER - STRIKER
5MM 		$8.06 6
14 LR078417
SPACER - STRIKER
5MM 		$9.13 6
