Name: Hood And Related Parts
Rating: 4.6 (1 reviews)

Hood And Related Parts of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Hood And Related Parts

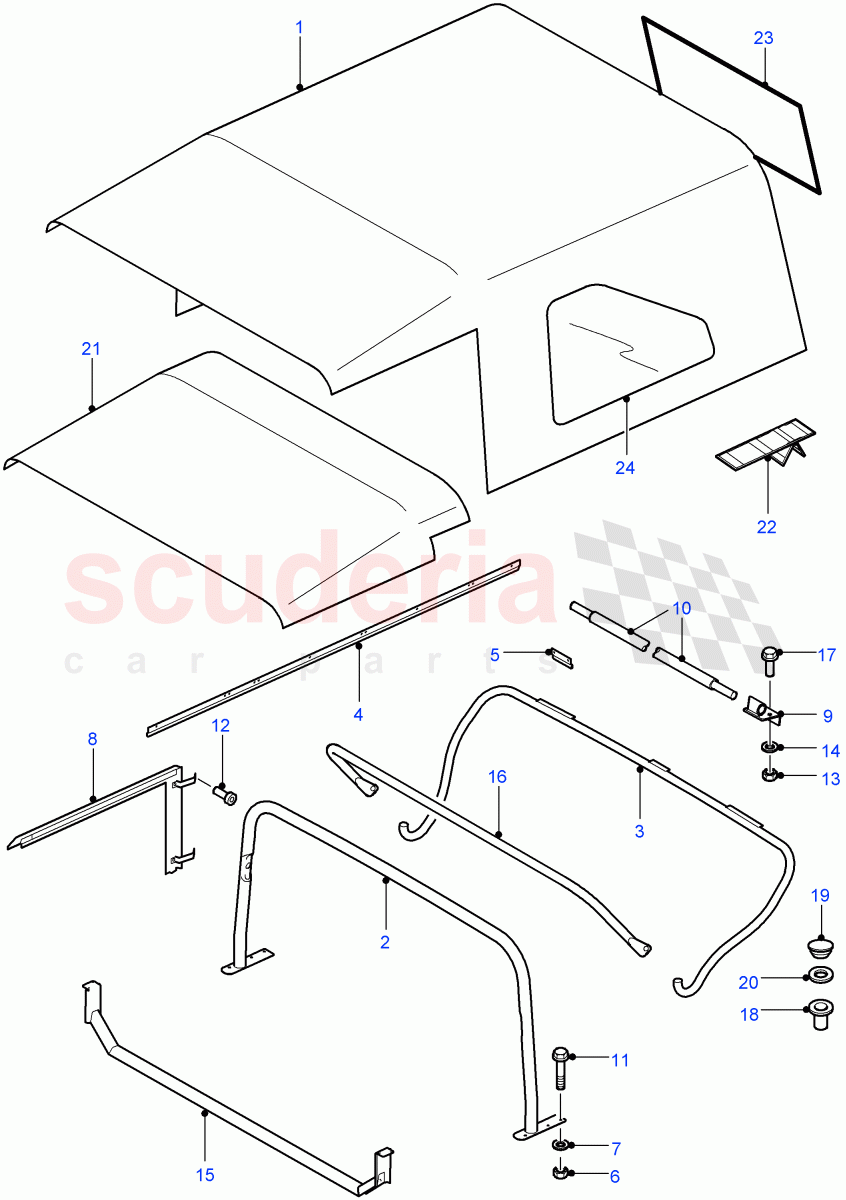

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008923	SOFT TOP	$3,557.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010381	BAR - ROLL	$1,679.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010519	BAR - ROLL	$1,679.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008918	BRACKET	$141.34	To Order
	LR008919	BRACKET	$141.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008920	BRACKET	$87.77	To Order
	LR008921	BRACKET	$87.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	$0.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010369	DRAIN	$582.48	To Order
	LR010370	DRAIN	$582.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008952	RETAINER - SEAL	$79.06	To Order
	LR010649	RETAINER - SEAL	$74.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008953	RETAINER - SEAL	$362.60	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500050	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500950	SCREW	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR009167	FINISHER	$351.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010518	BAR - ROLL	$1,581.79	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500950	SCREW	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR012195	INSERT	$21.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012196	PLUG	$15.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012197	RESTRICTOR	$6.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014748	SOFT TOP	$4,459.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010648	STRAP - SECURING	$277.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010644	WINDOW - BACK	$1,347.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010622	GLASS - QUARTER WINDOW	$1,129.02	To Order
	LR010642	GLASS - QUARTER WINDOW	$1,074.22	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR008923	SOFT TOP	LR008923 SOFT TOP Soft Top	$3,557.24	1
2	LR010381	BAR - ROLL	LR010381 BAR - ROLL Front	$1,679.61	1
3	LR010519	BAR - ROLL	LR010519 BAR - ROLL Hinged, Rear	$1,679.61	1
4	LR008918	BRACKET	LR008918 BRACKET RH	$141.34	1
4	LR008919	BRACKET	LR008919 BRACKET LH	$141.34	1
5	LR008920	BRACKET	LR008920 BRACKET RH, Rear	$87.77	1
5	LR008921	BRACKET	LR008921 BRACKET LH, Rear	$87.77	1
6	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD Flanged, M8 IN STOCK	$1.12	6
7	WA108056	WASHER IN STOCK	WA108056 WASHER M8 IN STOCK	$0.87	6
8	LR010369	DRAIN	LR010369 DRAIN RH	$582.48	1
8	LR010370	DRAIN	LR010370 DRAIN LH	$582.48	1
9	LR008952	RETAINER - SEAL	LR008952 RETAINER - SEAL RH, Hood - Rear	$79.06	1
9	LR010649	RETAINER - SEAL	LR010649 RETAINER - SEAL LH, Hood - Rear	$74.94	1
10	LR008953	RETAINER - SEAL	LR008953 RETAINER - SEAL Hood - Rear	$362.60	1
11	VYP500050	SCREW	VYP500050 SCREW M8 x 25	$0.47	6
12	RYP500950	SCREW IN STOCK	RYP500950 SCREW M6 X 16MM IN STOCK	$0.67	3
13	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. M6 IN STOCK	$0.68	1
14	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR M6 IN STOCK	$2.12	1
15	LR009167	FINISHER	LR009167 FINISHER	$351.03	1
16	LR010518	BAR - ROLL	LR010518 BAR - ROLL Rear, Small	$1,581.79	1
17	RYP500950	SCREW IN STOCK	RYP500950 SCREW M6 X 16MM IN STOCK	$0.67	1
18	LR012195	INSERT	LR012195 INSERT Plastic	$21.86	2
19	LR012196	PLUG	LR012196 PLUG	$15.05	2
20	LR012197	RESTRICTOR	LR012197 RESTRICTOR M6	$6.59	2
21	LR014748	SOFT TOP	LR014748 SOFT TOP Soft Top / Bimini - Short Hood	$4,459.04	1
22	LR010648	STRAP - SECURING	LR010648 STRAP - SECURING	$277.92	1
23	LR010644	WINDOW - BACK	LR010644 WINDOW - BACK	$1,347.90	1
24	LR010622	GLASS - QUARTER WINDOW	LR010622 GLASS - QUARTER WINDOW RH	$1,129.02	1
24	LR010642	GLASS - QUARTER WINDOW	LR010642 GLASS - QUARTER WINDOW LH	$1,074.22	1

Hood And Related Parts

Land Rover Defender (2007-2016)

Land Rover Defender (2007-2016) - Hood And Related Parts

Add to Shopping Cart
