Roll Cage of Land Rover Land Rover Defender (2007-2016)

View All

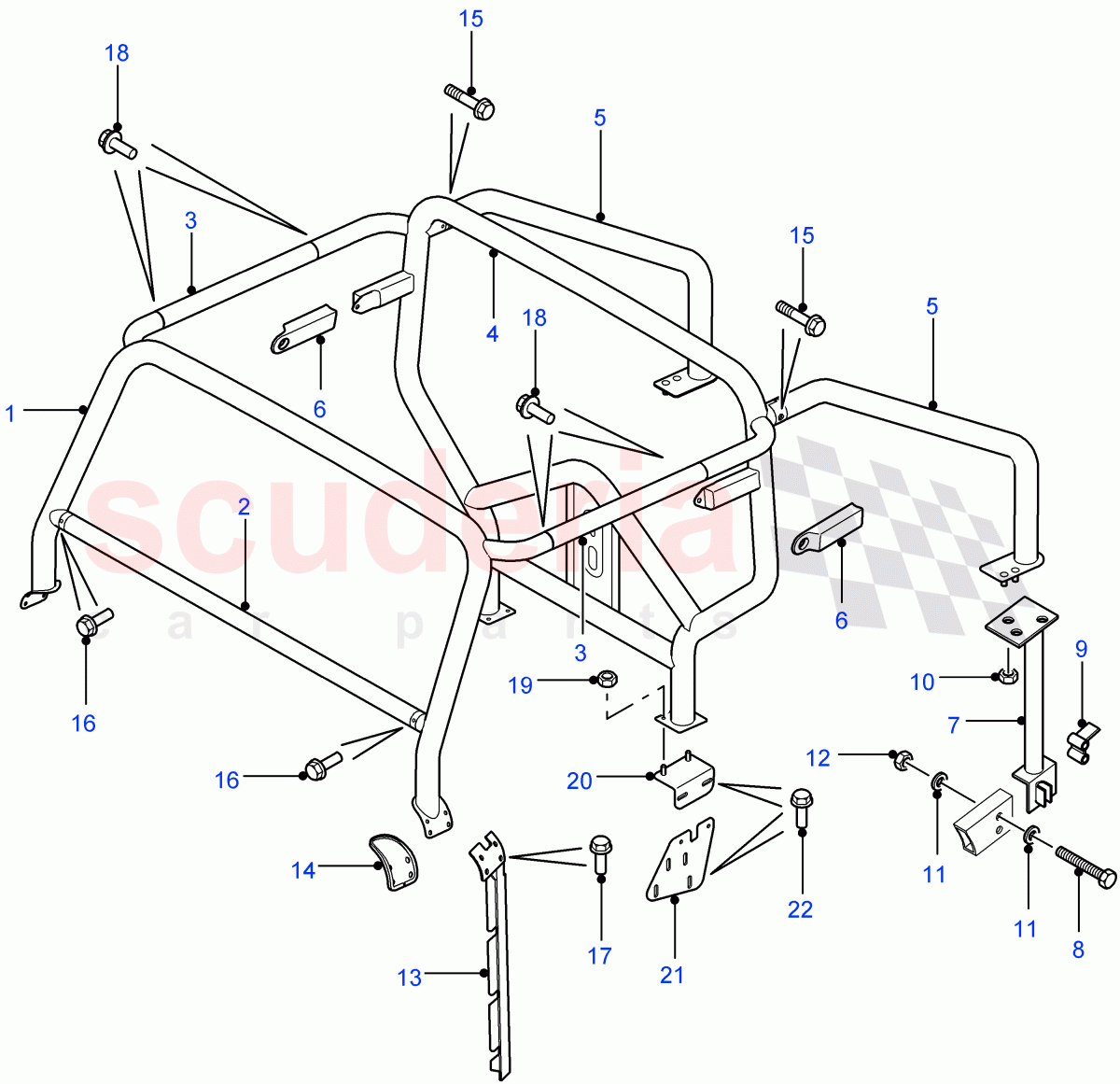

Land Rover Defender (2007-2016) - Roll Cage

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010378	BAR - ROLL	$3,123.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010379	BAR - ROLL	$1,549.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008945	BAR - ROLL	$389.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010382	HOOP	$5,577.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010380	BAR - ROLL	$1,680.48	To Order
	LR008941	BAR - ROLL	$797.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009147	COVER	$143.28	To Order

Photo	Part No	Description	Price (each)	Stock
	EIO500020	TUBE	$112.02	To Order
	EIO500030	TUBE	$112.02	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501140	BOLT - HEX.HEAD	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	KVX000020	SPACER	$69.27	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500450	NUT AND WASHER - HEX.	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044352	WASHER	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009179	REINFORCEMENT - BODYSIDE	$210.73	To Order
	LR010159	REINFORCEMENT - BODYSIDE	$154.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008983	PLUG	$40.16	To Order

Photo	Part No	Description	Price (each)	Stock
	BYG500120	BOLT	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	BYG500120	BOLT	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500690	SCREW	$1.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYP500050	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500450	NUT AND WASHER - HEX.	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008915	BRACKET	$42.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010531	BRACKET	$50.88	To Order
	LR010734	BRACKET	$47.01	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501010	SCREW AND WASHER	$1.21	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR010378	BAR - ROLL	LR010378 BAR - ROLL Front Screen	$3,123.15	1
2	LR010379	BAR - ROLL	LR010379 BAR - ROLL Front Screen	$1,549.98	1
3	LR008945	BAR - ROLL	LR008945 BAR - ROLL RH/LH	$389.06	2
4	LR010382	HOOP	LR010382 HOOP Rear	$5,577.73	1
5	LR010380	BAR - ROLL	LR010380 BAR - ROLL RH	$1,680.48	1
5	LR008941	BAR - ROLL	LR008941 BAR - ROLL LH	$797.48	1
6	LR009147	COVER	LR009147 COVER Black, Bracket, Seat belt, Top	$143.28	2
7	EIO500020	TUBE	EIO500020 TUBE RH, Rear	$112.02	1
7	EIO500030	TUBE	EIO500030 TUBE LH, Rear	$112.02	1
8	RYP501140	BOLT - HEX.HEAD	RYP501140 BOLT - HEX.HEAD M10 x 110, Torx Drive	$3.99	4
9	KVX000020	SPACER	KVX000020 SPACER	$69.27	2
10	RYH500450	NUT AND WASHER - HEX. IN STOCK	RYH500450 NUT AND WASHER - HEX. M8 IN STOCK	$0.77	2
11	LR044352	WASHER	LR044352 WASHER	$1.37	8
12	FY110046	NUT - HEX.	FY110046 NUT - HEX.	$2.79	4
13	LR009179	REINFORCEMENT - BODYSIDE	LR009179 REINFORCEMENT - BODYSIDE RH, Front	$210.73	1
13	LR010159	REINFORCEMENT - BODYSIDE	LR010159 REINFORCEMENT - BODYSIDE LH, Front	$154.48	1
14	LR008983	PLUG	LR008983 PLUG Front wing	$40.16	2
15	BYG500120	BOLT	BYG500120 BOLT M8 x 50MM	$2.31	2
16	BYG500120	BOLT	BYG500120 BOLT M8 x 50MM	$2.31	2
17	RYG500690	SCREW IN STOCK	RYG500690 SCREW M8 x 18MM IN STOCK	$1.76	8
18	VYP500050	SCREW	VYP500050 SCREW M8 X 25MM	$0.47	4
19	RYH500450	NUT AND WASHER - HEX. IN STOCK	RYH500450 NUT AND WASHER - HEX. M8 IN STOCK	$0.77	4
20	LR008915	BRACKET	LR008915 BRACKET Mounting, Rear	$42.20	2
21	LR010531	BRACKET	LR010531 BRACKET RH, Mounting, Rear	$50.88	1
21	LR010734	BRACKET	LR010734 BRACKET LH, Mounting, Rear	$47.01	1
22	RYG501010	SCREW AND WASHER IN STOCK	RYG501010 SCREW AND WASHER M8 X 25MM IN STOCK	$1.21	4
